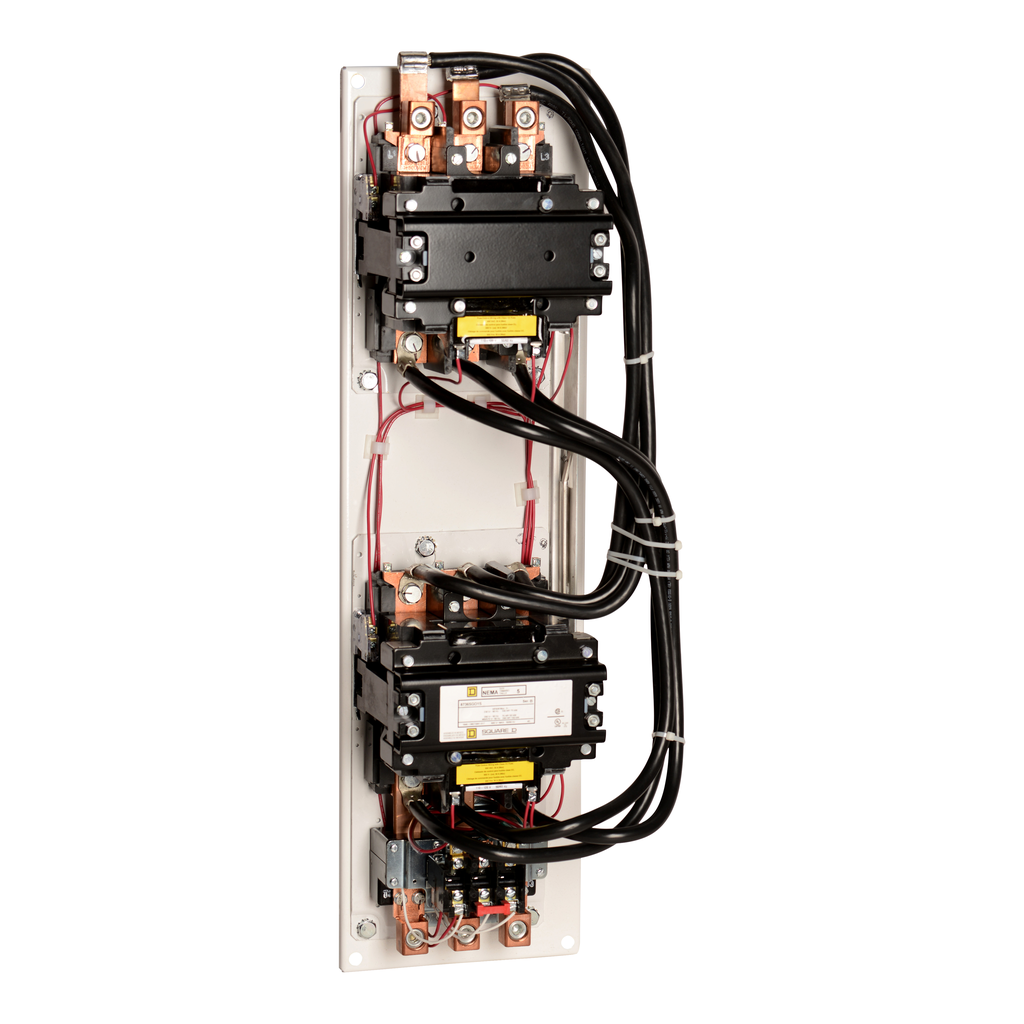

8736SGO1V02S – NEMA Starter, Type S, reversing, vertical, Size 5, 270A, 200 HP at 575 VAC, 10 kA SCCR, 3 phase, 3 pole, melting alloy overload, 120 VAC coil, open
8736SGO1V02S
NEMA Starter, Type S, reversing, vertical, Size 5, 270A, 200 HP at 575 VAC, 10 kA SCCR, 3 phase, 3 pole, melting alloy overload, 120 VAC coil, open

Type S NEMA reversing magnetic starters are used for full voltage starting, stopping, and reversing AC squirrel cage motors. NEMA 8736 reversing starters are available in NEMA Sizes 00 to 7 and have ratings up to 810 amperes. NEMA reversing starters consist of two 8502S NEMA contactors that are mechanically and electrically interlocked and an overload relay. Sizes 0-5 reversing starters are available in either horizontal or vertical arrangements. This reversing starter is arranged vertically. This 3 pole NEMA Size 5 reversing starter has an 270 ampere rating. This three phase NEMA Size 5 reversing starter has 75 HP at 200 VAC, 100 HP at 230 VAC and 200 HP at 460 and 575 VAC ratings. This reversing NEMA motor starter has a melting alloy type overload relay that uses Type B thermal units to sense over current conditions. This NEMA starter has a 10 kA maximum SCCR (Short Circuit Current Rating) per UL508A when protected by an appropriate circuit breaker or fuse. Type S motor starters are available with replaceable coils in a wide variety of voltages. This starter has a 110/120 VAC 50/60 Hz operating coil wired for separate control. This NEMA reversing starter is an open device without an enclosure. This starter is 39.16 inches tall, 10.75 inches wide and 9.38 inches deep. A wide variety of accessories are available for Type S starters. Type S reversing NEMA motor starters are UL listed and CSA certified.

Brand: Schneider Electric

Add to Quote Catalogue
Specifications
Product Certifications
  • UL Listed
  • CSA
Nema Degree Of Protection not rated (open device)
Warranty 18 months
China Rohs Regulation Product out of China RoHS scope. Substance declaration for your information.
Eu Rohs Directive Not compliant
California Proposition 65 WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Local Signalling without pilot light
Thermal Overload Type melting alloy 3
Installation Direction vertical
Height 994.66 mm
Auxiliary Contact Composition without
Nema Size 5
[Uc] Control Circuit Voltage
  • 110 V AC 50 Hz
  • 120 V AC 60 Hz
Poles Description 3P
Rated Power In Hp
  • 75 HP 200 V AC
  • 100 HP 230 V AC
  • 200 HP 460 V AC
  • 200 HP 575 V AC
Electrical Connection screw clamp terminals
Line Rated Current 270 A
Control Circuit separate control circuit
Width 273.05 mm
Depth 238.25 mm
Control Units no control units
Phase 3 phase
Wiring Mode 3 wires
[Ue] Rated Operational Voltage 600 V AC
Country of Origin Mexico
Width 273.05 mm
Height 994.66 mm
Motor Starter Type reversing
Range Of Product S
Product Or Component Type starter
