8702SEO2V02S

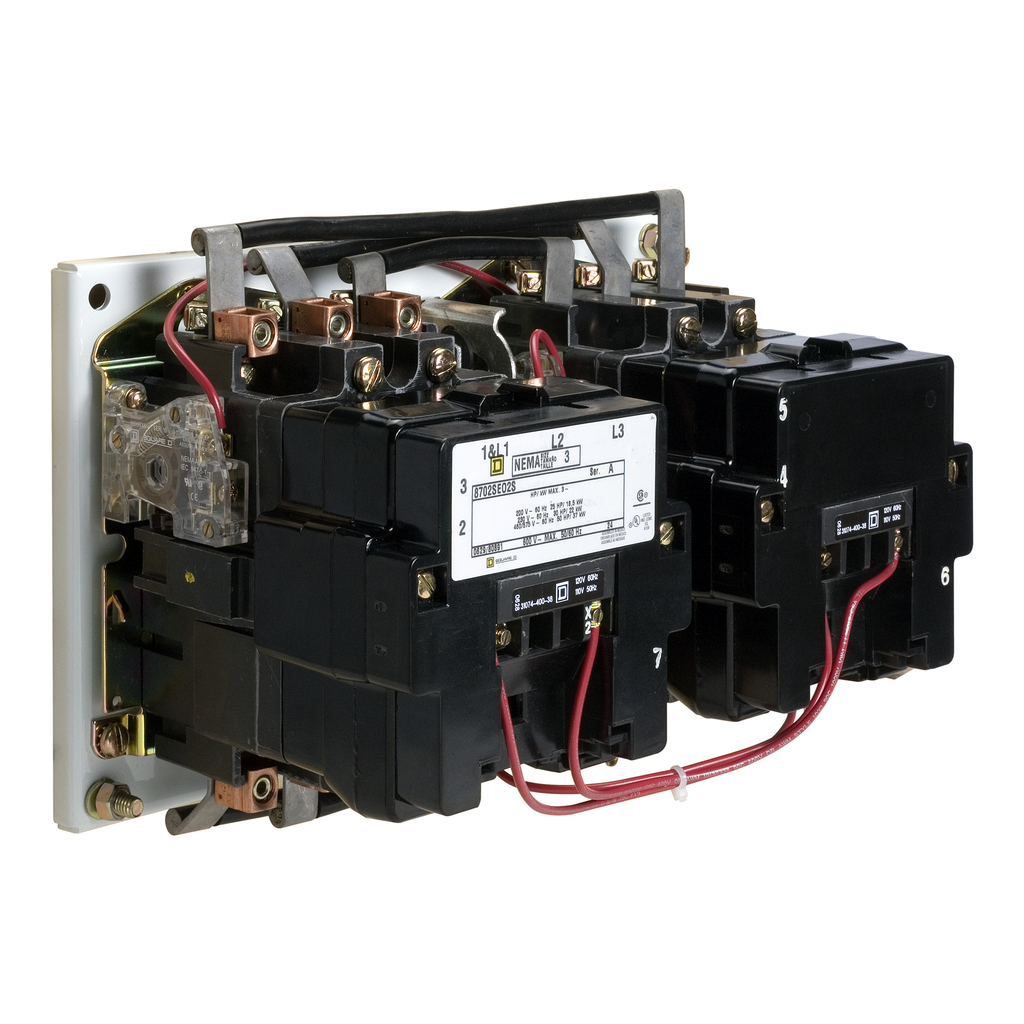

NEMA Contactor, Type S, reversing, horizontal, Size 3, 90A, 50HP at 575VAC, 3 phase, up to 100kA, 3 pole, 120VAC coil, open style
Square D 8702SEO2V02S reversing magnetic contactor, NEMA Size 3, 90 amperes maximum at 600 VAC, 3 pole, with 110/120 VAC, 50/60 Hz operating coil, open style. UL Listed, CSA Certified, CE Marked, Inductive and resistive ratings, variety of operating coil voltages, replaceable coils and contacts, variety of enclosure. S and field addable accessories available. Simple, Common catalog numbers, standardized ratings, and a full range of field-installable accessories make product selection, installation and maintenance easier than ever. Common Design Features, Mounting holes, door trim, and handle accessories.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Certifications |
|
|---|---|
| Nema Degree Of Protection | not rated (open device) |
| Warranty | 18 months |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Eu Rohs Directive | Not compliant |
| Height | 202.44 mm |
| Nema Size | 3 |
| [Uc] Control Circuit Voltage |
|
| Rated Power In Hp |
|
| Condition Of Use | horizontal |
| Control Type | no control units |
| Phase | 3 phase |
| Local Signalling | no indicator |
| Poles Description | 3P |
| Electrical Connection | screw clamp terminals |
| Provided Equipment | fuse not supplied |
| Line Rated Current | 90 A |
| Control Circuit | separate control circuit |
| Width | 323.09 mm |
| Depth | 177.80 mm |
| Wiring Mode | 3 wires |
| [Ue] Rated Operational Voltage | 600 V AC |
| Country of Origin | Mexico |
| Width | 323.09 mm |
| Height | 202.44 mm |
| Range Of Product | type S |
| Contactor Application | reversing |
| Product Or Component Type | contactor |
