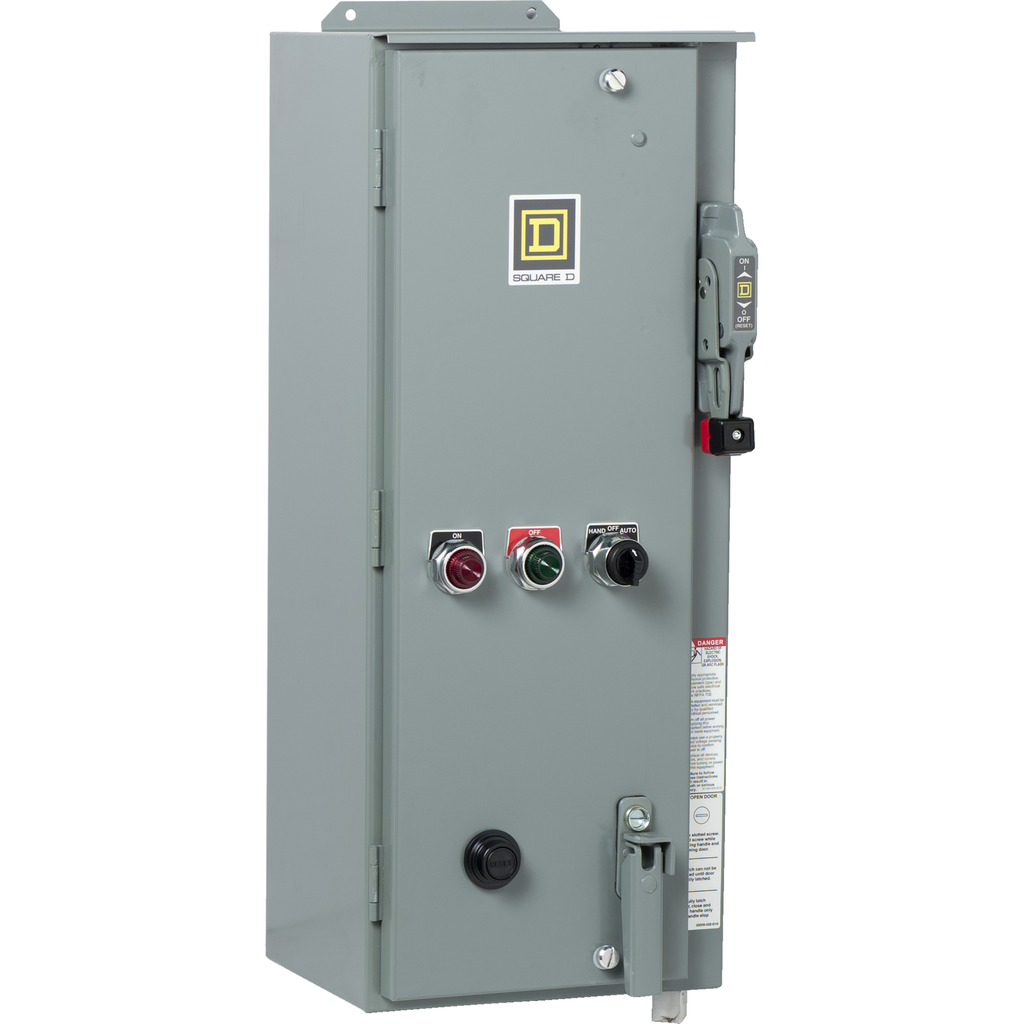

8539SDASP5 - NEMA Combination Starter, Type S, HHL electronic motor circuit protector, Size 2, 45A, 3 phase, 120VAC coil, NEMA 12

8539SDASP5

Add to Quote Catalogue

Product Certifications	UL listed file E152395 CCN NKJH UL listed file E152395 CCN NKJH7 CSA file 584 class 3211 04
Nema Size	2
Nema Degree Of Protection	NEMA 12 painted sheet steel with external reset
Warranty	18 months
China Rohs Regulation	Product out of China RoHS scope. Substance declaration for your information.
Eu Rohs Directive	Under investigation
California Proposition 65	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Disconnector Device Type	circuit breaker, 30 A, electrical SPDT
Motor Starter Type	non reversing
Thermal Overload Type	solid state Motor Logic class 10/20 9-27 A
Local Signalling	red indicator on LED green indicator off LED
Height	27.75 in
Auxiliary Contact Composition	2 NO + 2 NC
Control Type	selector switch HAND-OFF-AUTO)
Circuit Breaker Type	eMCP
Maximum Horse Power Rating	7.5-15 hp 480 V AC, 3 phase 1.5-7.5 hp 240 V AC, 3 phase
[Uc] Control Circuit Voltage	110 V AC 50 Hz 120 V AC 60 Hz
Poles Description	3P
Width	10.5 in
Depth	9.59 in
Length	3.25 in
Breaking Capacity	100 kA 480 V AC 50 kA 600 V AC
[Ue] Rated Operational Voltage	240/480 V AC
Country of Origin	Mexico
Length	3.25 in
Width	10.5 in
Height	27.75 in
Range Of Product	S
Control Circuit	separate control circuit
Product Or Component Type	Combination Starter
