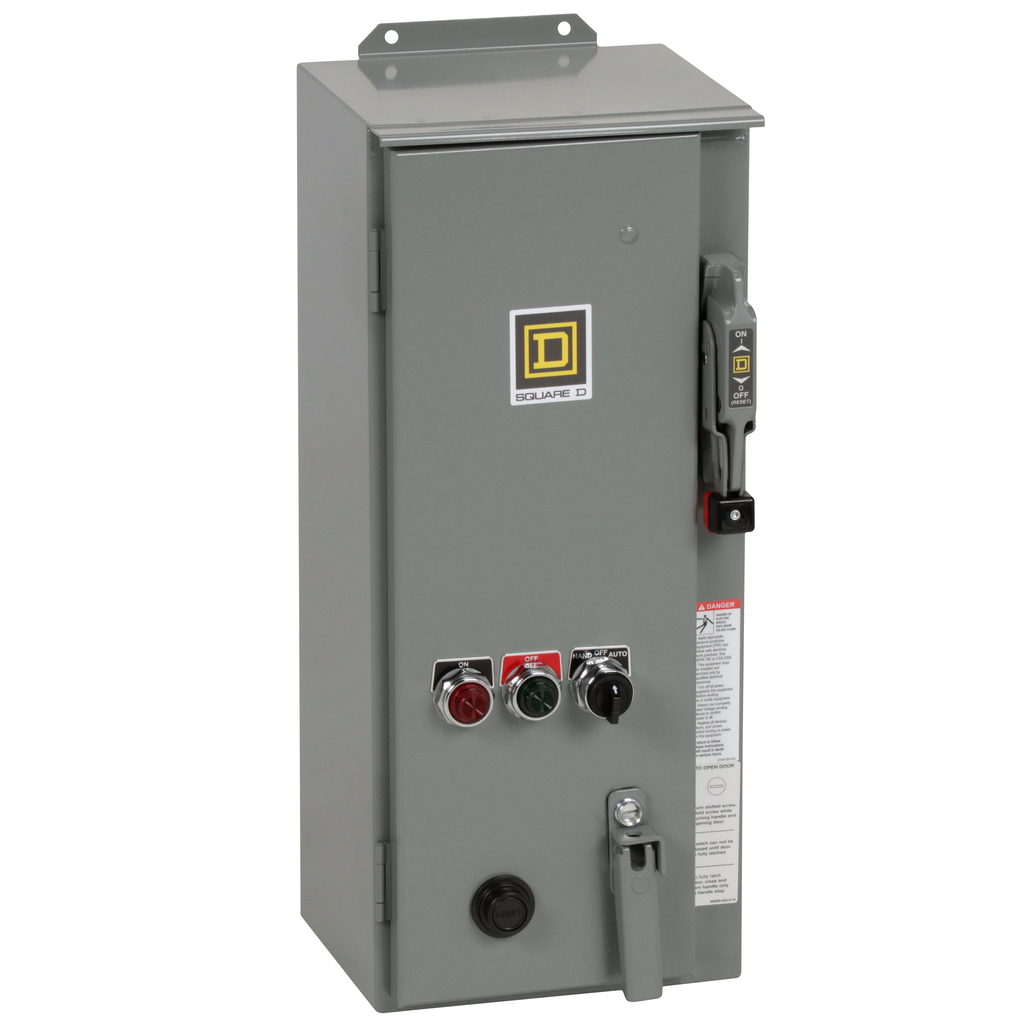

8539SCASP6 - NEMA Combination Starter, Type S, HHL electronic motor circuit protector, Size 1, 27A, 3 phase, 120VAC coil, NEMA 12

8539SCASP6

NEMA Combination Starter, Type S, HHL electronic motor circuit protector, Size 1, 27A, 3 phase, 120VAC coil, NEMA 12

Type S nonreversing circuit breaker combination starters are for motor control applications. Combination starters combine the requirements for motor overload and short circuit protection into one package. NEMA Size 1 starters have ratings of 5 HP at 208, 7.5 HP at 240 VAC and 10 HP at 460 and 575 VAC poly phase. Combination starter has an HLL36030M71 circuit breaker. This 3 pole starter is for poly phase applications. Combination starters are available with a wide variety of replaceable coil voltages. Starter has a 110/120 VAC 50/60 Hz operating coil wired for separate control. This nonreversing NEMA combination starter has a Motor Logic solid state overload relay to detect over current conditions. A painted sheet steel NEMA 3R/12 dusttight enclosure is used to protect this starter. Enclosure is 24.0 inches tall, 9.50 inches wide and 8.34 inches deep. A wide variety of accessories are available for Type S starters. Type S combination starters are UL listed and CSA certified.

Brand: Schneider Electric

Add to Quote Catalogue

Specifications

Product Certifications	UL listed file E152395 CCN NKJH7 UL listed file E152395 CCN NKJH CSA file 584 class 3211 04
Nema Size	1
Nema Degree Of Protection	NEMA 12 painted sheet steel with external reset
Warranty	18 months
California Proposition 65	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
China Rohs Regulation	Product out of China RoHS scope. Substance declaration for your information.
Eu Rohs Directive	Under investigation
Thermal Overload Type	solid state Motor Logic class 10/20 3-9 A
Height	24.0 in
Auxiliary Contact Composition	2 NO + 2 NC
Control Type	selector switch HAND-OFF-AUTO)
Circuit Breaker Type	eMCP
Maximum Horse Power Rating	0.25-5 hp 200 V AC, 3 phase 0.25-7.5 hp 230 V AC, 3 phase 0.25-10 hp 460 V AC, 3 phase 0.25-10 hp 575 V AC, 3 phase
[Uc] Control Circuit Voltage	110 V AC 50 Hz 120 V AC 60 Hz
Disconnector Device Type	circuit breaker, 30 A, electrical SPDT
Motor Starter Type	non reversing
Local Signalling	red indicator on LED green indicator off LED
Poles Description	3P
Width	8.34 in
Depth	9.50 in
Breaking Capacity	100 kA 480 V AC 35 kA 600 V AC
[Ue] Rated Operational Voltage	600 V AC
Country of Origin	Mexico
Width	8.34 in
Height	24.0 in
Range Of Product	S
Product Or Component Type	Combination Starter
Control Circuit	separate control circuit
