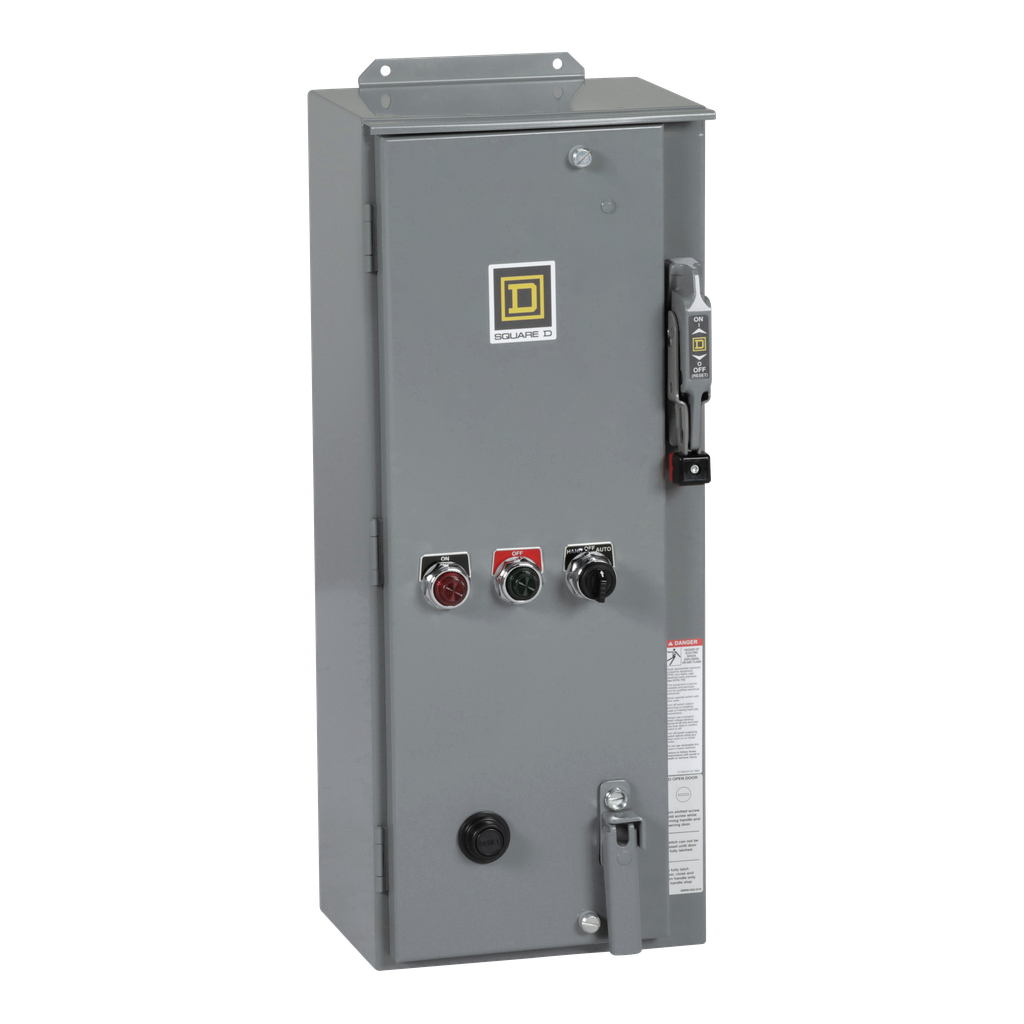

NEMA combination starter, Type S, 60A fusible disconnect, Size 2, 45A, 25HP at 600VAC, 3 phase, 3 pole, melting alloy, 120VAC coil, NEMA 12
Type S nonreversing fusible combination starters are for motor control applications. Combination starters combine the requirements for motor overload and short circuit protection into one package. NEMA Size 1 starters have ratings of up to 10 HP at 480 and 600 VAC three phase. This fusible combination starter has 60 ampere Class H or K fuse clips. This 3 pole starter is for three phase applications. Combination starters are available with a wide variety of replaceable coil voltages. Starter has a 110/120 VAC 50/60 Hz operating coil wired for separate control. This nonreversing NEMA combination starter has a melting alloy type overload relay which uses Type B thermal units to sense over current conditions. A painted sheet steel NEMA 3R/12 Dusttight and driptight industrial enclosure with external reset is used to protect this starter. A wide variety of accessories are available for Type S starters. This combination starters is supplied with a HOA selector switch, a red and green pilot light, auxiliary contacts and an interlock on disconnect. Type S combination starters are UL listed and CSA certified.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Certifications |
|
|---|---|
| Nema Degree Of Protection | NEMA 12 painted sheet steel with external reset |
| Warranty | 18 months |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Eu Rohs Directive | Not compliant |
| Thermal Overload Type | melting alloy 3 |
| Height | 27.75 in |
| Auxiliary Contact Composition | 2 NO + 2 NC |
| Nema Size | 2 |
| Maximum Horse Power Rating |
|
| [Uc] Control Circuit Voltage |
|
| Length | 3.25 in |
| Disconnector Device Type | fusible disconnect switch H and K, 60 A, electrical SPDT |
| Motor Starter Type | non reversing |
| Local Signalling |
|
| Control Type | selector switch HAND-OFF-AUTO) |
| Poles Description | 3P |
| Line Rated Current | 45 A |
| Width | 10.5 in |
| Depth | 9.59 in |
| [Ue] Rated Operational Voltage | 600 V AC |
| Country of Origin | Mexico |
| Length | 3.25 in |
| Width | 10.5 in |
| Height | 27.75 in |
| Range Of Product | S |
| Product Or Component Type | Combination Starter |
| Control Circuit | separate control circuit |
