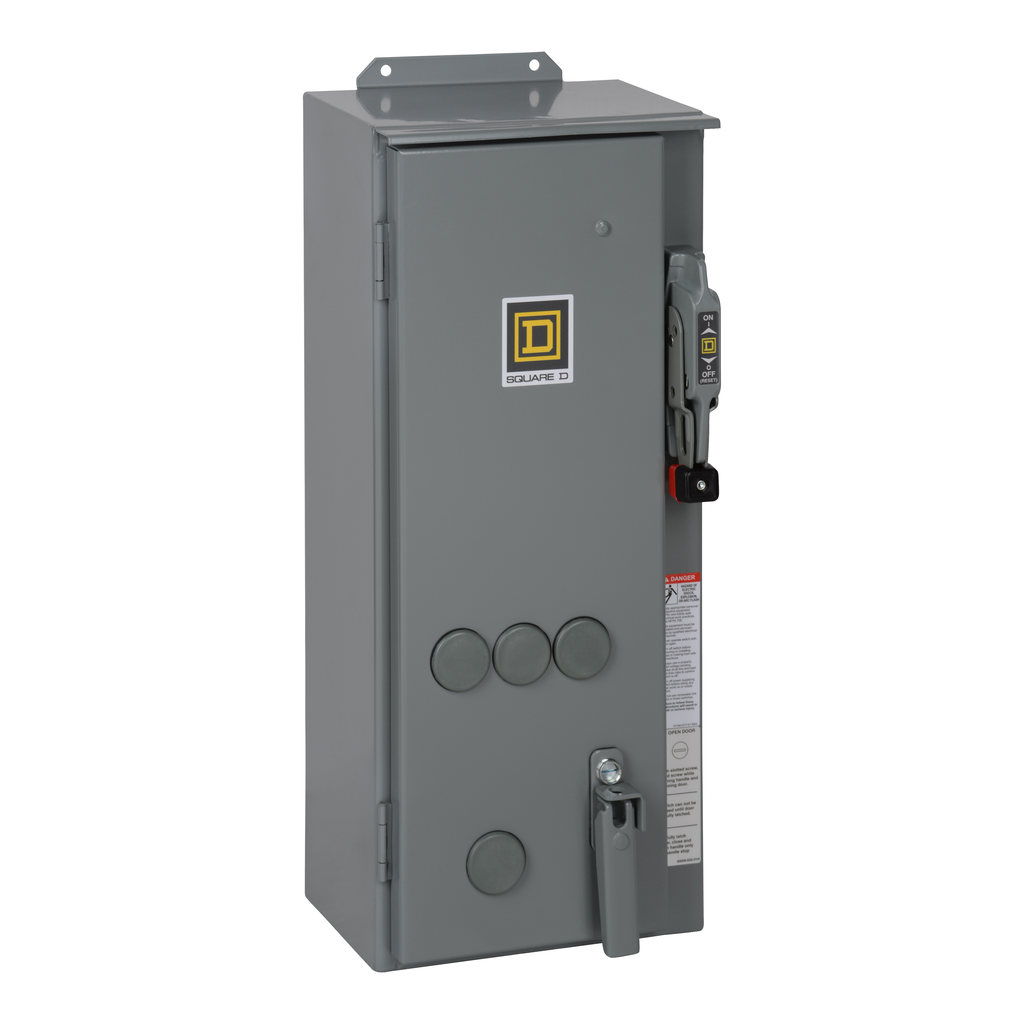

8538SCA24V02S
NEMA Combination Starter, Type S, 30A fusible disconnect, Size 1, 27A, 10HP at 600VAC polyphase, 120VAC coil, NEMA 12
Specifications
| Nema Degree Of Protection | NEMA 12 painted sheet steel with external reset |
|---|---|
| Warranty | 18 months |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Eu Rohs Directive | Not compliant |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Disconnector Device Type | fusible disconnect switch H, 30 A |
| Motor Starter Type | non reversing |
| Thermal Overload Type | melting alloy 3 |
| Local Signalling | no indicator |
| Auxiliary Contact Composition | without |
| Nema Size | 1 |
| Control Type | no control units |
| Maximum Horse Power Rating |
|
| [Uc] Control Circuit Voltage |
|
| Poles Description | 3P |
| [Ue] Rated Operational Voltage | 600 V AC |
| Country of Origin | Mexico |
| Range Of Product | S |
| Control Circuit | separate control circuit |
| Product Or Component Type | Combination Starter |
