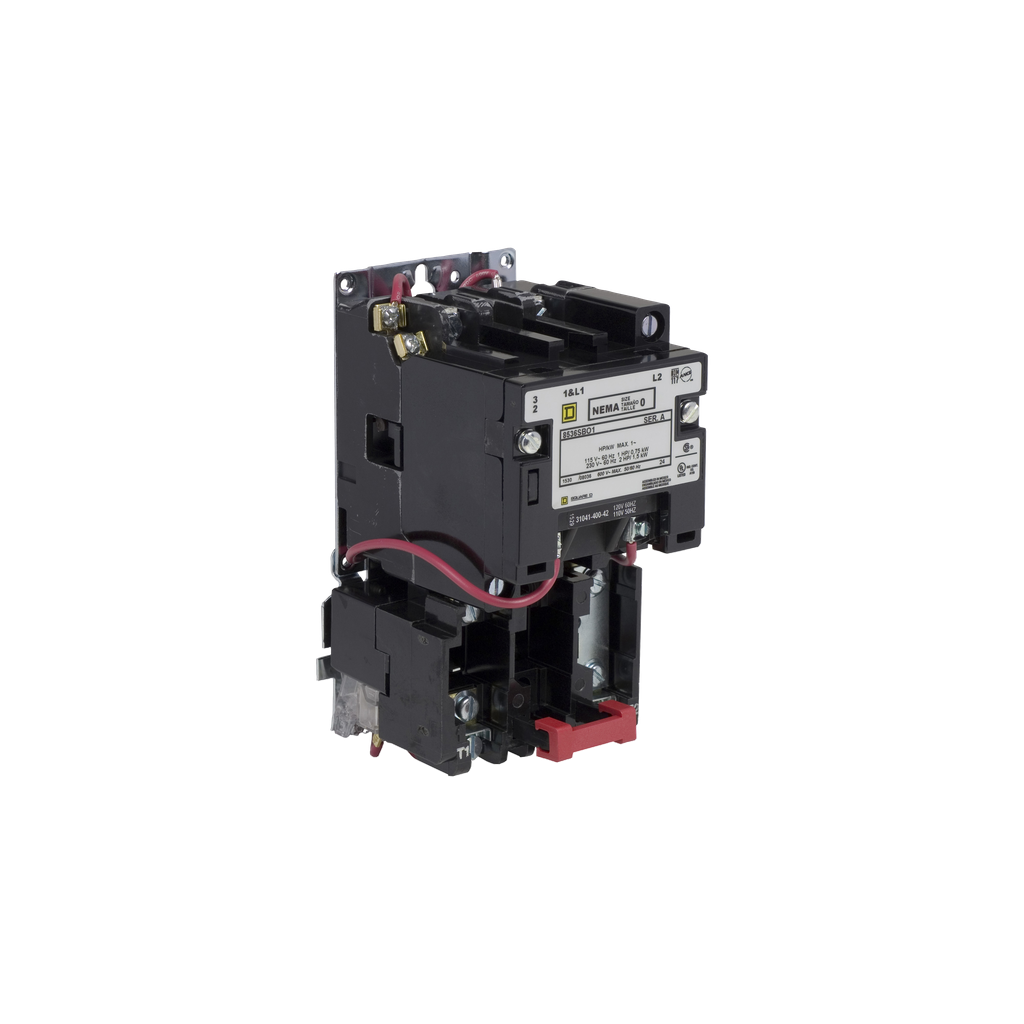

NEMA Motor Starter, Type S, nonreversing, Size 0, 18A, 2 HP at 230 VAC, 5 kA SCCR, 1 phase, 2 pole, melting alloy, 120 VAC coil, open
Type S NEMA motor starters are used for full voltage starting and stopping of AC squirrel cage motors. Type S motor starters have ratings up to 810 amperes. This 2 pole NEMA Size 0 non-reversing starter has an 18 ampere rating. This NEMA Size 0 motor starter has single phase ratings of 1 HP at 115 VAC and 2 HP at 230 VAC. This non-reversing NEMA motor starter has a melting alloy type overload relay that uses Type B thermal units to sense over current conditions. This NEMA starter has a 5 kA maximum SCCR (Short Circuit Current Rating) per UL508A when protected by an appropriate circuit breaker or fuse. Type S motor starters are available with replaceable coils in a wide variety of voltages. This starter has a 110/120 VAC 50/60 Hz operating coil wired for common control. This NEMA starter is an open device without an enclosure. This starter is 6.77 inches tall, 3.50 inches wide and 4.22 inches deep. A wide variety of accessories are available for Type S starters. Type S non-reversing NEMA motor starters are UL listed and CSA certified.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Certifications |
|
|---|---|
| Nema Degree Of Protection | not rated (open device) |
| Warranty | 18 months |
| Pvc Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Eu Rohs Directive | Not compliant |
| Thermal Overload Type | melting alloy 1 |
| Height | 172 mm |
| Auxiliary Contact Composition | without |
| Nema Size | 0 |
| [Uc] Control Circuit Voltage |
|
| Rated Power In Hp |
|
| Control Type | no control units |
| Phase | 1 phase |
| Local Signalling | without pilot light |
| Poles Description | 2P |
| Electrical Connection | screw clamp terminals |
| Line Rated Current | 18 A |
| Control Circuit | common control circuit |
| Width | 89 mm |
| Depth | 107 mm |
| [Ue] Rated Operational Voltage | 600 V AC |
| Country of Origin | United States |
| Width | 89 mm |
| Height | 172 mm |
| Range Of Product | S |
| Product Or Component Type | motor starter |
| Motor Starter Type | non reversing |
