8502SDO2V08 - NEMA Contactor, Type S, nonreversing, Size 2, 45A, 25HP at 575VAC, 3 phase, up to 100kA, 3 pole, 208VAC coil, open

8502SDO2V08

NEMA Contactor, Type S, nonreversing, Size 2, 45A, 25HP at 575VAC, 3 phase, up to 100kA, 3 pole, 208VAC coil, open

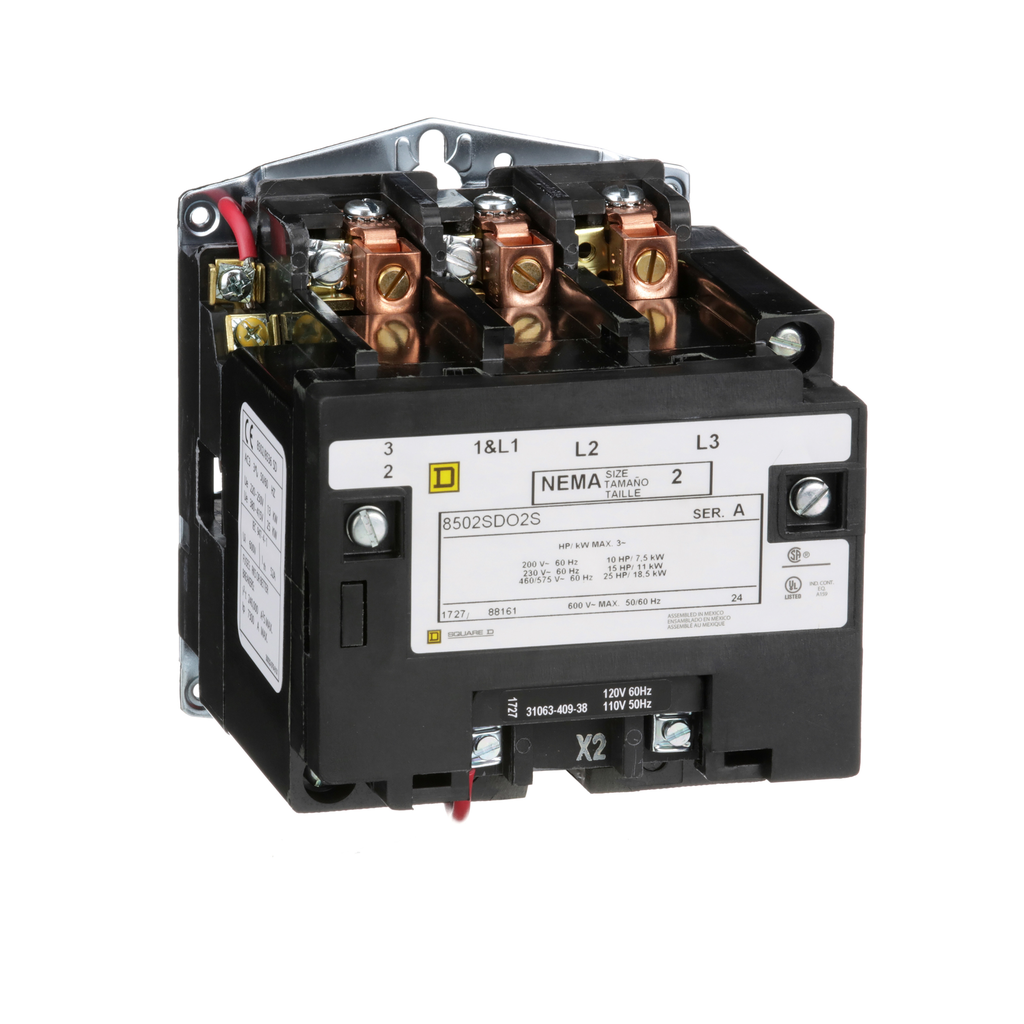

Type S non-reversing magnetic contactors are used to switch heating loads, capacitors, transformers, and electric motors where overload protection is provided separately. Type S contactors have ratings up to 810 amperes. This 3 pole NEMA Size 2 non-reversing contactor has a 45 ampere rating. Three phase NEMA Size 2 contactors have 10 HP at 200, 15 HP at 230 VAC and 25 HP at 460 and 575 VAC ratings. This NEMA contactor has a 100 kA maximum SCCR rating per UL508A when protected by an appropriate circuit breaker or fuse. These contactors are available with replaceable coils in a wide variety of voltages. This contactor has a 208 VAC 60 Hz coil that is wired for common control. This NEMA contactor is an open device without an enclosure. This contactor is 5.13 inches tall, 4.31 inches wide and 4.94 inches deep. A wide variety of accessories are available for Type S contactors. Type S NEMA contactors are UL listed and CSA certified.

Brand: Schneider Electric

Add to Quote Catalogue

Specifications

Warranty	18 months
California Proposition 65	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
China Rohs Regulation	Product out of China RoHS scope. Substance declaration for your information.
Eu Rohs Directive	Not compliant
Product Certifications	UL listed file E78351 CCN NLDX CSA
Nema Degree Of Protection	not rated (open device)
Height	130.30 mm
Auxiliary Contact Composition	without
Nema Size	2
[Uc] Control Circuit Voltage	208 V AC 60 Hz
Rated Power In Hp	10 HP 200 V AC 15 HP 230 V AC 25 HP 460 V AC 25 HP 575 V AC
Product Compatibility	circuit-breaker 100 A maximum, SCCR: 100 kA at 480 V AC fuse J 100 A maximum, SCCR: 100 kA at 600 V AC fuse T 100 A maximum, SCCR: 100 kA at 600 V AC fuse RK1 100 A maximum, SCCR: 100 kA at 600 V AC fuse RK5 100 A maximum, SCCR: 100 kA at 600 V AC
Control Type	no control units
Phase	3 phase
Local Signalling	no indicator
Poles Description	3P
Electrical Connection	screw clamp terminals
Provided Equipment	fuse not supplied
Line Rated Current	45 A
Control Circuit	common control circuit
Width	109.47 mm
Depth	125.48 mm
[Ue] Rated Operational Voltage	600 V AC
Country of Origin	United States
Width	109.47 mm
Height	130.30 mm
Range Of Product	8502S
Contactor Application	non-reversing
Product Or Component Type	contactor
