8501XO40V02 - NEMA Control Relay, Type X, machine tool, 10A resistive at 600 VAC, 4 normally open contacts, 110/120 VAC 50/60 Hz coil

8501XO40V02

NEMA Control Relay, Type X, machine tool, 10A resistive at 600 VAC, 4 normally open contacts, 110/120 VAC 50/60 Hz coil

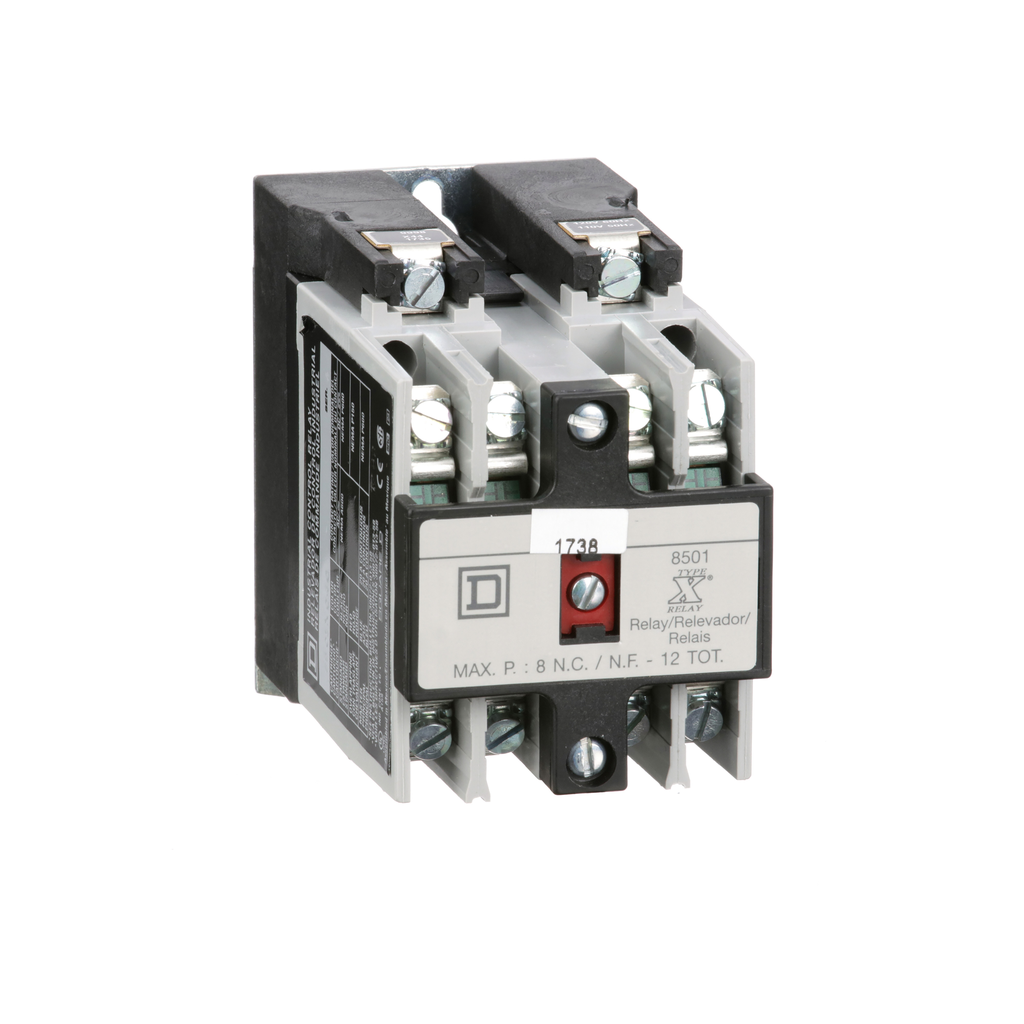

8501X NEMA machine tool relays combine a rugged heavy duty design with modular construction for greater flexibility. They are ideal for applications where long life, high reliability and ease of maintenance are important. This relay has a 10 ampere continuous current rating. It also has an A600 inductive contact rating. It has four 8501XC1 contact cartridges. This relay has four normally open contacts. The machine tool relays have straight through wiring. This makes wiring easier. The four plug in contact cartridges in this relay make contact conversion or replacement very easy. Contact conversion or replacement can be done without removing any wiring. Relay has a 110/120 VAC 50/60 Hz coil. Relay is UL listed and CSA certified.

Brand: Schneider Electric

Add to Quote Catalogue

Specifications

Product Certifications	UL listed file E78403 CCN NKCR CSA LR60905 class 3211 03
Ambient Air Temperature For Operation	-40-160 °F
Warranty	18 months
Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP1310013EN
Sustainable Offer Status	Green Premium product
California Proposition 65	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
China Rohs Regulation	X
Circularity Profile	ENVEOLI1310013EN
Eu Rohs Directive	Pro-active compliance (Product out of EU RoHS legal scope)
[Uc] Control Circuit Voltage	110 V AC 50 Hz 120 V AC 60 Hz
Height	3.5 in
Control Circuit Voltage Limits	operational 0.85...1.1 Uc AC 50/60 Hz
Mounting Support	panel
Contacts Type And Composition	4 NO 4 standard contact cartridges
Rated Breaking Capacity	6 A 120 V AC inductive control circuit UL 508 0.8 A 250 V DC resistive control circuit UL 508 3 A 240 V AC inductive control circuit UL 508 1.5 A 480 V AC inductive control circuit UL 508 1.2 A 600 V AC inductive control circuit UL 508 10 A <= 600 V AC resistive control circuit UL 508 1.1 A 125 V DC inductive control circuit UL 508 0.55 A 250 V DC inductive control circuit UL 508 0.2 A 301...600 V DC inductive control circuit UL 508 4 A 125 V DC resistive control circuit UL 508
Inrush Power In Va	148-148 VA 60 Hz 143-143 VA 50 Hz
[Icm] Rated Short-Circuit Making Capacity	60 A 120 V AC inductive control circuit UL 508 0.8 A 250 V DC resistive control circuit UL 508 30 A 240 V AC inductive control circuit UL 508 15 A 480 V AC inductive control circuit UL 508 12 A 600 V AC inductive control circuit UL 508 10 A <= 600 V AC resistive control circuit UL 508 1.1 A 125 V DC inductive control circuit UL 508 0.55 A 250 V DC inductive control circuit UL 508 0.2 A 301...600 V DC inductive control circuit UL 508 4 A 125 V DC inductive control circuit UL 508
Hold-In Power Consumption In Va	23-23 VA 60 Hz 25-25 VA 50 Hz
Electrical Connection	screw clamp terminals
Operating Time	15 ms - pick-up 16 ms - drop-out
Awg Gauge	AWG 18...AWG 12 copper
Width	2.23 in
Tightening Torque	control circuit 1.02-1.36 N.m screw terminals
Depth	3.95 in
Country of Origin	Mexico
Width	2.23 in
Height	3.5 in
Line Rated Current	10 A AC 5 A DC
Range Of Product	8501X
Product Or Component Type	relay
Relay Type	control
