8501XDO80V53 - NEMA Control Relay, Type X, machine tool, 10A resistive at 600VAC, 8 normally open contacts, 24VDC coil

8501XDO80V53

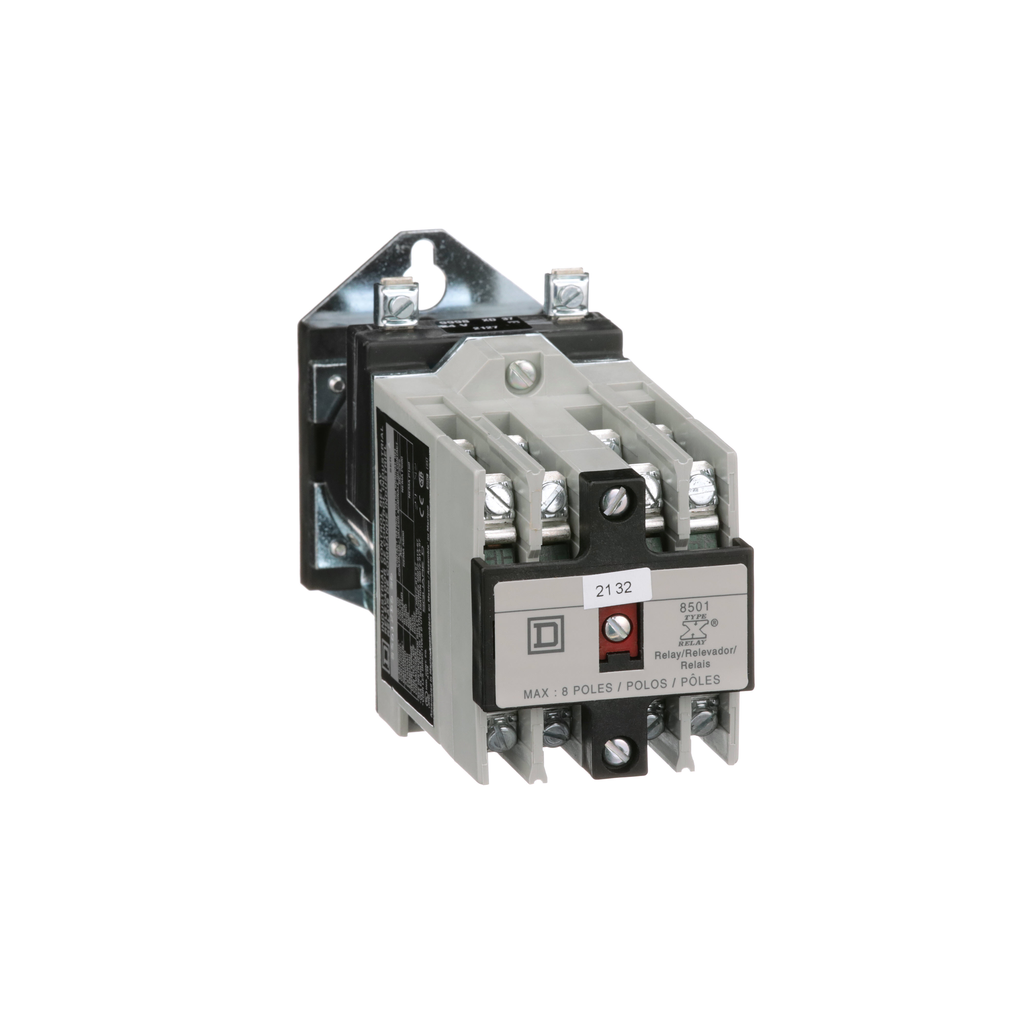

NEMA Control Relay, Type X, machine tool, 10A resistive at 600VAC, 8 normally open contacts, 24VDC coil

8501X NEMA machine tool relays combine a rugged heavy duty design with modular construction for greater flexiblity. They are ideal for applications where long life, high reliability and ease of maintenance are important. This relay has contacts with a 10 ampere resistive current rating at 600 VAC. The contacts also have an A600 inductive contact rating. This relay is supplied with eight 8501XC1 contact cartridges. The contact cartridges are installed as normally open contacts. The machine tool relays have straight through wiring. This makes wiring easier. The eight plug in contact cartridges in this relay make contact conversion or replacement very easy. Contact conversion or replacement can be done without removing any wiring. Contacts are supplied with pressure wire connectors so wires can be easily terminated. 18 to 12 AWG copper wire can be used with this relay. Relay has a 24 VDC replaceable coil. Relay is UL listed and CSA certified. Relay is UL listed and CSA certified.

Brand: Schneider Electric

Add to Quote Catalogue

Specifications

Line Rated Current	10 A AC 5 A DC
Relay Type	control
Range Of Product	8501X
Product Or Component Type	relay
Warranty	18 months
[Uc] Control Circuit Voltage	24 V DC
[Icm] Rated Short-Circuit Making Capacity	60 A 120 V AC inductive control circuit UL 508 0.8 A 250 V DC resistive control circuit UL 508 30 A 240 V AC inductive control circuit UL 508 15 A 480 V AC inductive control circuit UL 508 12 A 600 V AC inductive control circuit UL 508 10 A <= 600 V AC resistive control circuit UL 508 1.1 A 125 V DC inductive control circuit UL 508 0.55 A 250 V DC inductive control circuit UL 508 0.2 A 301...600 V DC inductive control circuit UL 508 4 A 125 V DC inductive control circuit UL 508
Height	3.56 in
Control Circuit Voltage Limits	operational 0.8...1.1 Uc DC
Mounting Support	panel
Hold-In Power Consumption In W	18-18 W
Electrical Connection	screw clamp terminals
Contacts Type And Composition	8 NO 8 standard contact cartridges
Rated Breaking Capacity	6 A 120 V AC inductive control circuit UL 508 0.8 A 250 V DC resistive control circuit UL 508 3 A 240 V AC inductive control circuit UL 508 1.5 A 480 V AC inductive control circuit UL 508 1.2 A 600 V AC inductive control circuit UL 508 10 A <= 600 V AC resistive control circuit UL 508 1.1 A 125 V DC inductive control circuit UL 508 0.55 A 250 V DC inductive control circuit UL 508 0.2 A 301...600 V DC inductive control circuit UL 508 4 A 125 V DC resistive control circuit UL 508
Operating Time	37 ms - pick-up 21 ms - drop-out
Awg Gauge	AWG 18...AWG 12 copper
Width	2.23 in
Tightening Torque	control circuit 1.02-1.36 N.m screw terminals
Depth	6.37 in
Inrush Power In W	18 W
China Rohs Regulation	X
Circularity Profile	ENVEOLI1310013
Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP1310013EN
Sustainable Offer Status	Green Premium product
Eu Rohs Directive	Pro-active compliance (Product out of EU RoHS legal scope)
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
California Proposition 65	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Product Certifications	CSA LR60905 class 3211 03 UL listed file E78403 CCN NKCR
Ambient Air Temperature For Operation	-40-160 °F
