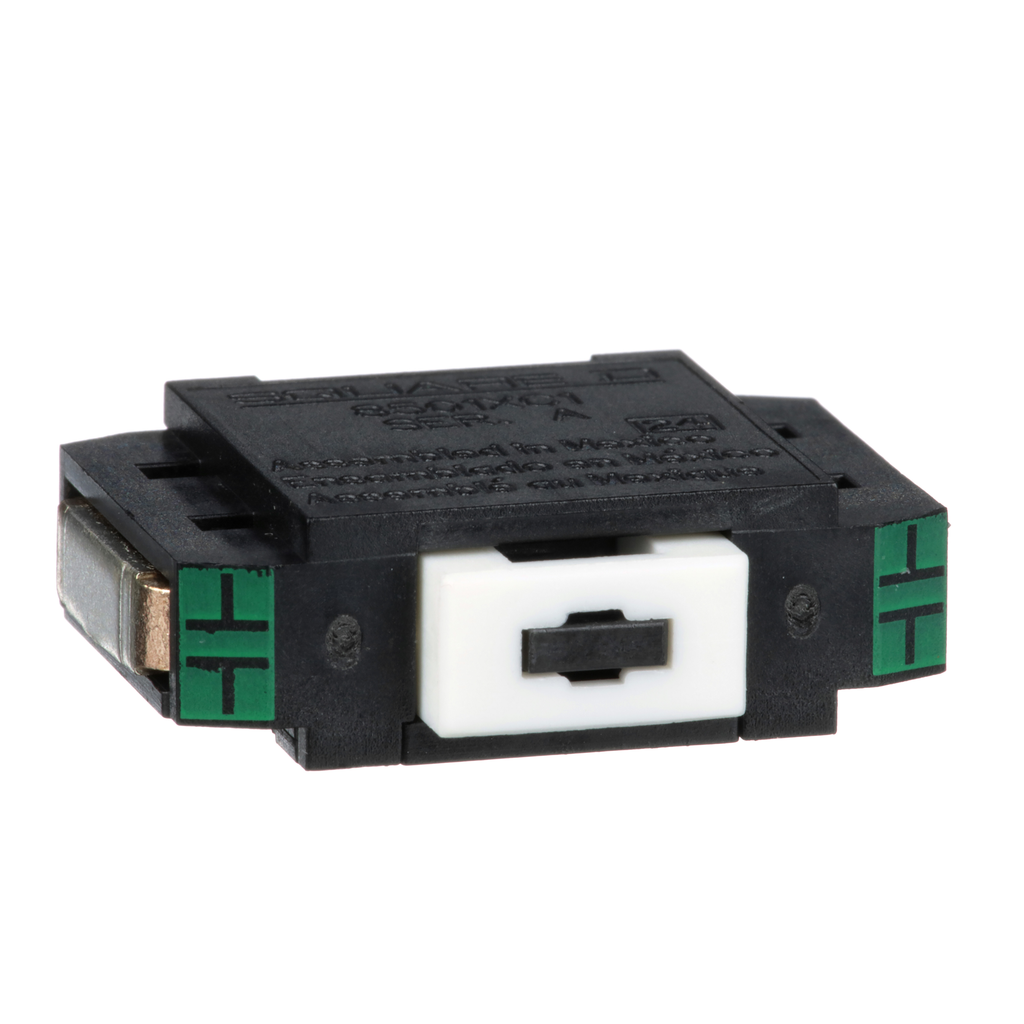

8501XC1 - Standard contact cartridge, Harmony 8501X, 10A resistive at 600V AC, 24V DC, 1NO or 1NC contact, standard contact cartridge

8501XC1

Standard contact cartridge, Harmony 8501X, 10A resistive at 600V AC, 24V DC, 1NO or 1NC contact, standard contact cartridge

8501X NEMA machine tool relays combine a rugged heavy duty design with modular construction for greater flexibility. They are ideal for applications where long life, high reliability and ease of maintenance are important. The 8501X relay family offers a complete line of relays and accessories for most control applications. This replacement contact cartridge can be installed in any standard relay, adder deck or timer attachment. This contact cartridge can be installed as a NO or as a NC contact without disturbing the wiring. The plug in design makes contact conversion or replacement very easy. The contact cartridge is UL listed and CSA certified. The replaceable coils are available in a wide variety of voltages. 8501X NEMA machine tool relays are UL Listed and CSA Certified.

Brand: Schneider Electric

Add to Quote Catalogue

Specifications

Relay Type	control relay
Range Of Product	8501X
Product Or Component Type	standard contact cartridge
Warranty	18 months
[Icm] Rated Short-Circuit Making Capacity	60 A 120 V AC inductive control circuit UL 508 30 A 240 V AC inductive control circuit UL 508 15 A 480 V AC inductive control circuit UL 508 12 A 600 V AC inductive control circuit UL 508 10 A <= 600 V AC resistive control circuit UL 508 1.1 A 125 V DC inductive control circuit UL 508 0.55 A 250 V DC inductive control circuit UL 508 0.2 A 301...600 V DC inductive control circuit UL 508 4 A 125 V DC inductive control circuit UL 508 0.8 A 250 V DC resistive control circuit UL 508
Contacts Type And Composition	1 NO 1 standard contact cartridge
Rated Breaking Capacity	6 A 120 V AC inductive control circuit UL 508 3 A 240 V AC inductive control circuit UL 508 1.5 A 480 V AC inductive control circuit UL 508 1.2 A 600 V AC inductive control circuit UL 508 10 A <= 600 V AC resistive control circuit UL 508 1.1 A 125 V DC inductive control circuit UL 508 0.55 A 250 V DC inductive control circuit UL 508 0.2 A 301...600 V DC inductive control circuit UL 508 4 A 125 V DC resistive control circuit UL 508 0.8 A 250 V DC resistive control circuit UL 508
China Rohs Regulation	Product out of China RoHS scope. Substance declaration for your information.
Circularity Profile	ENVEOLI1310013
Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP1310013EN
Eu Rohs Directive	Pro-active compliance (Product out of EU RoHS legal scope)
California Proposition 65	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Product Certifications	CE UL recognized E78403 CCN NKCR2 CSA LR60905 class 3211 02

Standard contact cartridge, Harmony 8501X, 10A resistive at 600V AC, 24V DC, 1NO or 1NC contact, standard contact cartridge
