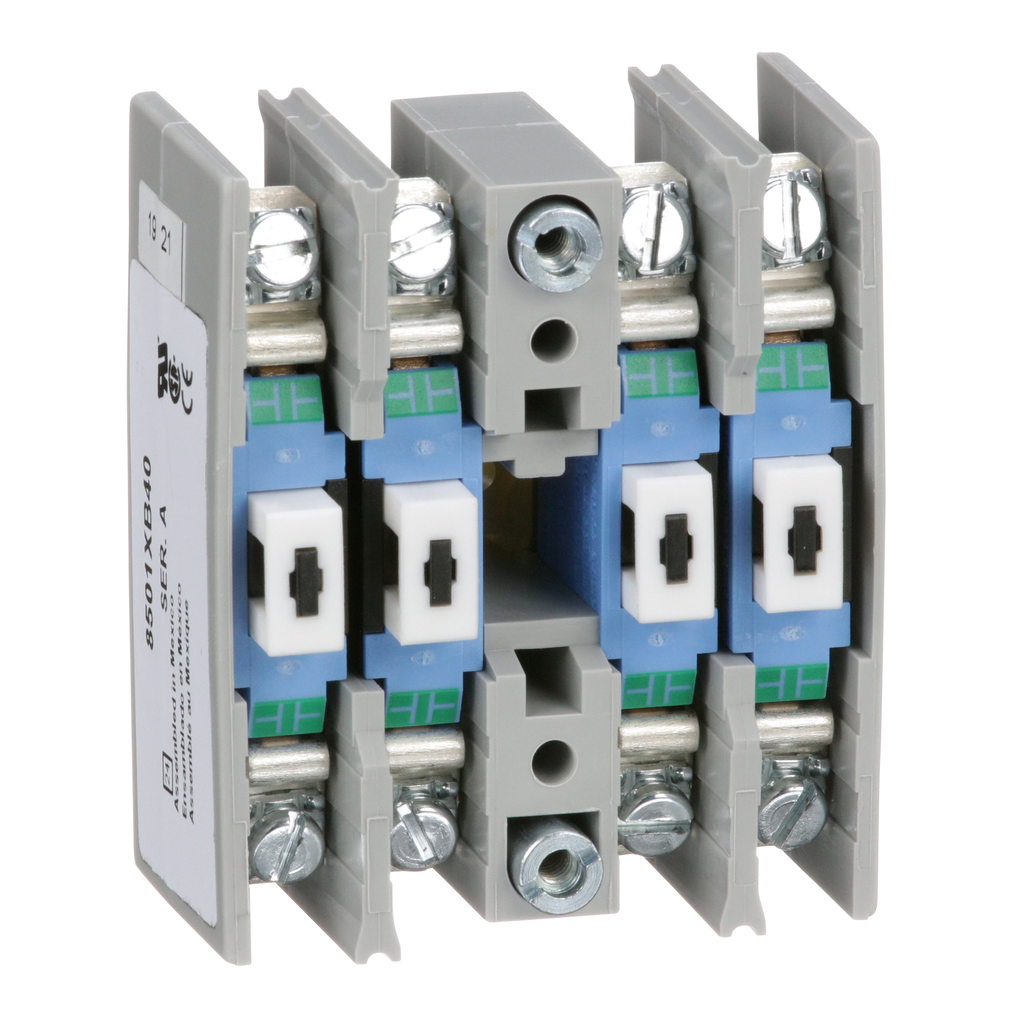

Adder deck, Harmony 8501X, screw clamp terminals, 10A resistive at 600V AC, 4NO, 4 standard contact cartridges
8501X NEMA machine tool relays combine a rugged heavy duty design with modular construction for greater flexibility. They are ideal for applications where long life, high reliability and ease of maintenance are important. The 8501X relay family offers a complete line of relays and accessories for most control applications. This adder deck allows an addition four contacts to be added to a standard relay. The adder deck has the same straight through wiring as the basic relay. This makes wiring easier. The four plug in contact cartridges in this adder deck make contact conversion or replacement very easy. Contact conversion or replacement can be done without removing any wiring. This adder deck for an 8501X NEMA machine tool relay is UL listed and CSA certified.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Relay Type | control relay |
|---|---|
| Range Of Product | 8501X |
| Product Or Component Type | adder deck |
| Warranty | 18 months |
| [Icm] Rated Short-Circuit Making Capacity |
|
| Electrical Connection | screw clamp terminals |
| Contacts Type And Composition | 4 NO 4 standard contact cartridges |
| Rated Breaking Capacity |
|
| Awg Gauge | AWG 18...AWG 12 copper |
| Tightening Torque | control circuit 1.02-1.36 N.m screw terminals |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Circularity Profile | ENVEOLI1310013 |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1310013EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Product Certifications |
|
