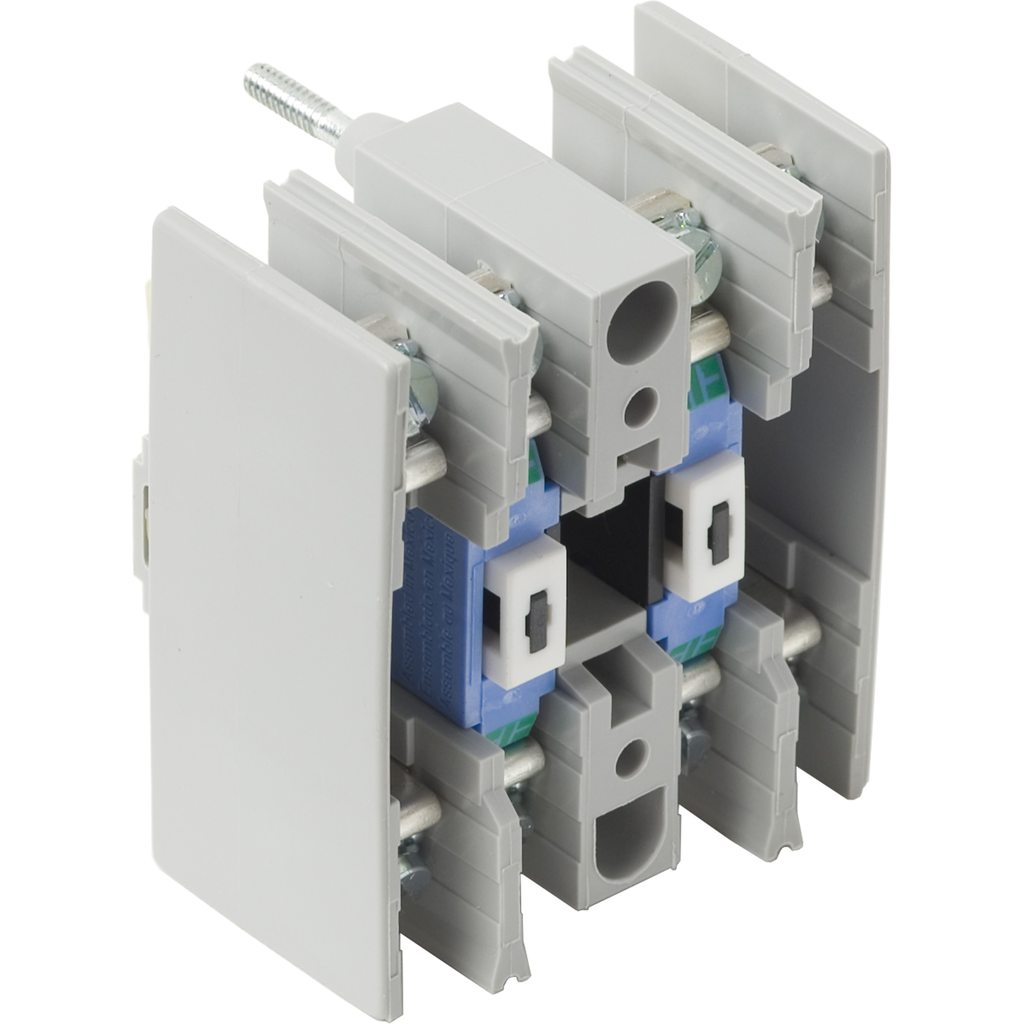

8501XB20 – NEMA Control Relay, Type X, adder deck, 10A resistive at 600 VAC, 2 normally open contacts

8501XB20

NEMA Control Relay, Type X, adder deck, 10A resistive at 600 VAC, 2 normally open contacts

Brand: Schneider Electric

Add to Quote Catalogue

Specifications

Product Certifications	CE UL recognized E78403 CCN NKCR2 CSA LR60905 class 3211 02
Warranty	18 months
China Rohs Regulation	Product out of China RoHS scope. Substance declaration for your information.
Circularity Profile	ENVEOLI1310013EN
Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP1310013EN
Eu Rohs Directive	Pro-active compliance (Product out of EU RoHS legal scope)
California Proposition 65	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
[Icm] Rated Short-Circuit Making Capacity	60 A 120 V AC inductive control circuit UL 508 30 A 240 V AC inductive control circuit UL 508 15 A 480 V AC inductive control circuit UL 508 12 A 600 V AC inductive control circuit UL 508 10 A <= 600 V AC resistive control circuit UL 508 1.1 A 125 V DC inductive control circuit UL 508 0.55 A 250 V DC inductive control circuit UL 508 0.2 A 301...600 V DC inductive control circuit UL 508 4 A 125 V DC inductive control circuit UL 508 0.8 A 250 V DC resistive control circuit UL 508
Electrical Connection	screw clamp terminals
Contacts Type And Composition	2 NO 2 standard contact cartridges
Rated Breaking Capacity	6 A 120 V AC inductive control circuit UL 508 3 A 240 V AC inductive control circuit UL 508 1.5 A 480 V AC inductive control circuit UL 508 1.2 A 600 V AC inductive control circuit UL 508 10 A <= 600 V AC resistive control circuit UL 508 1.1 A 125 V DC inductive control circuit UL 508 0.55 A 250 V DC inductive control circuit UL 508 0.2 A 301...600 V DC inductive control circuit UL 508 4 A 125 V DC resistive control circuit UL 508 0.8 A 250 V DC resistive control circuit UL 508
Awg Gauge	AWG 18...AWG 12 copper
Tightening Torque	control circuit 1.02-1.36 N.m screw terminals
Country of Origin	United States
Relay Type	control relay
Range Of Product	8501X
Product Or Component Type	adder deck
