Plug in relay, Type R, miniature, 0.5 HP at 277 VAC, 8A resistive at 120 VAC, 14 blade, 4PDT, 4 NO, 4 NC, 24 VAC coil

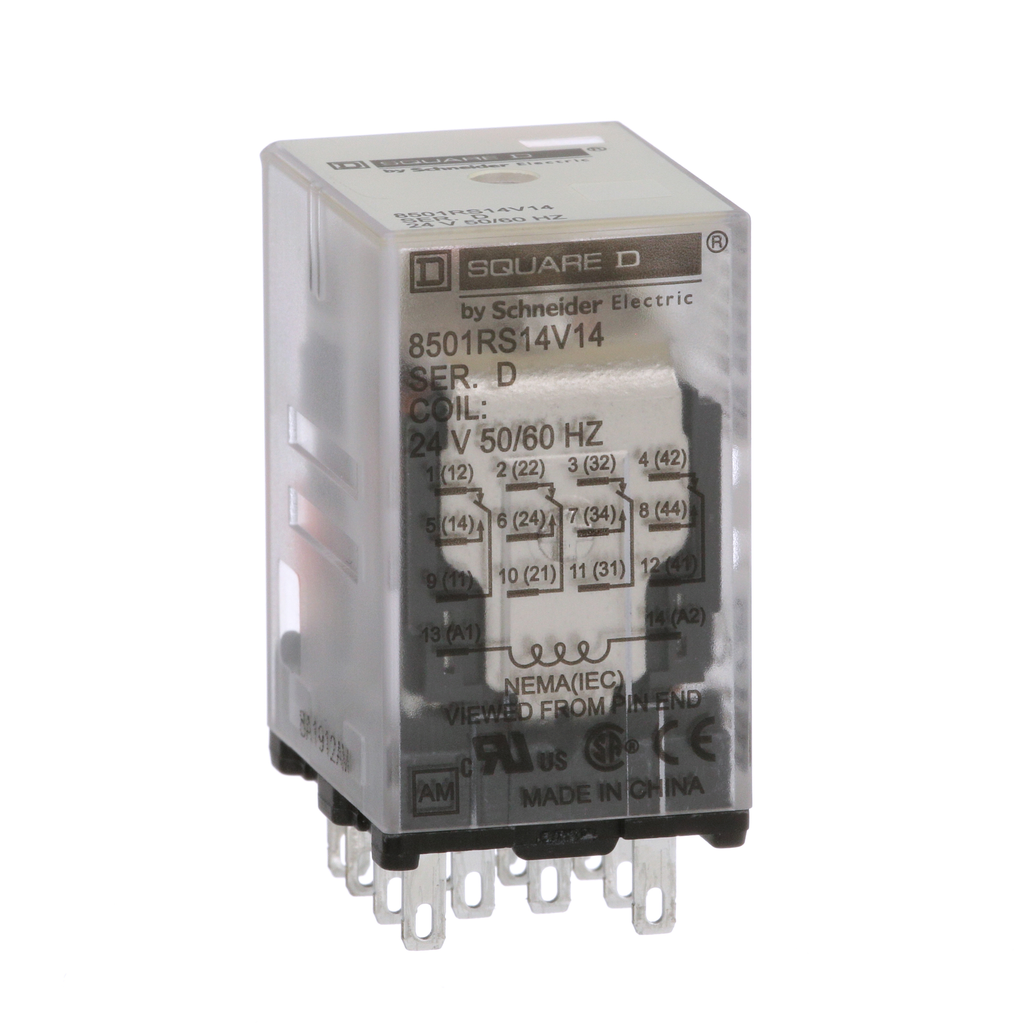

8501RS miniature plug in relays are designed for control circuit logic applications. These relays are designed to be plugged into a relay socket. This makes for very easy replacement. This relay plugs into an 8501NR45 or 8501NR45B relay socket. Relay is available with 4PDT contact arrangements. It has four normally open and four normally closed contacts. The contacts have a 6 ampere resistive rating at 277 VAC, an 8 ampere resistive rating at 120 VAC and 30 VDC, a 1/3 HP rating at 120 VAC, a 1/2 HP rating at 277 VAC and a B300 inductive rating. Relays can be ordered with a wide variety of coil voltages. This relay has a 24 VAC nonreplaceable coil. Relay does not have a green LED indicator. 8501RS relays are UL listed with Square D relay sockets, UL component recognized and CSA certified.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Certifications |
|
|---|---|
| Ambient Air Temperature For Operation | -40-131 °F |
| Warranty | 18 months |
| Rohs Exemption Information | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | X |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| [Uc] Control Circuit Voltage | 24 V AC |
| Height | 27.9 mm |
| Mounting Support | socket |
| Contacts Material | silver alloy, gold flashed |
| Rated Power In Hp |
|
| Shape Of Pin | spade |
| Rated Breaking Capacity |
|
| Maximum Switching Voltage |
|
| Control Type | without test button |
| Local Signalling | no indicator |
| Switch Function | 4PDT |
| Operating Time |
|
| Width | 21 mm |
| Depth | 41.5 mm |
| Product Compatibility | 8501NR45 |
| Country of Origin | China |
| Width | 21 mm |
| Height | 27.9 mm |
| Range Of Product | 8501R |
| Product Or Component Type | Miniature Relay |
| Relay Type | low voltage |
