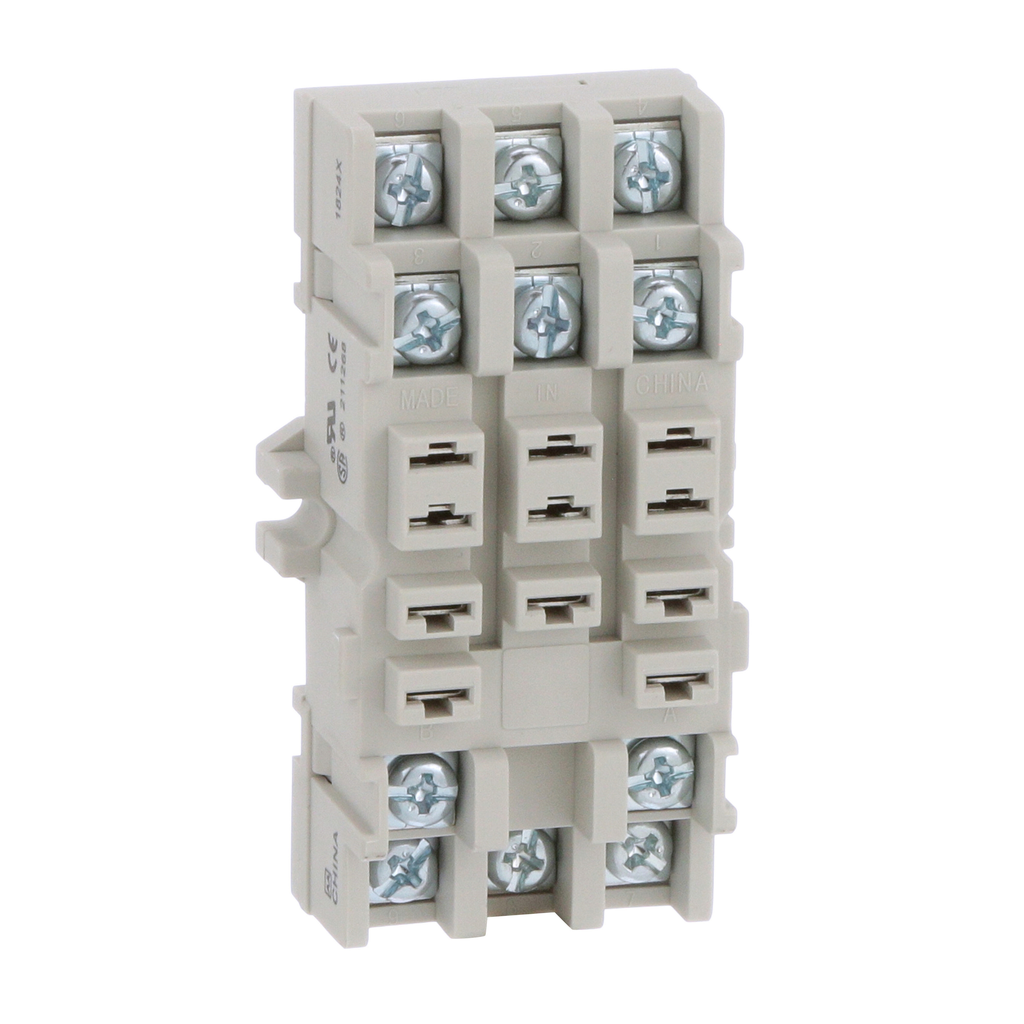

8501NR82B
Plug in relay, Type N, relay socket, 11 blade, double tier, for 8510KU relays, bulk packaged
8501NR plug in relay sockets are designed for the proper wiring of 8501K plug in relays. This socket can be mount on 35mm DIN rail or can be mounted directly to a panel. The 8501KUR and 8501KUDR relays will plug into this relay socket which is designed for 11 spade pins. The socket terminals have pressure wire clamps for a good secure connection. To save panel space this socket has stacked terminals. 8501NR plug in relay sockets are UL component recognized and CSA certified. These relay sockets are packed with ten sockets per box to make it quicker to get the sockets out on the packing and to reduce packing waste.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Height | 80 mm |
|---|---|
| Mounting Support |
|
| Electrical Connection | double tiered screw clamp terminals |
| Quantity Per Set | set of 10 |
| Width | 43 mm |
| Depth | 26 mm |
| Country of Origin | China |
| Width | 43 mm |
| Height | 80 mm |
| Line Rated Current | 15 A 300 V AC |
| China Rohs Regulation | X |
| Circularity Profile | N/A |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1511021EN |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| Warranty | 18 months |
