8501NR43

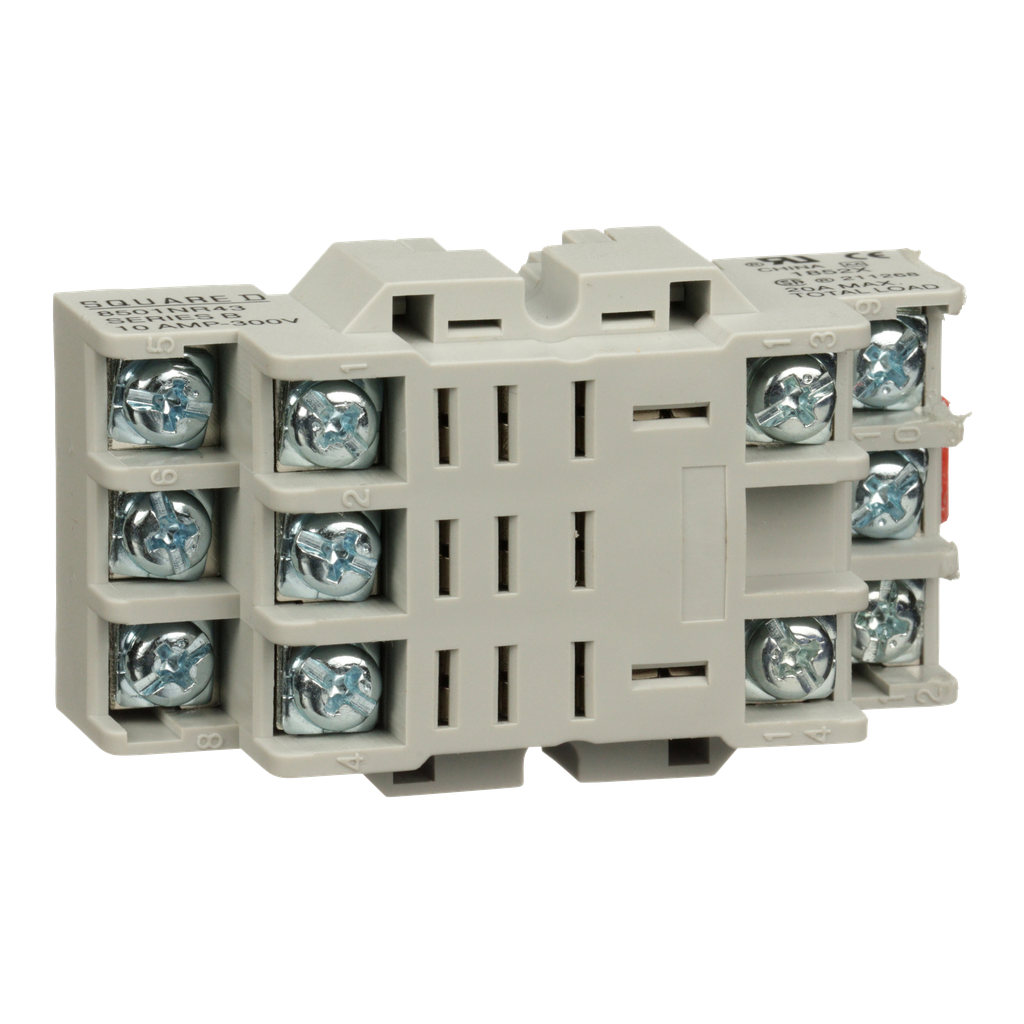

Plug in relay, Type N, relay socket, 11 blade, for 8510R relays
8501NR plug in relay sockets are designed for the proper wiring of 8501R plug in relays. This socket can be mount on 35mm DIN rail or can be mounted directly to a panel. The 8501RS43 or 8501RSD43 relay will plug into this relay socket which is designed for 11 blade pins. The socket terminals have pressure wire clamps for a good secure connection. To save panel space this socket has stacked terminals. 8501NR plug in relay sockets are UL component recognized and CSA certified.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Range Of Product | 8501N |
|---|---|
| Line Rated Current | 10 A 300 V AC |
| Shape Of Pin | spade |
| Product Or Component Type | Relay Socket |
| Pin Number | 11 |
| Warranty | 18 months |
| Mounting Support |
|
| Electrical Connection | double tiered screw clamp terminals |
| Quantity Per Set | 1 |
| China Rohs Regulation | X |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1511021EN |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| Product Certifications |
|
| Height | 69.6 mm |
| Width | 40.4 mm |
| Depth | 27.7 mm |
