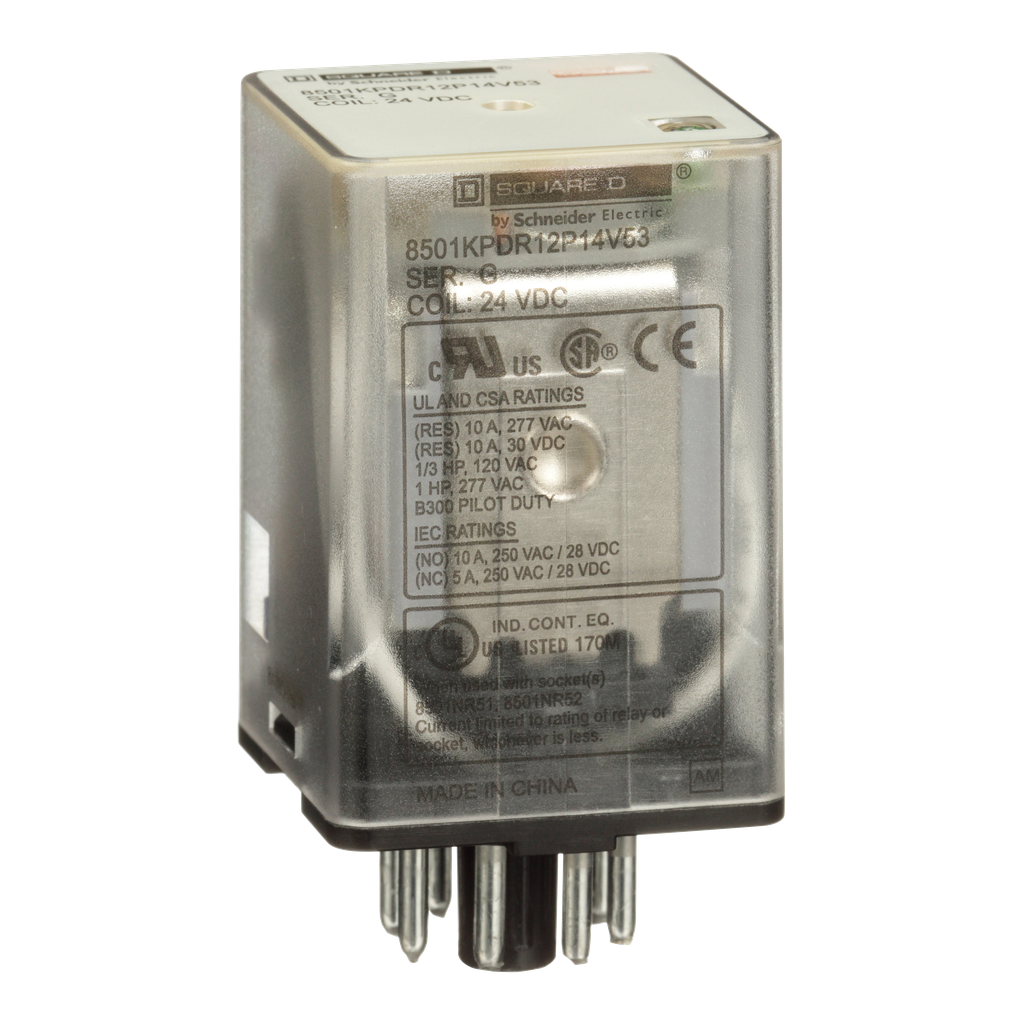

Relay, Harmony 8501K, DPDT, 8 pins, LED, coil, 24V DC, 10A resistive at 120V AC, 1 HP at 277V AC, 2NO + 2NC
8501KP universal plug in relays are designed for multipole switching applications at 300 VAC or lower. These relays are designed to be plugged into a relay socket. This makes for very easy replacement. This relay plugs into an 851NR51 or 8501NR52 relay socket. This relay has a DPDT contact arrangements. It has two normally open and two normally closed contacts. The contacts have a 10 ampere rating 277 VAC, a 10 ampere rating at 28 VDC, a 1/3 HP rating at 120 VAC, a 1 HP rating at 277 VAC and a B300 inductive rating. Relays can be ordered with a wide variety of coil voltages. This relay has a 24 VDC nonreplaceable coil. A green LED indicator is supplied on this relay. 8501KP relays are UL listed with Square D relay sockets, UL component recognized and CSA certified.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| [Uc] Control Circuit Voltage | 24 V DC |
|---|---|
| Local Signalling | indicator light relay energised LED |
| Relay Type | general purpose |
| Range Of Product | 8501K |
| Mounting Support | socket |
| Switch Function | DPDT |
| Product Or Component Type | relay |
| Control Type | without test button |
| Contacts Material | silver alloy (AgNi) |
| Rated Power In Hp |
|
| Shape Of Pin | tubular |
| Rated Breaking Capacity |
|
| Operating Time |
|
| Product Compatibility |
|
| Maximum Switching Voltage |
|
| China Rohs Regulation | X |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1406038EN |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| Product Certifications |
|
| Height | 2.66 in |
| Ambient Air Temperature For Operation | -40-131 °F |
| Width | 1.4 in |
| Depth | 1.4 in |
