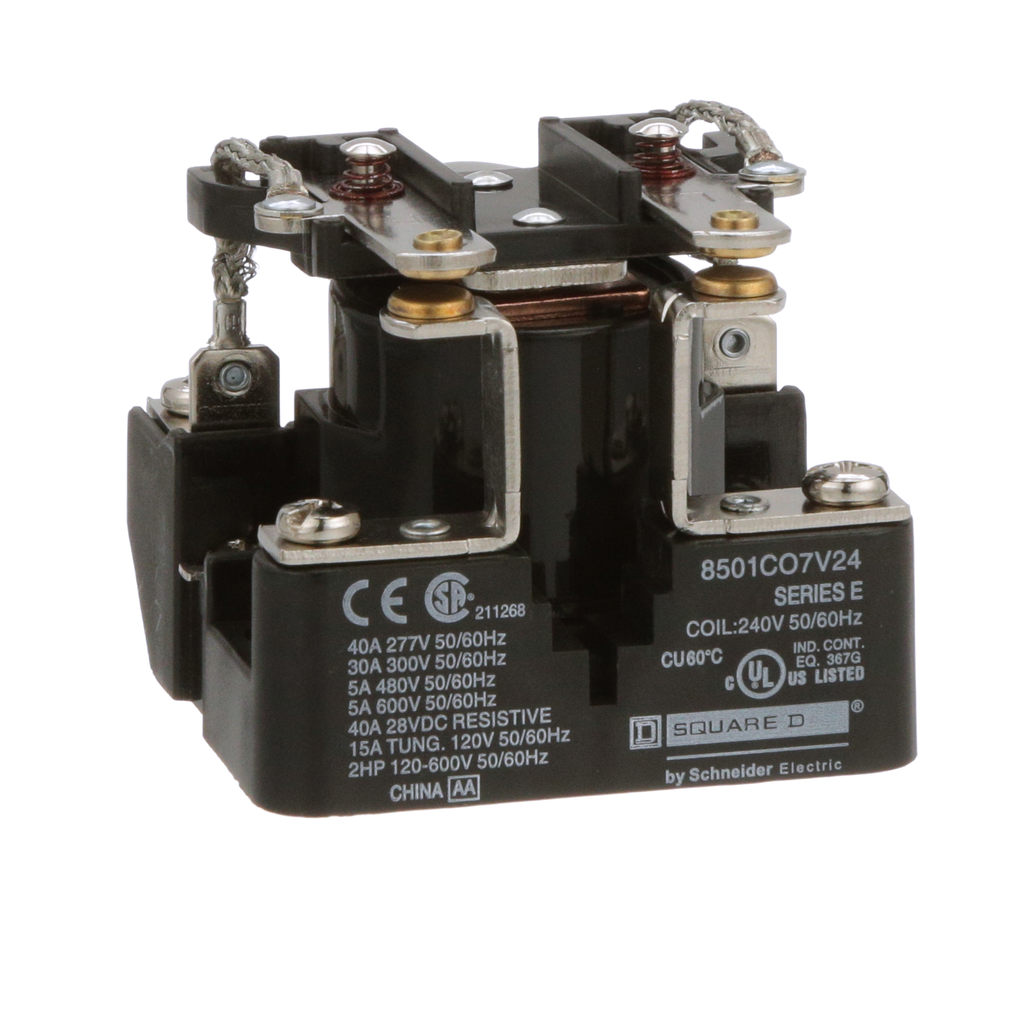

Power Relay, Harmony 8501C, DPST, coil, screw clamp terminal, 30A, 240V AC, 2NO
8501C power relays are used to control small single phase motors and other light loads. These power relays are available with a variety of contact configurations. This relay has a DPST contact configuration with two normally open and no normally closed contact. A variety of coil voltages are available. This relay has a 240 VAC nonreplaceable coil. Designed with heavy duty contacts that are rated for single phase 1.5 HP motors at 120 VAC, 230 VAC or 600 VAC. It also has a 30 A resistive rating at 300 VAC or 5 A resistive rating at 600 VAC. These relays have a durable open frame construction. 8501C power relays are UL listed and CSA certified. This range of relays is used in electric heater, pumping, conveyor and material handling applications.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Certifications |
|
|---|---|
| Ambient Air Temperature For Operation | -22-122 °F |
| Height | 2.43 in |
| Width | 2.5 in |
| Depth | 2.25 in |
| Warranty | 18 months |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1705008EN |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | X |
| Circularity Profile | N/A |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Connections - Terminals | screw clamp terminal |
| Mounting Support | panel mounting |
| Hold-In Power Consumption In Va | 10-10 VA |
| Phase | 1 phase |
| Catalog Class | 8501 |
| Awg Gauge | AWG 10 copper |
| Tightening Torque | 11-15 lbf.in |
| Country of Origin | China |
| Width | 2.5 in |
| Height | 2.43 in |
| [Uc] Control Circuit Voltage | 240 V AC 50/60 Hz |
| Range Of Product | Power Relay 8501C |
| Product Or Component Type | power relay |
| Maximum Switching Voltage | 600 V AC |
| Rated Power In Hp | 2.0 hp |
| Contacts Type And Composition | 2 NO |
| Line Rated Current | 30 A |
| Switch Function | DPST |
| Device Application | suited for controlling small single phase motors and other light loads |
| Device Short Name | type C |
