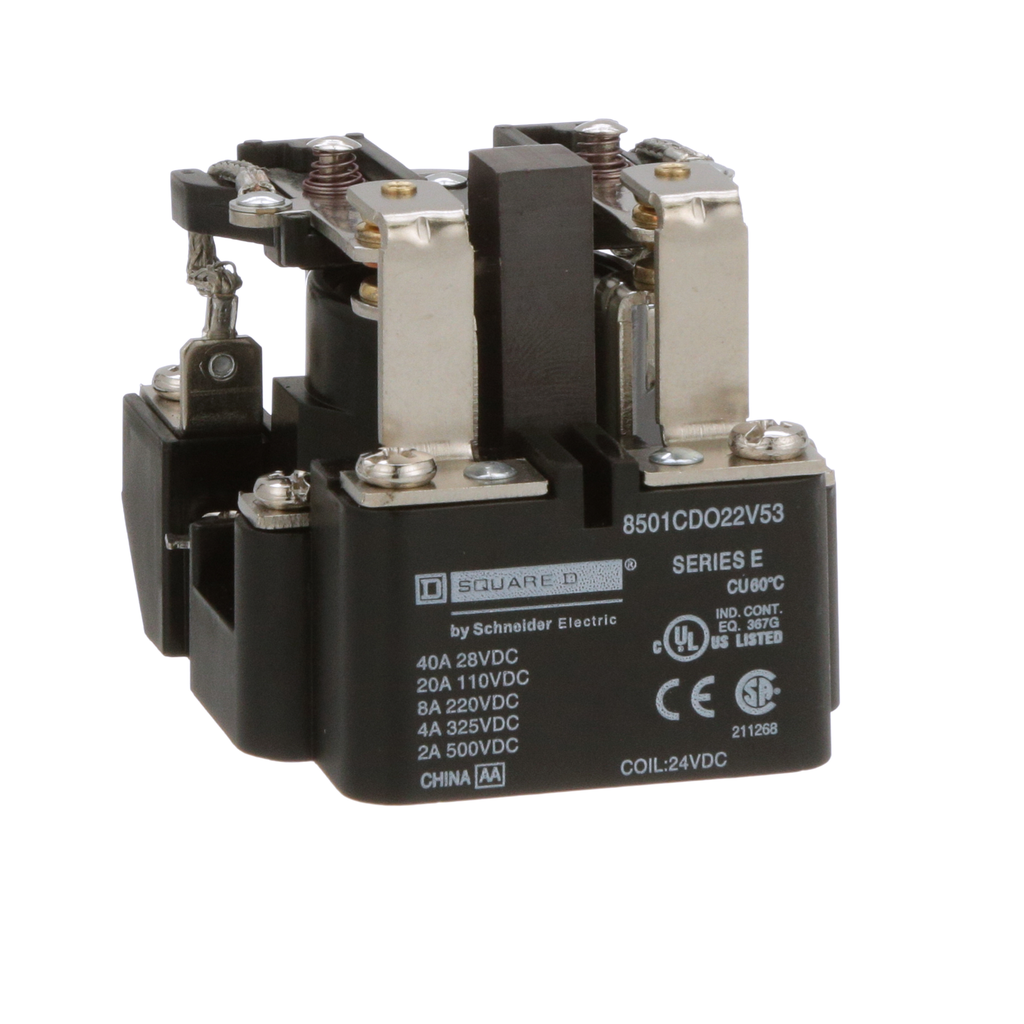

8501CDO22V53
Power Relay, Type C, DPDT, 2 normally open and 2 normally closed contacts, 20A resistive at 110 VDC, 24 VDC coil
8501C power relays are used to control VDC loads. These power relays are available with a variety of contact configurations. This relay has a DPDT contact configuration for VDC loads with two normally open and two normally closed contacts. A variety of coil voltages are available. This relay has a 24 VDC nonreplaceable coil. Designed with heavy duty contacts that are rated for 10 A resistive rating at 110 VDC or 4 A resistive rating at 220 VDC. These relays have a durable open frame construction. 8501C power relays are UL listed and CSA certified. This range of relays is used in electric heater, pumping, conveyor and material handling applications.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| [Uc] Control Circuit Voltage | 24 V DC |
|---|---|
| Contacts Type And Composition | 2 NO/2 NC |
| Range Of Product | Power Relay 8501C |
| Line Rated Current | 20 A |
| Switch Function | DPDT |
| Product Or Component Type | power relay |
| Device Application | suited for controlling small single phase motors and other light loads |
| Device Short Name | type C |
| Maximum Switching Voltage | 325 V DC |
| Warranty | 18 months |
| Catalog Class | 8501 |
| Connections - Terminals | screw clamp terminal |
| Mounting Support | panel mounting |
| Hold-In Power Consumption In W | 2-2 W |
| Awg Gauge | AWG 10 copper |
| Phase | 1 phase |
| Tightening Torque | 11-15 lbf.in |
| China Rohs Regulation | X |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1705008EN |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| Product Certifications |
|
| Height | 3.12 in |
| Ambient Air Temperature For Operation | -22-140 °F |
| Width | 2.5 in |
| Depth | 2.53 in |
