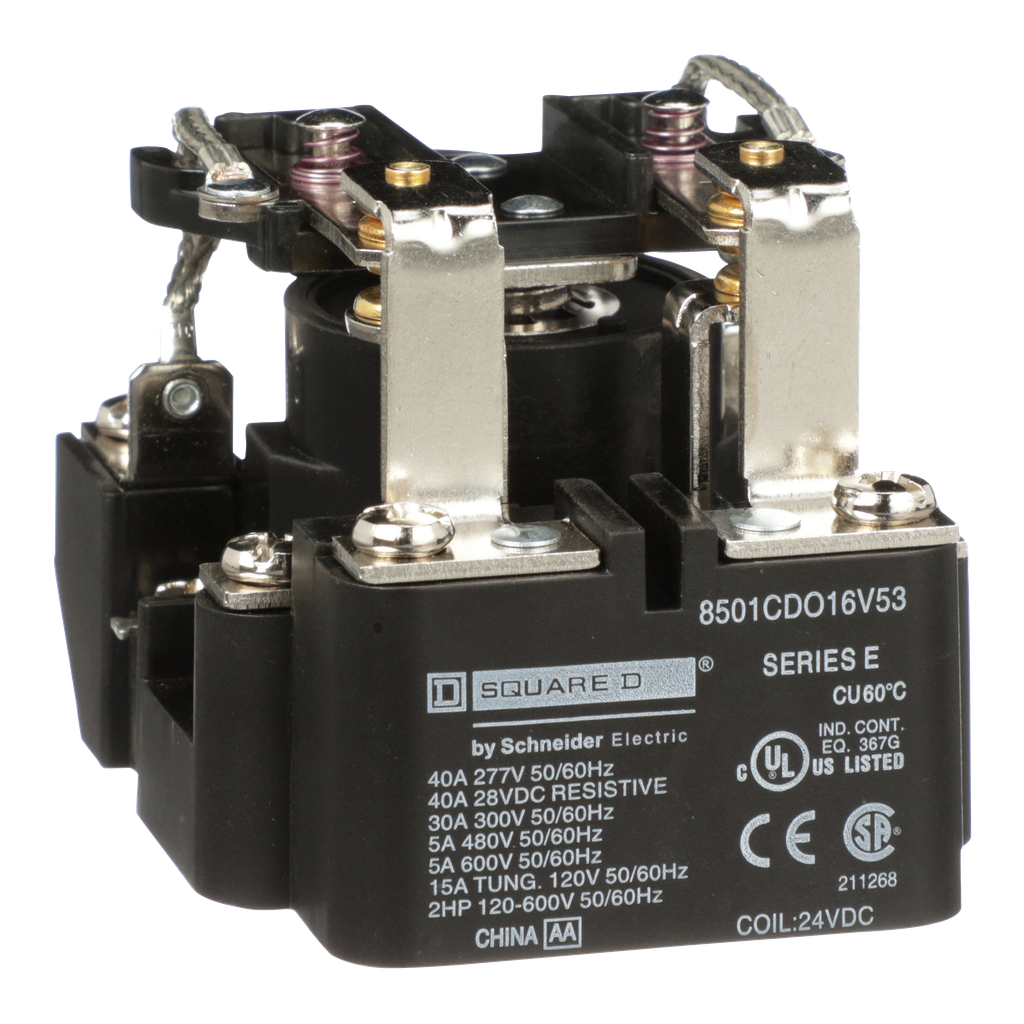

Power Relay, Type C, 2 hp, 30A resistive at 300VAC, DPDT, 2 normally open and 2 normally closed contact, 24VDC coil
8501C power relays are used to control small single phase motors and other light loads. These power relays are available with a variety of contact configurations. This relay has a DPDT contact configuration with two normally open and two normally closed contact. A variety of coil voltages are available. This relay has a 24 VDC nonreplaceable coil. Designed with heavy duty contacts that are rated for single phase 1.5 HP motors at 120 VAC, 230 VAC or 600 VAC. It also has a 30 A resistive rating at 300 VAC or 5 A resistive rating at 600 VAC. These relays have a durable open frame construction. 8501C power relays are UL listed and CSA certified. This range of relays is used in electric heater, pumping, conveyor and material handling applications.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Rated Power In Hp | 2.0 hp |
|---|---|
| [Uc] Control Circuit Voltage | 24 V DC |
| Contacts Type And Composition | 2 NO/2 NC |
| Range Of Product | Power Relay 8501C |
| Line Rated Current | 30 A |
| Switch Function | DPDT |
| Product Or Component Type | power relay |
| Device Application | suited for controlling small single phase motors and other light loads |
| Device Short Name | type C |
| Maximum Switching Voltage | 600 V AC |
| Warranty | 18 months |
| Catalog Class | 8501 |
| Connections - Terminals | screw clamp terminal |
| Mounting Support | panel mounting |
| Hold-In Power Consumption In W | 2-2 W |
| Awg Gauge | AWG 10 copper |
| Phase | 1 phase |
| Tightening Torque | 11-15 lbf.in |
| China Rohs Regulation | X |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Toxic Heavy Metal Free | Yes |
| Eu Rohs Directive | Compliant |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Reach Free Of Svhc | Yes |
| Product Certifications |
|
| Height | 3.12 in |
| Ambient Air Temperature For Operation | -22-140 °F |
| Width | 2.5 in |
| Depth | 2.31 in |
