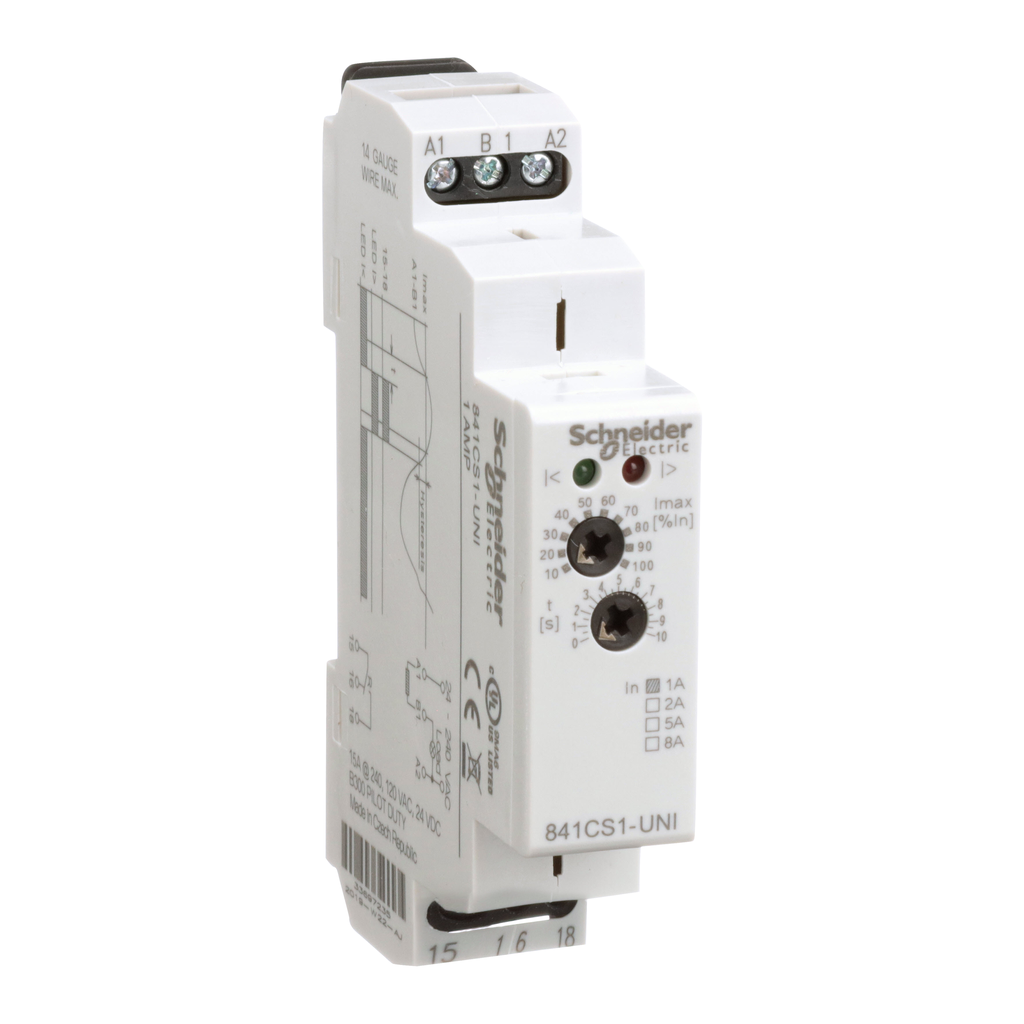

Current sensor relay, SE Relays, SPDT, 15A, 24 to 240 VAC, 1 time scale, 100 mA to 1 A, DIN mounting
The SE Relays 841 series current sensor, solid state circuitry device is used for precise sensing and monitoring the current of one circuit in 100mA to 1A range and switching to another circuit in case of an overcurrent condition. Universal nominal input voltage range 24VAC to 240VAC with ability to manage time settings with adjustment knob from 0.1s to 10s makes 841 series relay suitable for using in wide branches. Relay has SPDT silver alloy contacts, rated 15A. Three-state indication LEDs indicates normal state by green LED and two types of faulted states by blinking red LED as timing state and steady on red LED as energized relay. Direct mount on a 35mm DIN rail, narrow width 17.5mm makes this relay ideal for tight spaces. Finger protections is made according to IEC 60529 IP rating.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Country of Origin | Czechia |
|---|---|
| Width | 17.6 mm |
| Height | 90 mm |
| Weight | 63 g |
| Range Of Product | Legacy |
| Contacts Material | AgNi |
| Product Or Component Type | relay |
| Sensor Type | current sensor |
| Switch Function | SPDT |
| Time Delay Type | adjustable |
| [Us] Rated Supply Voltage | 24...240 V AC 50...60 Hz |
| Minimum Switching Current | 100 mA 5 V |
| Height | 90 mm |
| Maximum Switching Voltage | 250 V |
| Control Type | with adjustment knob front |
| Time Delay Range | 0...10 s |
| Power Consumption In Va | 1.5 VA 24...240 V |
| Net Weight | 63 g |
| [Ie] Rated Operational Current | 15 A at 240 V AC-1 |
| Temperature Drift | < 0.1 %/°C |
| Local Signalling |
|
| Awg Gauge | AWG 14 |
| Tripping Threshold | 0.1...1 A |
| Overvoltage Category | III IEC 60664-1 |
| Mounting Support | 35 mm DIN rail conforming to IEC 60715 |
| Nominal Output Current | 15 A |
| Mechanical Durability | 15000000 cycles |
| Width | 17.6 mm |
| Depth | 64 mm |
| Maximum Horse Power Rating |
|
| Electrical Durability | 30000 cycles |
| Tightening Torque | 0.8-0.8 N.m |
| Breaking Capacity | 4000 VA AC-1 |
| Repeat Accuracy | +/- 1 % |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Toxic Heavy Metal Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | X |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Product Certifications |
|
| Ambient Air Temperature For Operation | -20-55 °C |
| Standards |
|
| Ip Degree Of Protection |
|
| Ambient Air Temperature For Storage | -30-70 °C |
| Dielectric Strength | 4000 V between input and output |
