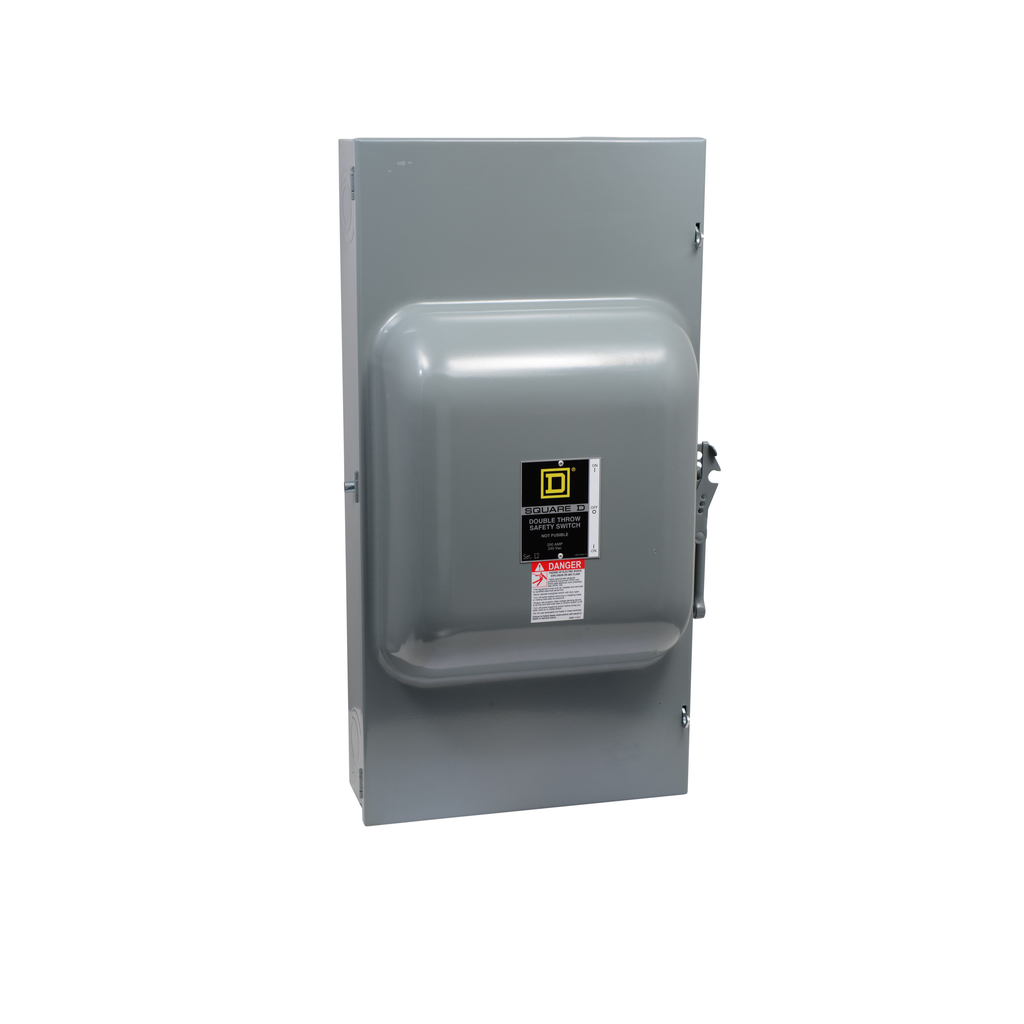

Safety switch, double throw, non fusible, 200A, 240V, 2 pole, 15hp, NEMA 1
The Square D™ by Schneider Electric brand Double Throw Safety Switch is designed to be tough, reliable and provide exceptional performance in the most grueling conditions. Double throw safety switches are designed for Residential, light commercial, and industrial installations. Double throw safety switches transfer a load from one power source to another power source. 30A-100A F Series safety switches provide significantly higher levels of mechanical endurance than NEMA KS-1 or UL98 standards require and switches can be field-converted to transfer a power source from one load to another. These switches come in fusible or non-fusible configurations and my be padlocked in the ON-OFF positions. This Double Throw Safety Switch has a rated current of 200A. This non-fusible disconnect switch is surface mounted. This Double Throw Safety Switch comply's to UL listed certifications. Dimensions for this product are 19.63 in (H),30.88 in (W),9.75 in (D). This procuct comes with an 18 month warranty.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Certifications | UL Listed |
|---|---|
| Warranty | 18 months |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1307076EN |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Circularity Profile | N/A |
| Eu Rohs Directive | Compliant |
| Height | 30.88 in |
| Device Mounting | surface |
| Tightening Torque | 340-340 lbf.in (AWG 6...300 kcmil) |
| Short-Circuit Current | 10 kA H or J |
| Net Weight | 22.6 kg |
| Fuse Type | H or J |
| Awg Gauge | AWG 6...300 kcmil copper or aluminium |
| Width | 19.63 in |
| Depth | 9.75 in |
| Country of Origin | United States |
| Width | 19.63 in |
| Height | 30.88 in |
| Weight | 22.6 kg |
| Disconnector Device Type | non-fusible disconnect switch |
| Product Or Component Type | Double Throw Safety Switch |
| Series Name | general duty |
| Nema Degree Of Protection | NEMA 1 |
| Line Rated Current | 200 A |
| Device Composition | neutral (factory installed) |
| Number Of Poles | 2 |
| [Ue] Rated Operational Voltage |
|
