time delay relay, Legacy, SPDT, 100 ms to 10 days, DIN mounting support, 15A, 12...240V AC DC

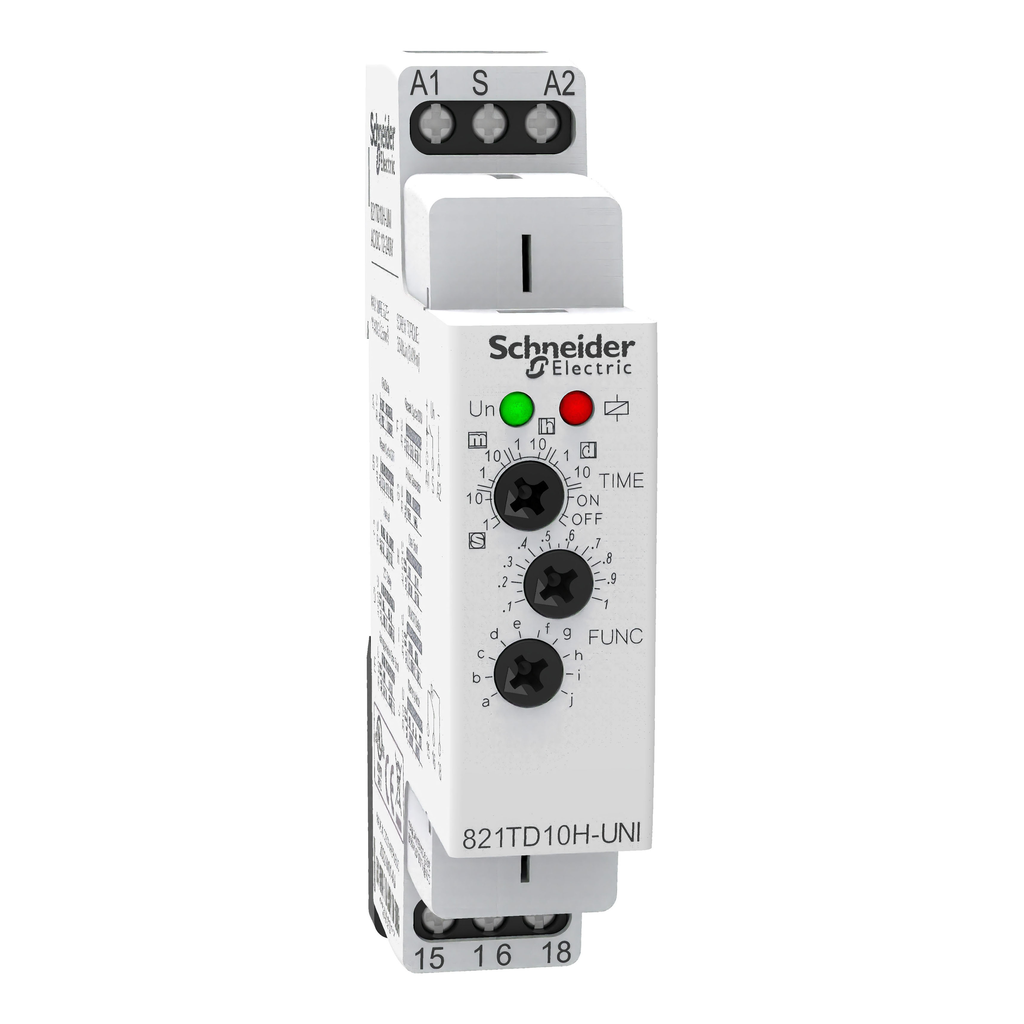

The SE Relays 820 series, time delay relay offers 10 different timing functions with ultra-wide timing range of 100 ms to 10 days and meets most timing requirements. Universal voltage input of 12 to 240 VAC/VDC with contact ratings of 15A, 1/2hp at 120VAC and 1hp at 240 VAC makes it suitable for wide range applications. Contact configaration is performed by silver alloy contacts as SPDT. Slim modular package 17.5mm and 35-mm DIN-rail mounting is ideal for tight spaces and allows easy installation. 2 LED status indicators shows input indication in green LED and output indication in red LED blinking light as timing status relay or red steady on light as energized relay status. Environmentally friendly design is compliant with the European Restriction of Hazardous Substances directive (RoHS).
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Minimum Switching Current | 100 mA 5 V |
|---|---|
| Height | 90 mm |
| Maximum Switching Voltage | 240 V |
| Control Type | with adjustment knob front |
| Time Delay Range |
|
| Voltage Range | 0.85...1.15 Un |
| Power Consumption In Va | 2 VA 240 V |
| Net Weight | 65 g |
| Minimum Pulse Duration | 25 ms |
| Reset Time | 150 ms maximum |
| Electromagnetic Compatibility |
|
| [Ie] Rated Operational Current | 15 A at 240 V AC-1 |
| Temperature Drift | 0.01 %/°C |
| Local Signalling |
|
| Awg Gauge | AWG 14 |
| Overvoltage Category | III IEC 60664-1 |
| Input Voltage | 10 V |
| Mounting Support | 35 mm DIN rail conforming to IEC 60715 |
| Nominal Output Current | 15 A |
| Mechanical Durability | 15000000 cycles |
| [Uimp] Rated Impulse Withstand Voltage | 4 kV 1.2/50 µs IEC 60664-1 |
| Width | 17.6 mm |
| Depth | 64 mm |
| Maximum Power Consumption In W | 1.5 W 24 V |
| Electrical Durability | 30000 cycles |
| Tightening Torque | 0.4-0.4 N.m |
| Breaking Capacity | 4000 VA AC-1 |
| Repeat Accuracy | +/- 0.2 % |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Toxic Heavy Metal Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | X |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Country of Origin | Czechia |
| Width | 17.6 mm |
| Height | 90 mm |
| Weight | 65 g |
| Range Of Product | Legacy |
| Contacts Material | AgNi |
| Product Or Component Type | time delay relay |
| Switch Function | SPDT |
| Time Delay Type | multifunction |
| [Us] Rated Supply Voltage | 12...240 V AC/DC 50...60 Hz |
| Product Certifications |
|
| Ambient Air Temperature For Operation | -20-55 °C |
| Standards | IEC 61812-1 |
| Ip Degree Of Protection |
|
| Ambient Air Temperature For Storage | -30-70 °C |
| Relative Humidity | 95-95 % |
| Dielectric Strength |
|
