Power relay, SE Relays, 25A, 2NO, 24VDC, LED, flag indicator, locking push button, blade terminal, plug-in socket mount

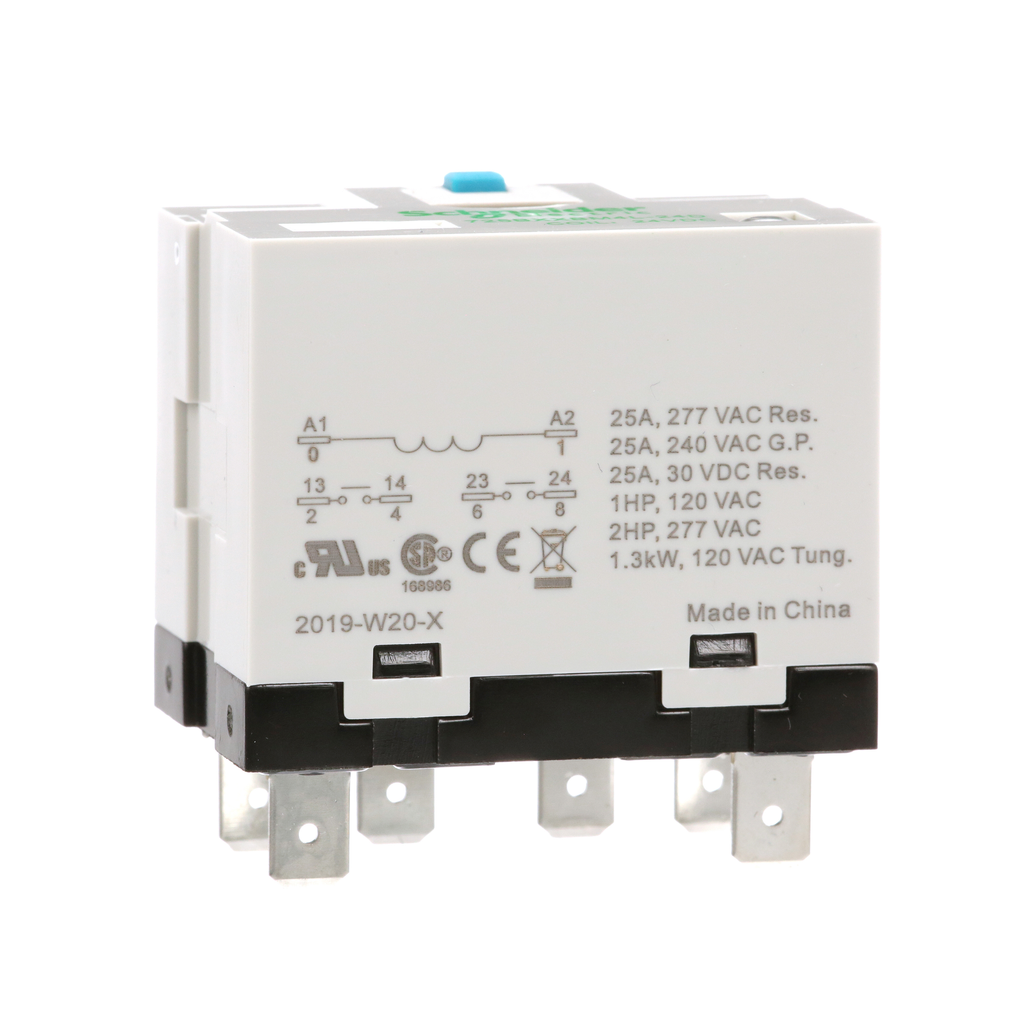

This 725 power relay belongs to the Schneider Electric Harmony electromechanical relays range. 725 power relay has a LED status indicator with Flat (Faston type) terminals supporting Plug-in socket mounting. It’s a 25A 2 NO contact configuration mechanical relay with nominal coil voltage of 24Vdc and coil resistance of 300Ω. The full-feature cover offers push-to-test button, lock-down door, LED, flag indicators, and ID tag to simplify and expedite installation and testing. The push-to-test spring return button helps in testing the contacts and the lock-down door enables forced maintaining of the contacts for testing purposes. It weighs 0.120Kg. It is suitable for high-capacity switching applications such as EV charging, CNC machines, and HVAC compressors. Socket, Protection modules and spring clips are available. It is sold in lots of 10. The 725 relay range with high dielectric strength helps withstand severe voltage surges and spikes which provides protection for surrounding circuits.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Certifications |
|
|---|---|
| Ambient Air Temperature For Operation | -20-55 °C |
| Standards |
|
| Ambient Air Temperature For Storage | -55-100 °C |
| Rated Power In W | 1.3 kW 120 V tungsten |
| Maximum Resistance | 300 Ohm |
| Height | 50 mm |
| Average Coil Consumption | 1.90 W |
| Mounting Support | plug-in |
| Contacts Material | silver alloy contacts |
| Associated Fuse Rating | 32 A gG at 400 V coordination type 2 for power circuit |
| Short-Circuit Current | 3 kA |
| Net Weight | 120 g |
| Maximum Switching Voltage |
|
| Control Type | lockable test button |
| Input Voltage | 19.2...26.4 V DC |
| Wire Stripping Length | 8 mm |
| Catalog Class | 725 |
| [Ie] Rated Operational Current |
|
| Minimum Switching Current | 100 mA 5 V DC |
| Response Time | 30 ms |
| Mechanical Durability | 5000000 cycles |
| Rated Power In Hp |
|
| Width | 33.1 mm |
| Drop-Out Voltage Threshold | DC |
| Depth | 53.05 mm |
| Average Impedance | 2 mOhm |
| Country of Origin | China |
| Length | 8 mm |
| Width | 33.1 mm |
| Height | 50 mm |
| Weight | 120 g |
| Network Frequency | 50/60 Hz |
| Range Of Product | Harmony Electromechanical Relays |
| Product Or Component Type | plug-in relay |
| Series Name | Power |
| Local Signalling |
|
| Contacts Type And Composition | 2 NO |
| Line Rated Current | 25 A |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Toxic Heavy Metal Free | Yes |
