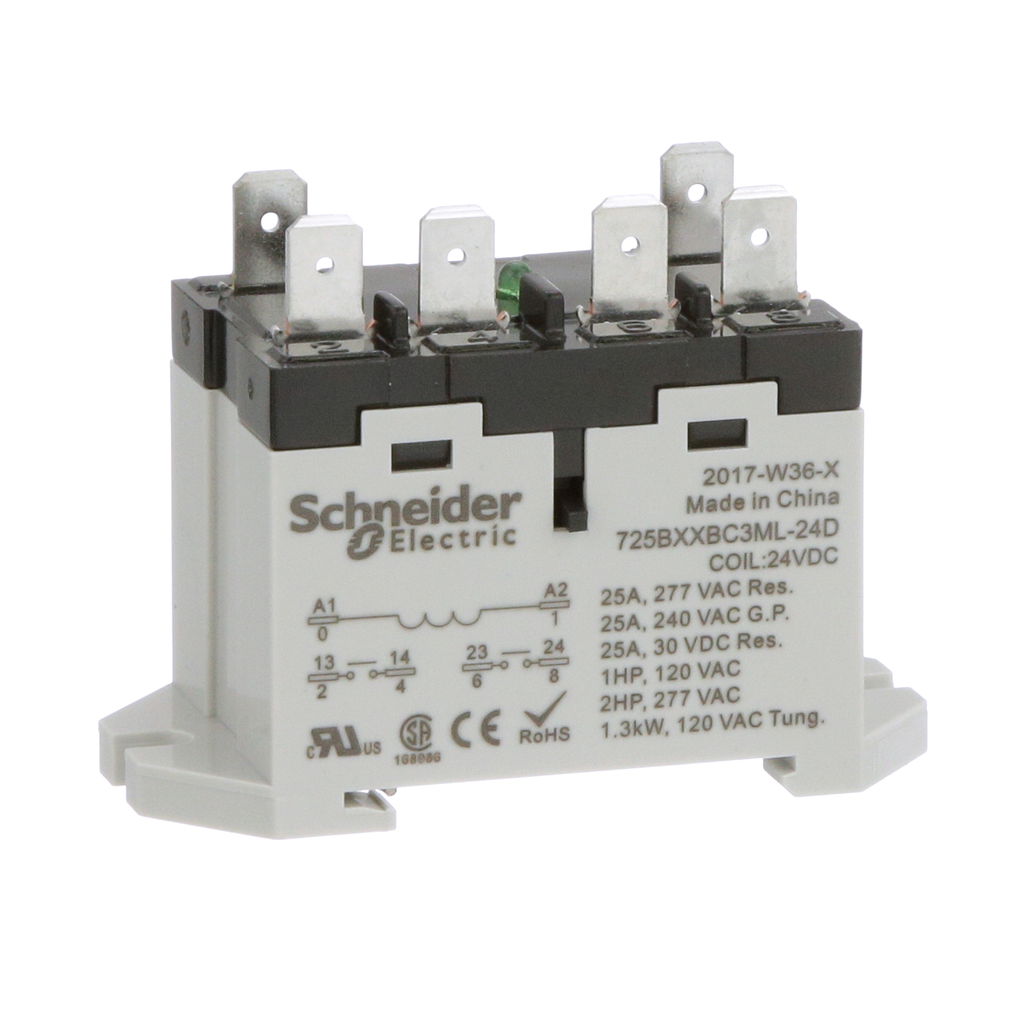

Power relay, SE Relays, 25A, 2NO, 24VDC, LED push button, blade terminals, DIN or panel mount
This 725 power relay belongs to the Schneider Electric Harmony electromechanical relays range. 725 power relay has a LED status indicator with Flat (Faston type) terminals supporting DIN rail or Panel mounting. It’s a 25A 2 NO contact configuration mechanical relay with nominal coil voltage of 24Vdc and coil resistance of 300Ω. The multiple mounting options increases functionality and ease-of-use. It has a side-mounted spring return pushbutton for testing the contacts. It weighs 0.120Kg. It is suitable for high-capacity switching applications such as EV charging, CNC machines, and HVAC compressors. Protection modules and spring clips are available. It is sold in lots of 10. The 725 relay range with high dielectric strength helps withstand severe voltage surges and spikes which provides protection for surrounding circuits.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Rohs Exemption Information | Yes |
|---|---|
| Mercury Free | Yes |
| Toxic Heavy Metal Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | X |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Country of Origin | China |
| Length | 8 mm |
| Width | 34.9 mm |
| Height | 67.7 mm |
| Weight | 120 g |
| Network Frequency | 50/60 Hz |
| Range Of Product | Harmony Electromechanical Relays |
| Product Or Component Type | DIN rail/panel mount relay |
| Series Name | Power |
| Local Signalling | LED indicator test button |
| Contacts Type And Composition | 2 NO |
| Line Rated Current | 25 A |
| Rated Power In W | 1.3 kW 120 V tungsten |
| Maximum Resistance | 300 Ohm |
| Height | 67.7 mm |
| Average Coil Consumption | 1.90 W |
| Mounting Support |
|
| Contacts Material | silver alloy contacts |
| Associated Fuse Rating | 32 A gG at 400 V coordination type 2 for power circuit |
| Short-Circuit Current | 3 kA |
| Net Weight | 120 g |
| Maximum Switching Voltage |
|
| Control Type | test button |
| Input Voltage | 19.2...26.4 V DC |
| Wire Stripping Length | 8 mm |
| Catalog Class | 725 |
| [Ie] Rated Operational Current |
|
| Minimum Switching Current | 100 mA 5 V DC |
| Response Time | 30 ms |
| Mechanical Durability | 5000000 cycles |
| Rated Power In Hp |
|
| Width | 34.9 mm |
| Drop-Out Voltage Threshold | DC |
| Depth | 49.4 mm |
| Average Impedance | 2 mOhm |
| Product Certifications |
|
| Ambient Air Temperature For Operation | -20-55 °C |
| Standards |
|
| Ambient Air Temperature For Storage | -55-100 °C |
