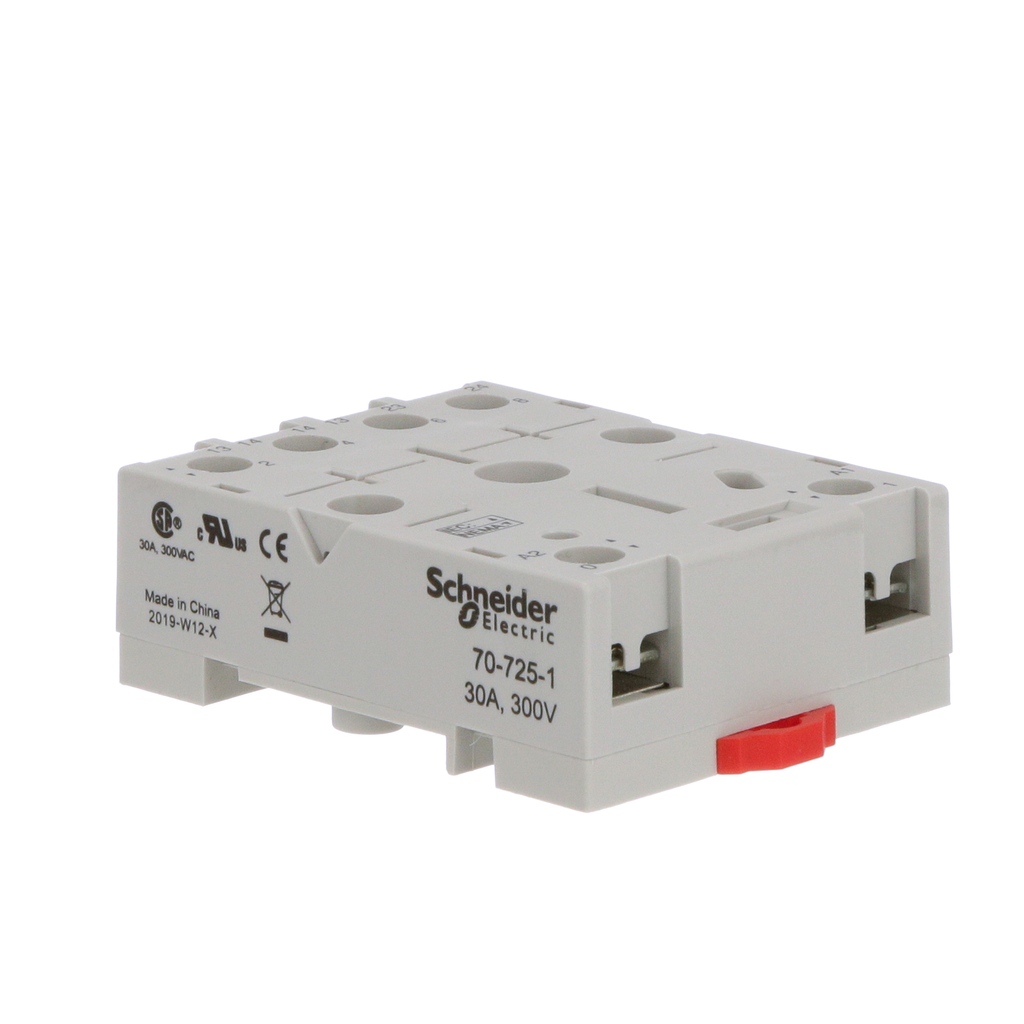

70-725-1
Socket, SE Relays, 30A, 6 pins, screw connectors, separate contact, for 725 power relay
Legacy general purpose relay series accessory , optional socket for 725 series relays with DPDT configuration contacts rated 30A at 300V. Screw clamping connect terminals 6 pins offer customizable solutions including protection modules, holddown clips, and ID tags. Socket is finger-safe according to IP20, and compatible with DIN rail or panel mounting.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Connections - Terminals |
|
|---|---|
| Tightening Torque | screw 1.2 N.m |
| Line Rated Current | 30 A |
| Fixing Mode | clip-on 35 mm symmetrical DIN rail |
| [Ue] Rated Operational Voltage | 300 V |
| Depth | 70.5 mm |
| Net Weight | 67 g |
| Flame Retardance | UL94-V0 |
| Country of Origin | China |
| Weight | 67 g |
| Contacts Type And Composition | 2 NO |
| Range Of Product | Harmony Electromechanical Relays |
| Number Of Terminals | 6 |
| Switch Function | DPST |
| Product Or Component Type | socket |
