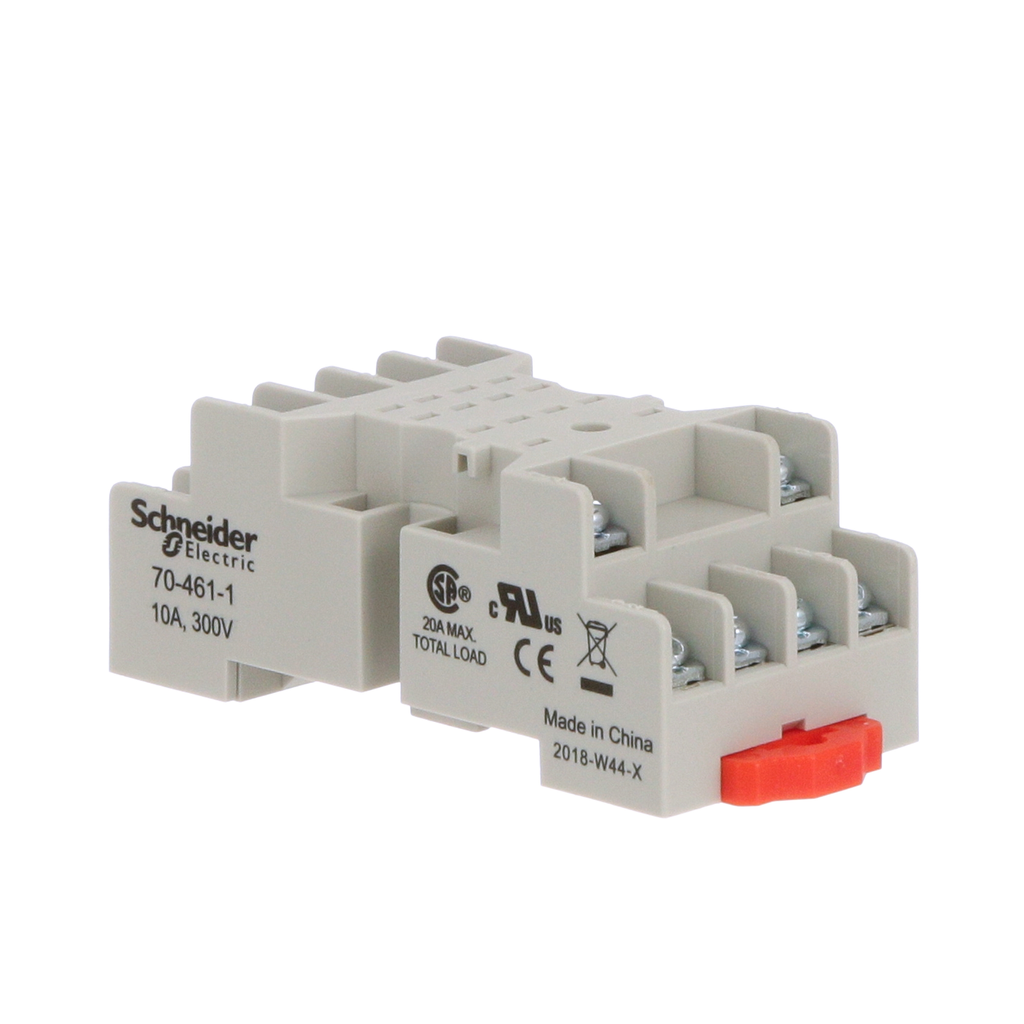

70-461-1 - Socket, SE Relays, 10A, 14 pins, screw clamp terminals, mixed contact, for 782H / 792 relays

70-461-1

Socket, SE Relays, 10A, 14 pins, screw clamp terminals, mixed contact, for 782H / 792 relays

Legacy general purpose relay series accessory , optional socket for 782H/792 series relays with 4PDT configuration contacts rated 10A at 300V. Screw clamping connect terminals 14 pins offer customizable solutions including protection modules, holddown clips, and ID tags. Socket is finger-safe according to IP20, and compatible with DIN rail or panel mounting.

Brand: Schneider Electric

Add to Quote Catalogue

Specifications

Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP1511021EN
Sustainable Offer Status	Green Premium product
Toxic Heavy Metal Free	Yes
California Proposition 65	WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Reach Free Of Svhc	Yes
Weee	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation	X
Circularity Profile	N/A
Eu Rohs Directive	Pro-active compliance (Product out of EU RoHS legal scope)
Connections - Terminals	panel screw clamp terminals, clamping connection capacity:2 x 1.5...2 x 2.5 mm², AWG 16...AWG 14 solid for output panel screw clamp terminals, clamping connection capacity:2 x 1.5...2 x 2.5 mm², AWG 16...AWG 14 stranded for output
Tightening Torque	chassis 0.8 N.m, AWG 16...AWG 14, copper screw < 0.8 N.m
Line Rated Current	10 A
Fixing Mode	by screws, M3 panel
Contact Terminal Arrangement	mixed
Net Weight	50 g
[Ue] Rated Operational Voltage	300 V
Width	30.7 mm
Depth	64 mm
Shape Of Screw Head	combination roundhead
Country of Origin	China
Width	30.7 mm
Weight	50 g
Product Compatibility	relay 792XDX relay 782XDXH
Range Of Product	Harmony Electromechanical Relays
Number Of Terminals	14
Product Or Component Type	socket
Contacts Type And Composition	4 C/O
Switch Function	4PDT
Product Certifications	UL CSA CE
Ambient Air Temperature For Operation	-40-70 °C
Flame Retardance	UL94-V0
Ambient Air Temperature For Storage	-40-105 °C
