5J

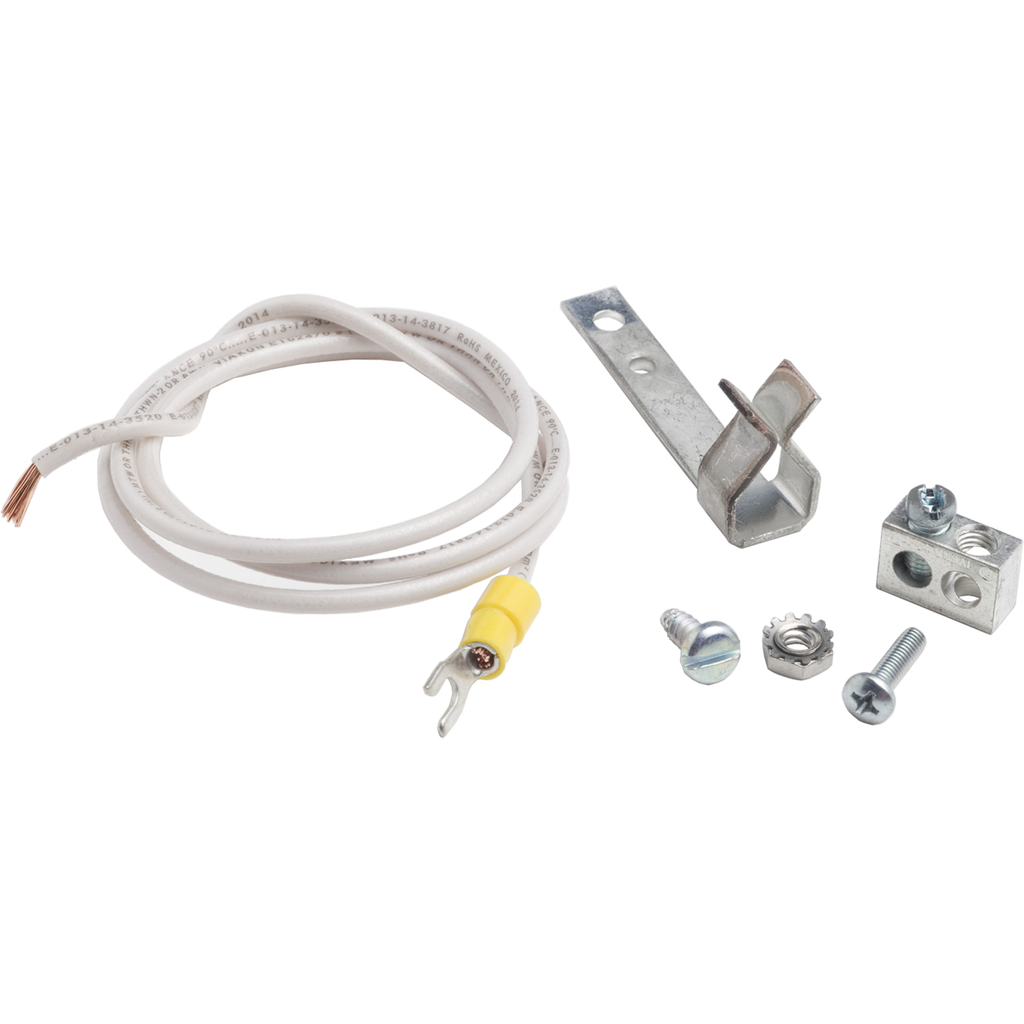

Meter accessory, MP Meter-Pak, jaw kit, 5 jaws, ring/ringless, AWG 12, copper
MP Meter pak are ring type devices that provide all your meter socket needs. Ring type devices are supplied with 4 jaw meter sockets but 5 jaw kits are available separately. Factory installed mechanical lugs, alternate lugs and NEMA/EUSERC lug landing kits are available. This accessory is a jaw kit enabling 5 jaws on ring or ringless meters. It is rated at AWG 12 and in copper.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Rohs Exemption Information | Yes |
|---|---|
| Mercury Free | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Eu Rohs Directive | Compliant with Exemptions |
| Product Certifications | UL Listed |
| Height | 0.5 in |
| Hub Type |
|
| Number Of Jaws | 5 |
| Width | 3.5 in |
| Depth | 3.5 in |
| Awg Gauge | AWG 12 1 copper) |
| Country of Origin | Mexico |
| Width | 3.5 in |
| Height | 0.5 in |
| Range Of Product |
|
| Meter Socket Type |
|
| Warranty | 18 months |
Documents
- 5J Fifth Jaw Assembly Kit Installation Instructions - 40271-129-03 (pdf)
- Spec Sheet
- Digest Catalog 01: Load Centers - 0100CT1901_SEC-01 (pdf)
- Metering Equipment: Section 2 - Digest 179 (2024) - Metering-Equipment-Digest-Catalog-0100CT2401-SEC-02 (pdf)
- Square D EZ Meter-Pak Meter Centers Catalog - 4100CT0701 (pdf)
- Square D QO and Homeline Combination Service Entrance Devices (CSEDs) - 4120CT2201 (pdf)
- Load Centers: Section 1 - Digest 179 (2024) - Load-Centers-CSEDs-Digest-Catalog-0100CT2401-SEC-01 (pdf)
- Digest Catalog 02: Metering Equipment - 0100CT1901_SEC-02 (pdf)
