Home > Schneider Electric > Circuit Breakers > Ground Fault Protection > Vigirex Ground-fault Relay System > 56473TD – Residual current protection relay, Vigirex RH99P, manual time delay, 240VAC, front panel mounting, UL

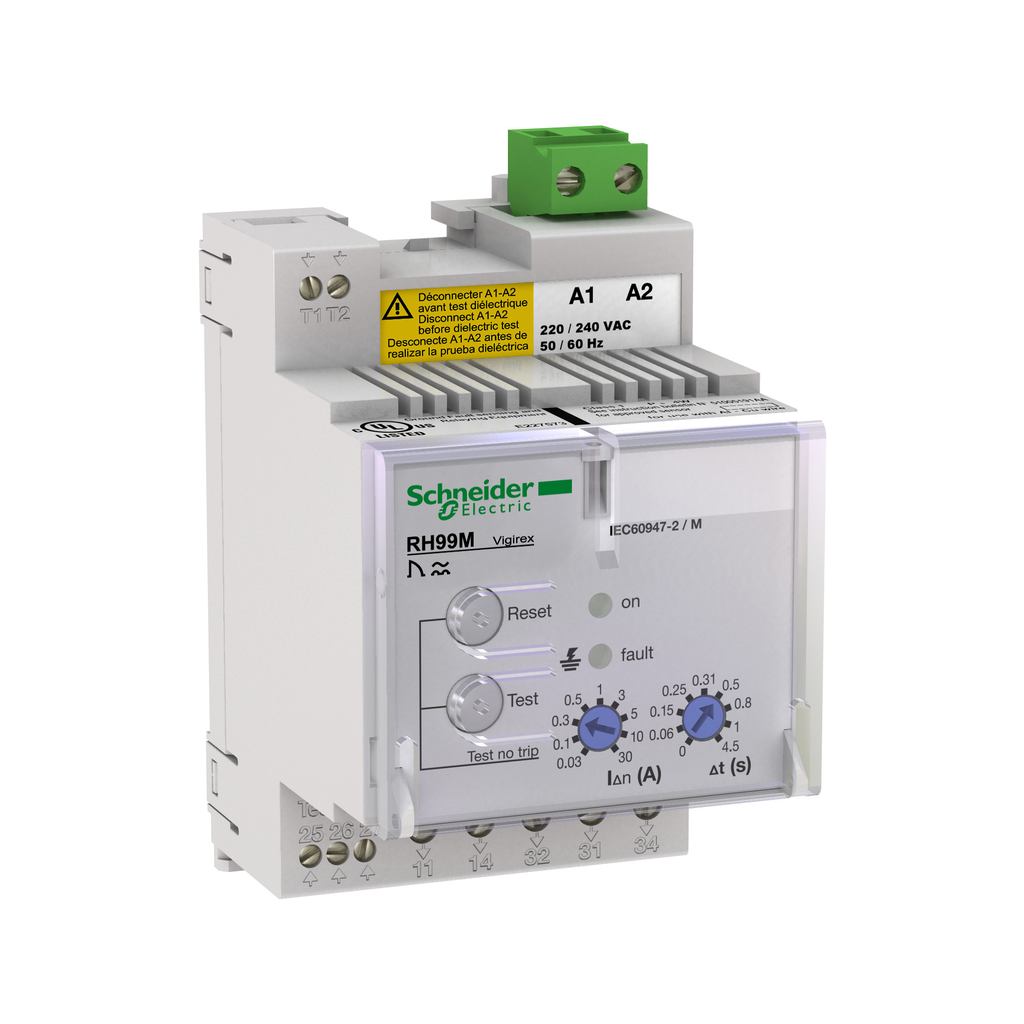

56473TD – Residual current protection relay, Vigirex RH99P, manual time delay, 240VAC, front panel mounting, UL
56473TD
Residual current protection relay, Vigirex RH99P, manual time delay, 240VAC, front panel mounting, UL

Brand: Schneider Electric

Add to Quote Catalogue
Specifications
Ambient Air Temperature For Operation -35-70 °C
Electromagnetic Compatibility
  • conducted and radiated emissionsB CISPR 11
  • conducted radio-frequency immunity test3 IEC 61000-4-6
  • electrostatic discharge immunity test4 IEC 61000-4-2
  • high-energy conducted susceptibility4 IEC 61000-4-5
  • low-energy conducted susceptibility4 IEC 61000-4-4
  • radiated susceptibility3 IEC 61000-4-3
Pollution Degree 3 IEC 60664-1
Ambient Air Temperature For Storage -55-85 °C
Relative Humidity 95-95 % 55-55 °C
Electrical Shock Protection Class class II
Overvoltage Category IV
Warranty 18 months
Rohs Exemption Information Yes
Mercury Free Yes
Environmental Disclosure ENVPEP2310022EN
Sustainable Offer Status Green Premium product
Reach Regulation Reference contains Substances of Very High Concern above the threshold
California Proposition 65 WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
China Rohs Regulation Product out of China RoHS scope. Substance declaration for your information.
Circularity Profile ENVEOLI2310022EN
Eu Rohs Directive Compliant with Exemptions
Ik Degree Of Protection IK07 conforming to EN 50102
Mechanical Robustness
  • fire resistance IEC 60695-2-1
  • IK protection 2 joulesIK07 EN 50102
  • vibrations 13.2...100 Hz0.7 g
  • vibrations 2...13.2 Hz+/- 1 mm
Height 72 mm
Standards
  • EN/IEC 60947-2 Annex M
  • EN/IEC 60755
  • UL 1053
  • CAN/CSA C22.2 No. 144
Type Of Measurement earth fault current internal measurement 80...100 %
Net Weight 0.3 kg
Tamperproof Of Settings protected by sealable cover
Wire Stripping Length
  • auxiliary power supply: 7 mm
  • fault: 7 mm
  • relay test and fault reset: 7 mm
  • sensor: 7 mm
  • voltage presence: 7 mm
Connections - Terminals
  • auxiliary power supply terminal block 0.2-2.5 mm² flexible AWG 24...AWG 12
  • auxiliary power supply terminal block 0.2-2.5 mm² rigid AWG 24...AWG 12
  • auxiliary power supply terminal block 0.25-2.5 mm² flexible with ferrule AWG 24...AWG 12
  • fault terminal block 0.2-2.5 mm² flexible AWG 24...AWG 12
  • fault terminal block 0.2-2.5 mm² rigid AWG 24...AWG 12
  • fault terminal block 0.25-2.5 mm² flexible with ferrule AWG 24...AWG 12
  • relay test and fault reset terminal block 0.2-2.5 mm² flexible AWG 24...AWG 12
  • relay test and fault reset terminal block 0.2-2.5 mm² rigid AWG 24...AWG 12
  • relay test and fault reset terminal block 0.25-2.5 mm² flexible with ferrule AWG 24...AWG 12
  • sensor terminal block 0.2-2.5 mm² flexible AWG 24...AWG 12
  • sensor terminal block 0.2-2.5 mm² rigid AWG 24...AWG 12
  • sensor terminal block 0.25-2.5 mm² flexible with ferrule AWG 24...AWG 12
  • voltage presence terminal block 0.2-2.5 mm² flexible AWG 24...AWG 12
  • voltage presence terminal block 0.2-2.5 mm² rigid AWG 24...AWG 12
  • voltage presence terminal block 0.25-2.5 mm² flexible with ferrule AWG 24...AWG 12
Cut-Out Dimensions 68 x 68 mm
Ip Degree Of Protection
  • IP40 on front face: conforming to EN/IEC 60529
  • IP30 on side parts: conforming to EN/IEC 60529
  • IP20 on connection terminals: conforming to EN/IEC 60529
Test Function
  • local
  • remote test
Monitoring
  • electronics continuous)
  • power supply continuous)
  • relay/sensor link continuous)
Width 72 mm
Depth 78 mm
Tightening Torque
  • auxiliary power supply: 0.6-0.6 N.m
  • fault: 0.6-0.6 N.m
  • relay test and fault reset: 0.6-0.6 N.m
  • sensor: 0.6-0.6 N.m
  • voltage presence: 0.6-0.6 N.m
Country of Origin France
Width 72 mm
Height 72 mm
Weight 0.3 kg
Type Of Setting selector
Earth Leakage Current 0.03-30 A
Mounting Support front panel
Range Compatibility
  • Vigirex TOA earth leakage current sensor
  • Vigirex A earth leakage current sensor
  • Vigirex L earth leakage current sensor
Network Rated Voltage
  • 1000-1000 V - AC 50/60 Hz maximum)
  • 1000-1000 V - AC 400 Hz maximum)
[Ithe] Conventional Enclosed Thermal Current 8 A
Earthing System
  • TT
  • TN-S
Relay Application monitoring relay
Product Or Component Type monitoring relay
Range Vigirex
Residual Earth-Leakage Time Delay Adjustment Type
  • instantaneous for 0.03-0.03 A
  • adjustable 9 settings 0-4.5 s for 0.03-30 A
Residual Earth-Leakage Sensitity Adjustment Type adjustable 9 settings
Power Consumption In Va 4 VA
[Us] Rated Supply Voltage 240 V AC 50/60 Hz 70...110 %
[Uimp] Rated Impulse Withstand Voltage 8 kV
Threshold Setting 0.03...30 A alarm
Minimum Load 10 mA 12 V
Device Short Name RH99P
