56053

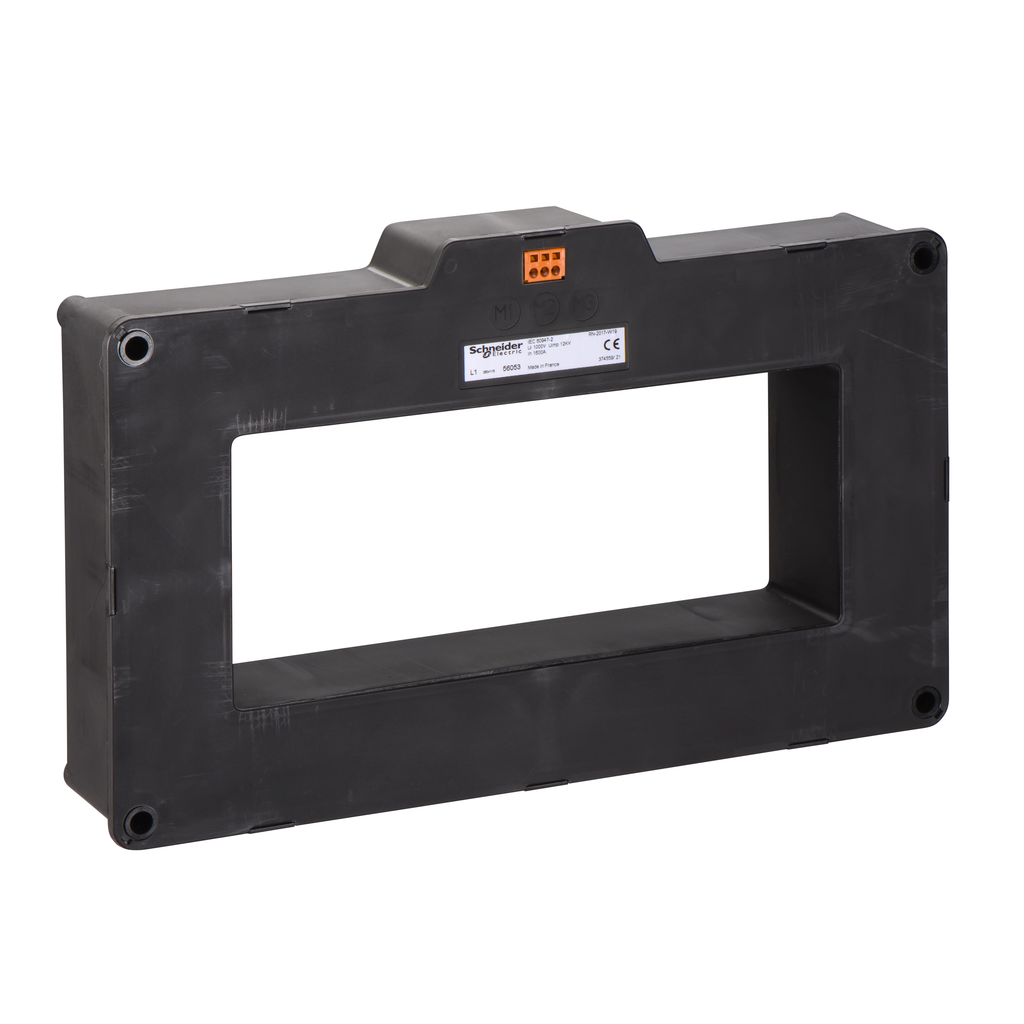

Rectangular sensor L1 type, VigiPacT, 280mmx115mm, 1600A
This toroid is dedicated to VigiPacT type A residual current protection and monitoring relays. It allows the measurement of a current rating up to 1600A for VigiPacT monitoring and protection relays. The transformer ratio is 1/1000. The inner dimensions of the toroid are 280mm X 155mm and the weight is 11kg. The wiring size must be from 0.5 to 2.5 mm². The wiring length should not exceed 10m.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Certifications | CE |
|---|---|
| Ambient Air Temperature For Operation | -35-80 °C |
| Standards | IEC 60947-2 |
| Environmental Characteristic |
|
| Ambient Air Temperature For Storage | -55-100 °C |
| Ip Degree Of Protection |
|
| Warranty | 18 months |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Toxic Heavy Metal Free | Yes |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Eu Rohs Directive | Compliant |
| Mounting Mode |
|
| Residual Short-Circuit Withstand Current | 85 kA / 0.5 s |
| [Uimp] Rated Impulse Withstand Voltage | 12 kV |
| Connections - Terminals | screw connection 0.2-2.5 mm² |
| Net Weight | 13.26 kg |
| Height |
|
| Width | 381 mm |
| Overvoltage Category | IV |
| Depth | 71 mm |
| [Icw] Rated Short-Time Withstand Current | 100 kA 0.5 s |
| Transformer Ratio | 1/1000 |
| Country of Origin | United States |
| Weight | 13.26 kg |
| Range Compatibility |
|
| Product Or Component Type | earth leakage current sensor |
| Range | VigiPacT |
| [Ie] Rated Operational Current | 1600 A |
| Current Transformer Type | rectangular sensor |
| Device Application | equipment monitoring and control |
| Device Short Name | L |
