50440 - Closed toroid A type, VigiPacT, Vigilohm, MA120, inner diameter 120mm, rated current 250A

50440

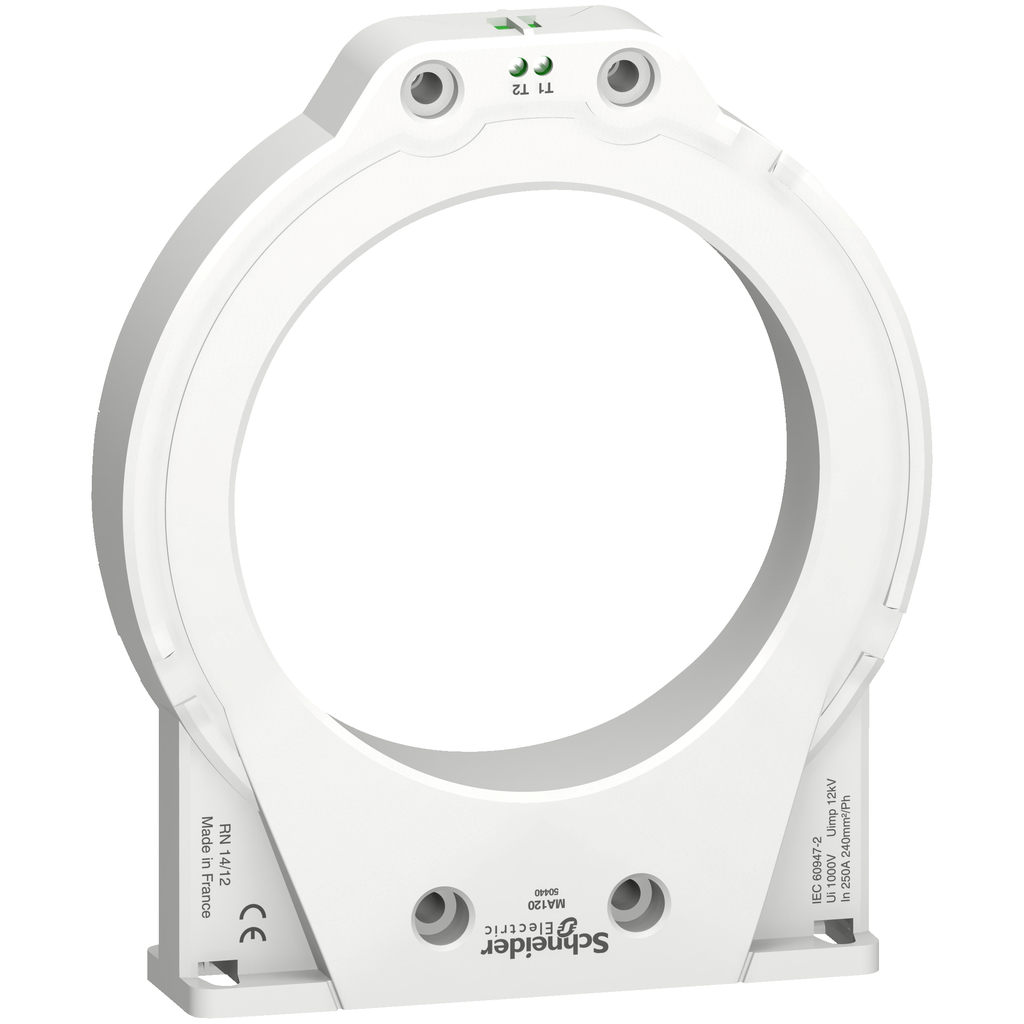

Closed toroid A type, VigiPacT, Vigilohm, MA120, inner diameter 120mm, rated current 250A

This toroid is dedicated to Vigilohm Insulation Fault locators, and to VigiPacT type A residual current protection and monitoring relays. It allows the monitoring of the injected component from Vigilohm Insulation Monitor, and the measurement of a current rating up to 250A for VigiPacT monitoring and protection relays. The transformer ratio is 1/1000. The inner diameter of the toroid is 120 millimeters and the weight is 0.450kg. The cables must be centered within the toroid and the diameter represented by all these cables should not exceed 60 millimeters. The maximum cross section per phase (R, S, T, N) is 240mm² for a copper conductor.

Brand: Schneider Electric

Add to Quote Catalogue

Specifications

Product Certifications	CE
Ambient Air Temperature For Operation	-35-70 °C
Standards	IEC 60947-2
Environmental Characteristic	exposure to damp heat not in service 25...55 °C, RH 95 %) 28 cycles IEC 60068-2-30 salt mistKb/2 IEC 60068-2-52 exposure to damp heat in servicecategory C2 48 hours IEC 60068-2-56
Pollution Degree	level 3 IEC 60664-1
Ambient Air Temperature For Storage	-55-85 °C
Ip Degree Of Protection	connectors IP20 IP30
Warranty	18 months
Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP2310023EN
Sustainable Offer Status	Green Premium product
Toxic Heavy Metal Free	Yes
Reach Regulation	Free of Substances of Very High Concern above the threshold
California Proposition 65	WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Reach Free Of Svhc	Yes
Weee	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation	Pro-active China RoHS declaration (out of China RoHS legal scope)
Circularity Profile	ENVEOLI2310023EN
Eu Rohs Directive	Compliant
Mounting Mode	fixed cables) fixed plain backplate) fixed profiled sheet metal) fixed slotted backplate) clip-on DIN rail)
Network Frequency	45...440 Hz
Height	164 mm
Residual Short-Circuit Withstand Current	85 kA / 0.5 s IEC 60947-2
[Uimp] Rated Impulse Withstand Voltage	12 kV
Network Type	AC/DC
[Ui] Rated Insulation Voltage	1000 V
Connections - Terminals	screw connection 0.22-0.22 mm²
Net Weight	0.59 kg
Cable Outer Diameter	60-60 mm 240-240 mm²
Calorific Value	3.89 MJ
Width	190 mm
Overvoltage Category	IV
Depth	44 mm
[Icw] Rated Short-Time Withstand Current	85 kA 0.5 s
Diameter	inner 120 mm
Transformer Ratio	1/1000
Country of Origin	United States
Width	190 mm
Height	164 mm
Weight	0.59 kg
Range Compatibility	VigiPacT RH10M residual current protection relay VigiPacT RH10P residual current protection relay VigiPacT RH21M residual current protection relay VigiPacT RH21P residual current protection relay VigiPacT RH68M residual current protection relay VigiPacT RH86M residual current protection relay VigiPacT RH86P residual current protection relay VigiPacT RH99M residual current protection relay VigiPacT RH99P residual current protection relay VigiPacT RH197M residual current protection relay VigiPacT RH197P residual current protection relay VigiPacT RHU residual current protection relay VigiPacT RHUs residual current protection relay VigiPacT RMH residual current protection relay
Product Or Component Type	earth leakage current sensor
Range	VigiPacT
[Ie] Rated Operational Current	250 A
Current Transformer Type	A type closed toroid
Device Application	equipment monitoring and control
Device Short Name	MA120
