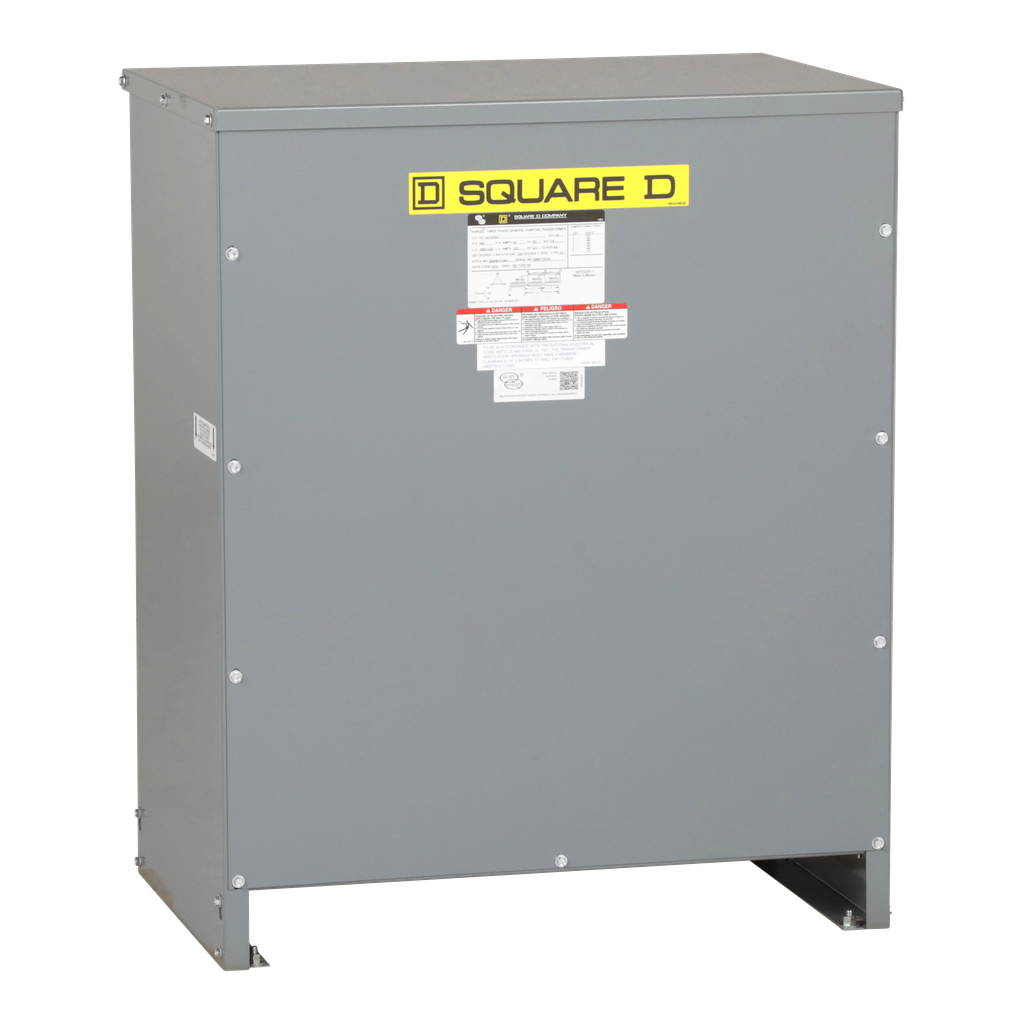

45T3HNV
Transformer, dry type, nonventilated, 45kVA, 3 phase, 480V primary, 208Y/120V secondary, 19E, 150C rise
Specifications
| Country of Origin | United States |
|---|---|
| Primary Voltage | 480 V delta |
| Secondary Voltage | 208Y/120 V |
| Temperature Rise | 150 °C |
| Number Of Tap-Offs | 6 2.5 % 2+ 4- |
| Product Or Component Type | Non-Ventilated Transformer |
| Phase | 3 phase |
| Material | aluminium |
| Rated Power In Va | 45 kVA |
| Box Number | 19E |
| Insulation Temperature | 220 °C |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Circularity Profile | N/A |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1311012EN |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| Eu Rohs Directive | Compliant |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Phenyl Glycidyl Ether, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| Warranty | 18 months |
