Standard opening voltage release MX, ComPacT NS630b/NS3200, fixed, 24/30VDC, 24VAC, spare part

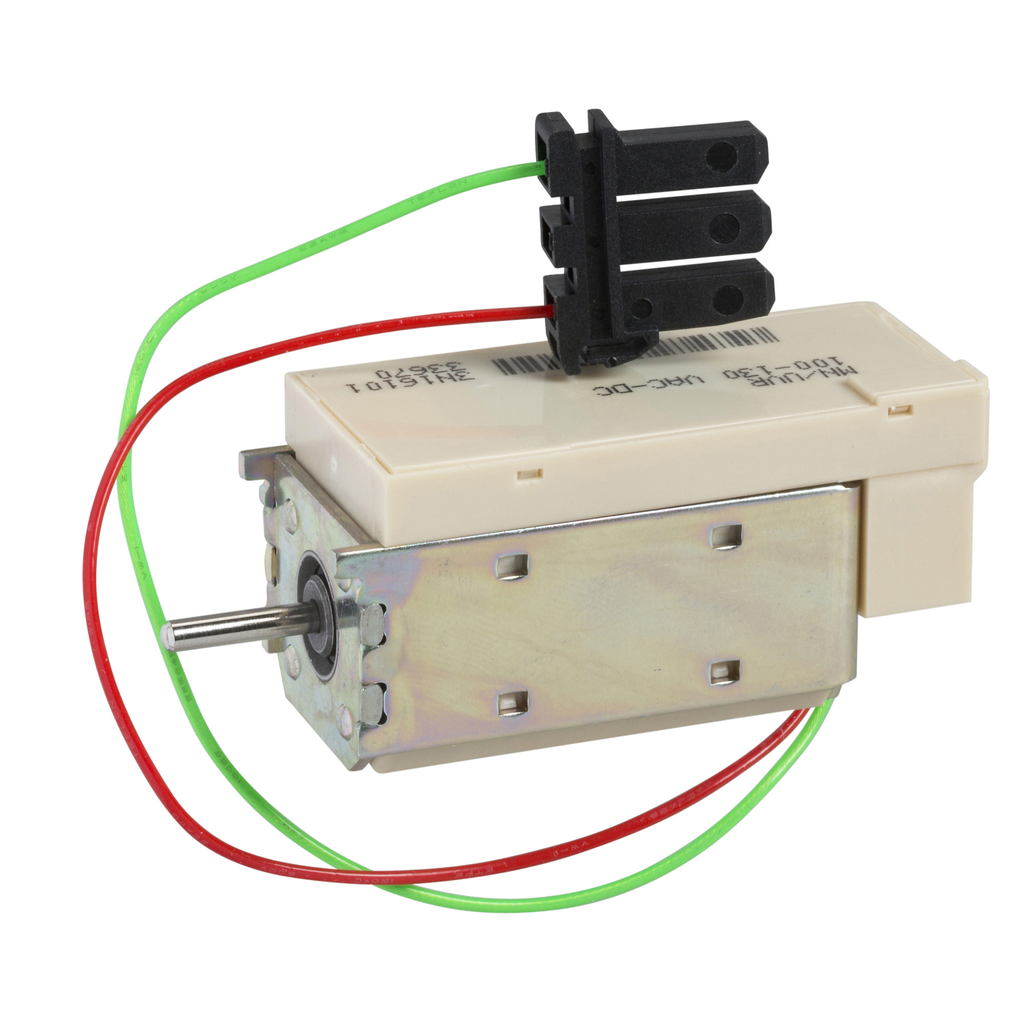

This is a MX shunt trip release for Compact NS 630b to Compact NS 3200 devices. Its rated voltage is 24VDC to 30VDC or 24VAC 50/60Hz. It is an auxiliary used for emergency off or remote opening applications. This auxiliary opens the circuit breaker when the control voltage Un rises above 70% of its rated voltage Un. It complies with IEC 60947-2 standard. Compact NS 630b to Compact NS 3200 device can be equipped with 1 MX or 1 MN auxiliary.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Country of Origin | United States |
|---|---|
| [Uc] Control Circuit Voltage |
|
| Range Of Product |
|
| Product Or Component Type | voltage release |
| Range | ComPacT |
| Control Type | standard |
| Mounting Mode | fixed |
| Voltage Release Type |
|
| Range Compatibility | Galaxy VL |
| Device Application | control |
| Device Short Name | MX |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2307032EN |
| Sustainable Offer Status | Green Premium product |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Circularity Profile | ENVEOLI2307032EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Supply Holding Power | 4.5 VA |
| Accessory / Separate Part Category |
|
| Response Time |
|
| Threshold Tripping Voltage | 0.7...1.1 x Un opening |
| Warranty | 18 months |
