3112351450

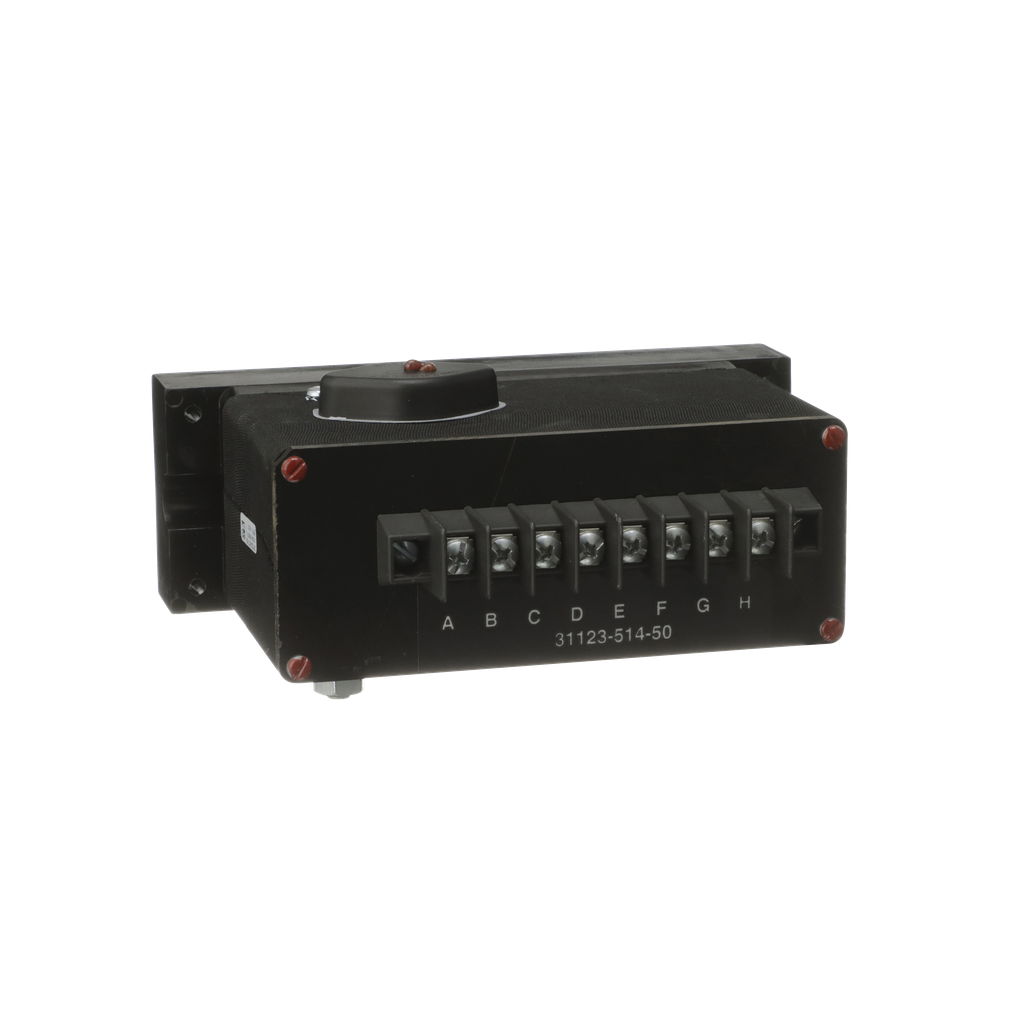

NEMA Motor Starter, Type S, replacement coil excitation control module, NEMA size 6 or 7 starter
This replacement coil excitation control module is used in any 8502SH or 8502SJ NEMA Size 6 contactor, an 8536SH or 8536SJ NEMA Size 7 starter.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Country of Origin | United States |
|---|---|
| Range Of Product | type S |
| Accessory / Separate Part Category | replacement part |
| Product Or Component Type | control module |
| Warranty | 18 months |
| Eu Rohs Directive | Not applicable, out of EU RoHS legal scope |
Documents
- 8502SH and 8536SH, 2- and 3-Pole AC Magnetic Contactors and 3-Pole AC Magnetic Starters with Motor Logic; Plus Solid-State Overload Relay Installation Instructions - 30072-013-111 (pdf)
- 8502SH/8536SH Size 6 AC Magnetic Contactors and Starters, Series B, 2 & 3 Poles Installation Instructions - 30072-013-12 (pdf)
- 8903SJ, 800 A Lighting Contactor, Separate Control Installation Instructions - 30072-151-58_01 (pdf)
- 8903SY and 8903SZ 400 and 600 A Electrically Held AC Magnetic Lighting Contactors, Series B Installation Instructions - 30072-013-14 (pdf)
- 8502SJ and 8536SJ, A tor Logic; Solid-State Overload Relay, Size 7, 2- and 3-Pole Series C Installation Instructions - 30072-013-59 (pdf)
- 8903SJ Electrically Held AC Magnetic Lighting Contactors, 800 A Installation Instructions - 30072-013-15_01 (pdf)
- Digest Catalog 16: NEMA and Definite Purpose Contactors and Starters - 0100CT1901_SEC-16 (pdf)
- Spec Sheet
