31111

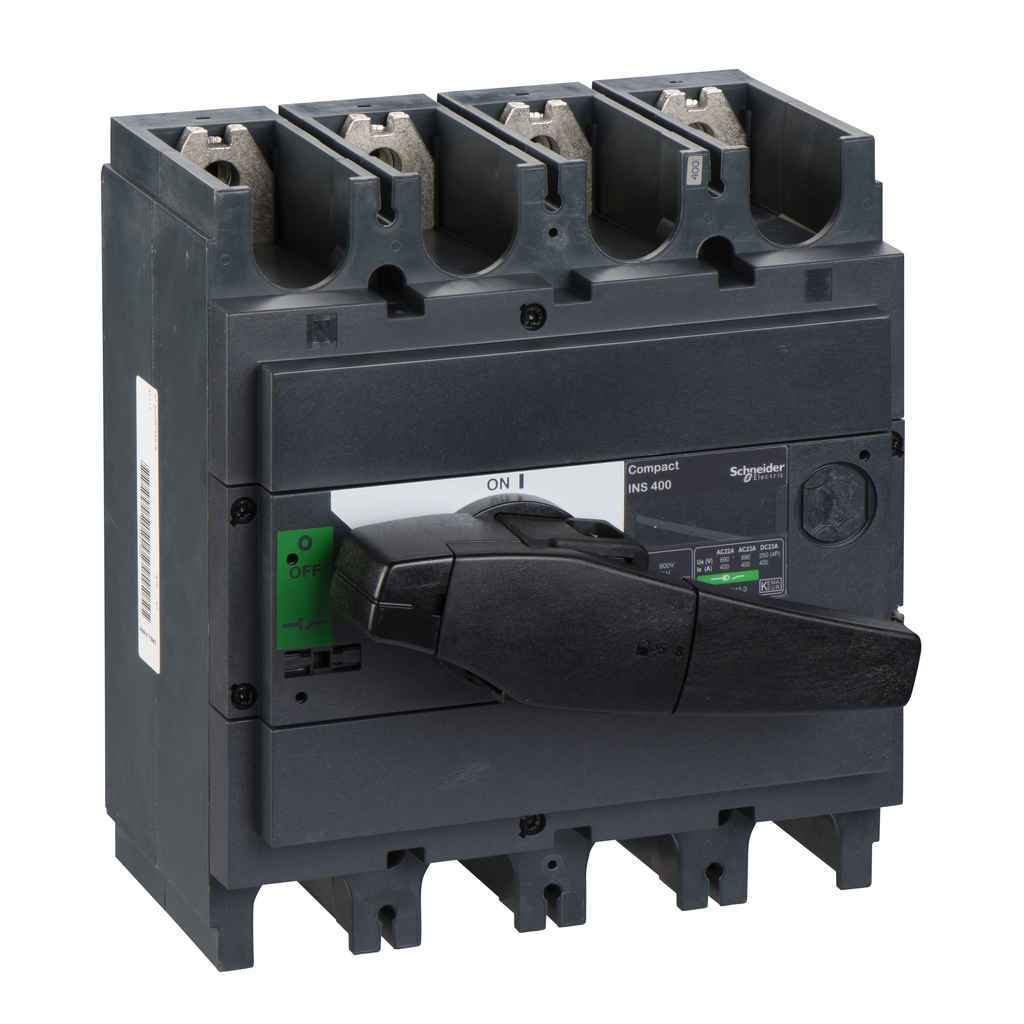

switch disconnector, Compact INS400, 400A, standard version with black rotary handle, 4 poles
This Compact INS400 is a 4 poles non-automatic switch-disconnector with black rotary handle. It is suitable for isolation with positive contact indication, as defined by IEC 60947-1 and IEC60947-3 standards. The operational current is 400A at 415VAC in categories AC22A and AC23A. The rated voltage is 690VAC 50/60Hz or 250VDC. The black rotary handle is designed to offer easy operation and high performance in interruption of currents. Compact INS400 is a class II insulation level front-face device as per IEC 60664 standard.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Certifications |
|
|---|---|
| Ik Degree Of Protection | IK07 conforming to EN 50102 |
| Ambient Air Temperature For Operation | -25-70 °C |
| Standards |
|
| Ip Degree Of Protection | IP40 conforming to IEC 60529 |
| Ambient Air Temperature For Storage | -50-85 °C |
| Warranty | 18 months |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1304025 |
| Sustainable Offer Status | Green Premium product |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Circularity Profile | ENVEOLI1304025 |
| Eu Rohs Directive | Compliant with Exemptions |
| Height | 205 mm |
| Connection Pitch | 45 mm |
| Mounting Support |
|
| Downside Connection | front |
| Handle Colour | black |
| Net Weight | 4.9 kg |
| Control Type | direct front rotary handle |
| Upside Connection | front |
| Mounting Mode | fixed |
| Electrical Durability |
|
| Mechanical Durability | 10000 cycles |
| Width | 185 mm |
| Depth | 130 mm |
| [Icw] Rated Short-Time Withstand Current |
|
| Rated Duty | uninterrupted |
| Maximum Power |
|
| Country of Origin | United States |
| Width | 185 mm |
| Height | 205 mm |
| Weight | 4.9 kg |
| Network Frequency | 50/60 Hz |
| [Ith] Conventional Free Air Thermal Current | 400 A 60 °C |
| [Ue] Rated Operational Voltage |
|
| Contact Position Indicator | yes |
| Network Type |
|
| Visible Break | no |
| Product Or Component Type | switch disconnector |
| Product Name | ComPacT INS |
| Range | ComPact |
| Pollution Degree | 3 |
| [Icm] Rated Short-Circuit Making Capacity |
|
| [Ui] Rated Insulation Voltage | 750 V AC 50/60 Hz |
| Suitability For Isolation | yes |
| [Ie] Rated Operational Current |
|
| Poles Description | 4P |
| [Uimp] Rated Impulse Withstand Voltage |
|
