NEMA Motor Starter, Type S, replacement coil, Series A, 110/120VAC 50/60Hz, NEMA size 5 starter and 8903SX lighting

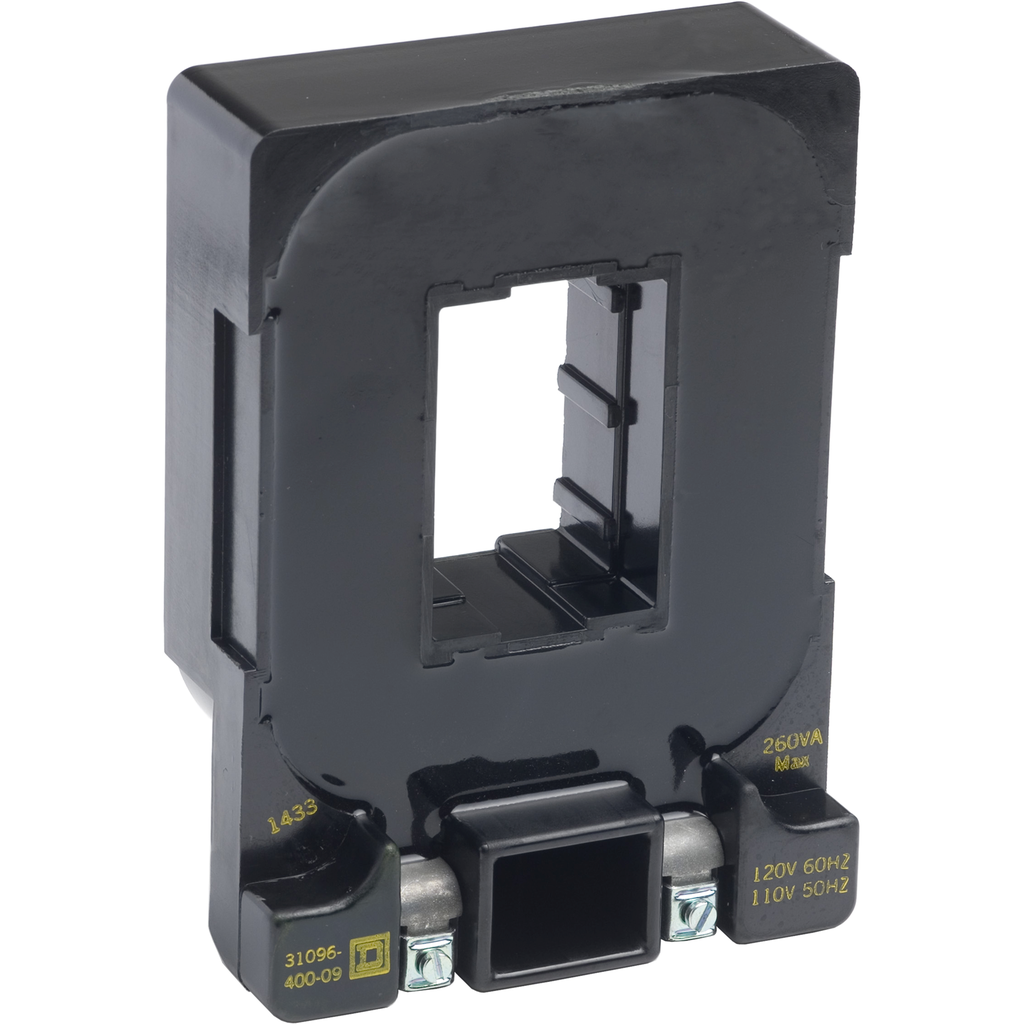

The coil can be easily replaced in a Type S contactor or starter. By changing out the coil, the contactor or starter can be used in different control circuit voltage applications. This will also save the cost of a whole new contactor or starter if the coil were to fail. This coil is used in an 8502SG Series A contactor, an 8536SG Series A starter or an 8903SX Series A lighting contactor. The coil is rated for 110/120 VAC 50/60 Hz. The inrush power of this coil is 2970 VA. It has an average sealed consumption of 212 VA. This coil has a height of 140.5 mm, a width of 101.2 mm. Coil is fully encapsulated to protect it. Coil has screw clamp connections.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Eu Rohs Directive | Not applicable, out of EU RoHS legal scope |
|---|---|
| Average Consumption |
|
| [Ue] Rated Operational Voltage |
|
| Height | 140.5 mm |
| Nema Size | 5 |
| Inrush Power In Va | 2970 VA |
| Width | 101.2 mm |
| Depth | 45.3 mm |
| Country of Origin | United States |
| Width | 101.2 mm |
| Height | 140.5 mm |
| Accessory / Separate Part Destination |
|
| Product Or Component Type | coil |
| Warranty | 18 months |
Documents
- Digest Catalog 16: NEMA and Definite Purpose Contactors and Starters - 0100CT1901_SEC-16 (pdf)
- Square D NEMA Contactors and Starters Accessories Catalog - 9999CT9701R0817 (pdf)
- Spec Sheet
- 8502SG/8536SG, Form Y500, Size 5 AC Magnetic 2- and 3-Pole Contactors and 3-Pole Starters, Series A Installation Instructions - 30072-013-16A (pdf)
- 8502SG and 8536SG, AC Magnetic Contactors and Starters with Motor Logic; Solid-State Overload Relay, Size 5 - 30072-013-47 (pdf)
- 8502SG and 8536SG, AC Magnetic Contactors and Starters, Size 5, Series A, 2- and 3-Pole Installation Instructions - 30072-013-18 (pdf)
