NEMA Motor Starter, Type S, replacement coil, 220/240VAC 50/60Hz, 2 or 3 pole, NEMA Size 2 starters, 8903SP lighting

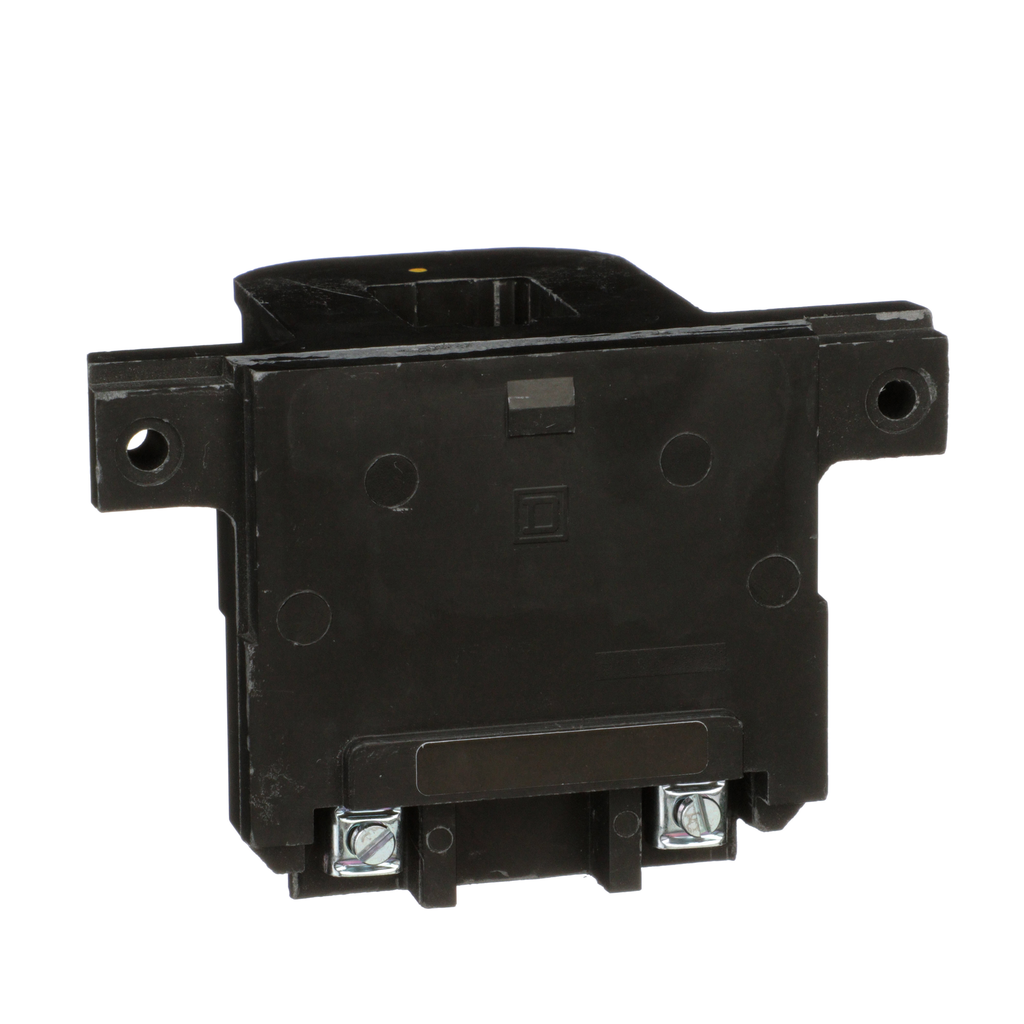

The coil can be easily replaced in a Type S contactor or starter. By changing out the coil, the contactor or starter can be used in different control circuit voltage applications. This will also save the cost of a whole new contactor or starter if the coil were to fail. This coil is used in an 8502SD contactor, an 8536SD starter or an 8903SP lighting contactor. This coil is rated for 220/240 VAC 50/60 Hz. The inrush power of this coil is 311 VA. It has an average sealed consumption of 37 VA. This coil has a height of 66.2 mm, a width of 101.1 mm and a depth of 61.7 mm. Coil is fully encapsulated to protect it. Coil has screw clamp connections.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Accessory / Separate Part Destination |
|
|---|---|
| Product Or Component Type | coil |
| Warranty | 18 months |
| Average Consumption |
|
| [Ue] Rated Operational Voltage |
|
| Height | 66.2 mm |
| Nema Size | 2 |
| Inrush Power In Va |
|
| Width | 101.1 mm |
| Depth | 61.7 mm |
| Eu Rohs Directive | Not applicable, out of EU RoHS legal scope |
Documents
- Spec Sheet
- Square D NEMA Contactors and Starters Accessories Catalog - 9999CT9701R0817 (pdf)
- Digest Catalog 16: NEMA and Definite Purpose Contactors and Starters (SEP 2022) - 0100CT1901_SEC-16_SEP2022 (pdf)
- 8502SD and 8536SD, AC Magnetic Contactors and Starters with Motor Logic Plus Solid-State Overload Relay, Size 2, Series A, Form B, 3- and 5-Pole Installation Instructions - 30072-013-107 (pdf)
- Type SD AC Magnetic Contactors and Starters Installation Instructions - 30072-013-11 (pdf)
- 8903SM and 8903SP, 30 A and 60 A Mechanically Held AC Magnetic Lighting Contactors, Mechanical Latch Installation Instructions - 30072-013-84 (pdf)
- Class 8903 - 30 and 60 A Mechanically Held AC Magnetic Lighting Contactors, Types SM and SP, Series A Installation Instructions - 8903-363 (pdf)
