NEMA Motor Starter, Type S, replacement coil, 110/120VAC 50/60Hz, NEMA Size 00, 0 and 1 starters and 8903SM lighting

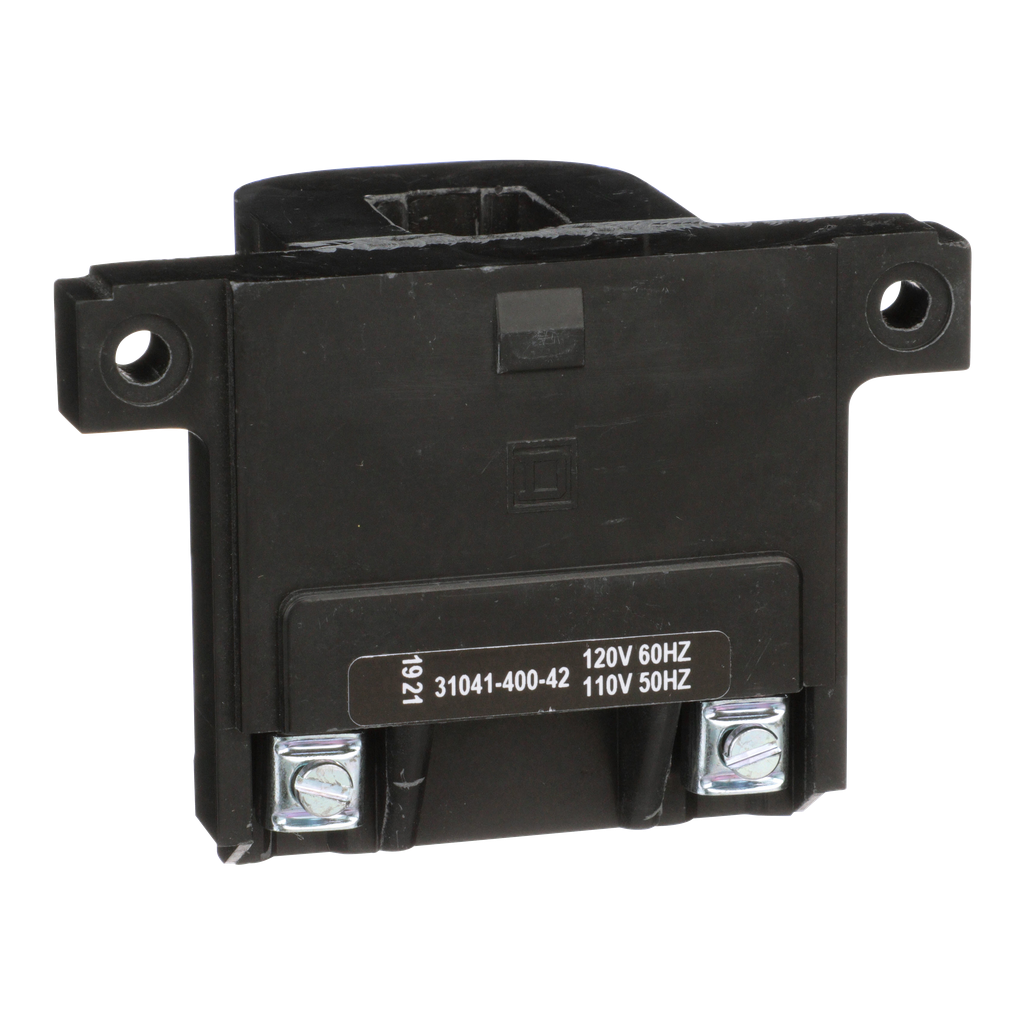

The coil can be easily replaced in Type S contactors or starters. By changing out the coil, the contactor or starter can be used in different control circuit voltage applications. This will also save the cost of a whole new contactor or starter if the coil were to fail. This coil is used in an 8502SA, series A, 8502SB, or 8502SC contactor, in an 8536SA, series A, 8536SB, or 8536SC starter or an 8903SM lighting contactor. The coil is rated for 110/120 VAC 50/60 Hz. The inrush power of this coil is 245 VA. It has an average sealed consumption of 27 VA. This coil has a height of 54.7 mm, a width of 81.5 mm and a depth of 48.3 mm. Coil is fully encapsulated to protect it. Coil has screw clamp connections.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Accessory / Separate Part Destination |
|
|---|---|
| Product Or Component Type | coil |
| Warranty | 18 months |
| Average Consumption |
|
| [Ue] Rated Operational Voltage |
|
| Height | 54.7 mm |
| Nema Size |
|
| Inrush Power In Va |
|
| Width | 81.5 mm |
| Depth | 48.3 mm |
| Eu Rohs Directive | Not applicable, out of EU RoHS legal scope |
