3090SCCT083

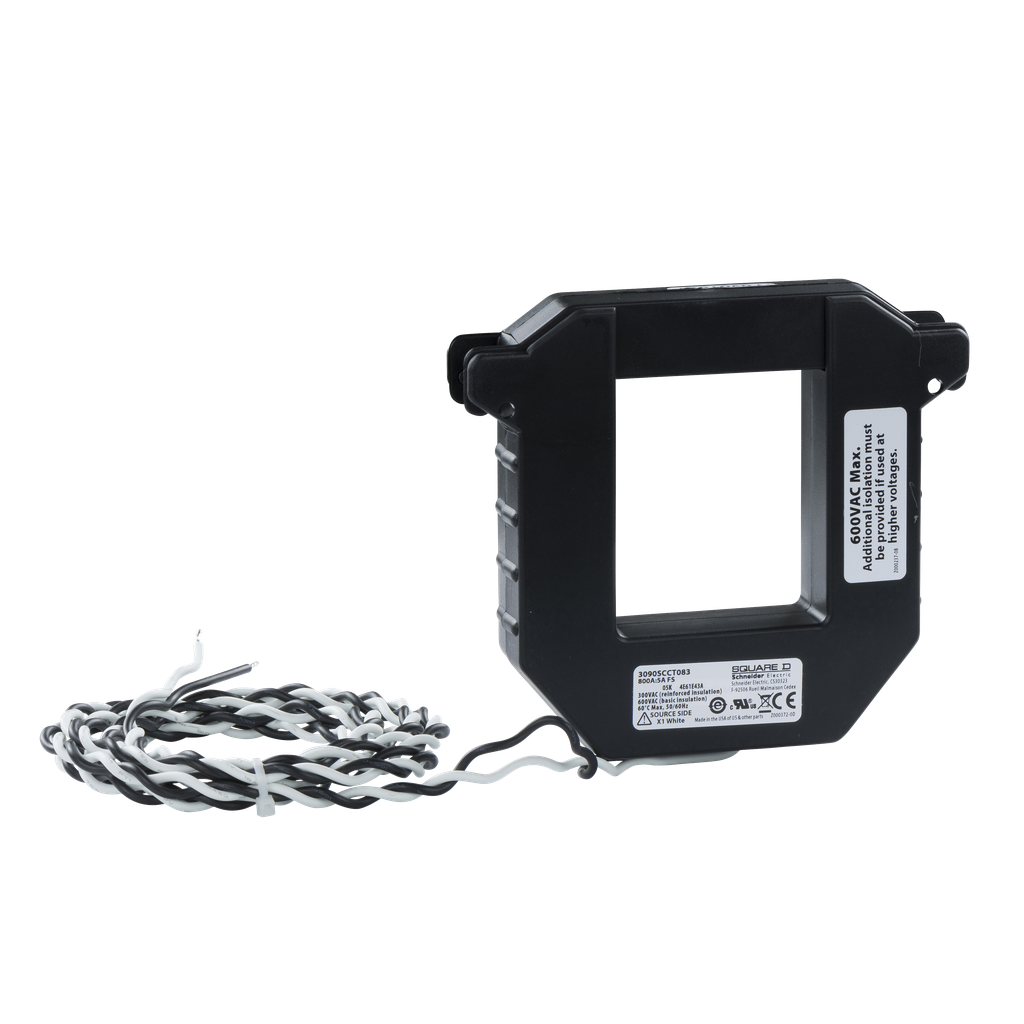

Square D - PowerLogic 3090 SCCT - split core CT - 800/5 A - size 3 - 12.5 VA
This current transformer, has a line rated current of 0800 A and a secondary current rating of 5 A. Size type 3 with core opening of 2.45 inches by 2.89 inches. Compatible with PowerLogic family of meters, and Acti 9 energy meters. Burden and accuracy class as follows class 1 maximum power 12.5 VA.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Accessory / Separate Part Category | measurement accessory |
|---|---|
| Product Or Component Type | current transformer |
| Range | PowerLogic |
| Warranty | 18 months |
| Electrical Connection | 1.8 m AWG 18 flying leads |
| Network Frequency | 50/60 Hz |
| Secondary Current | 5 A |
| Measurement Accuracy | 1 % full scale |
| Current Transformer Ratio | 800/5 |
| Width |
|
| Height |
|
| Network Type | AC |
| Range Compatibility |
|
| Primary Operational Current | 800 A |
| Current Transformer Type | split core |
| Insulation |
|
| Depth | 29 mm |
| Mounting Location | indoor use only |
| Secondary Power | 12.5 VA |
| China Rohs Regulation | X |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Toxic Heavy Metal Free | Yes |
| Eu Rohs Directive | Compliant |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| Ambient Air Temperature For Operation | -15-60 °C |
| Ambient Air Temperature For Storage | -40-70 °C |
| Relative Humidity | 0-95 % non-condensing |
| Standards |
|
| Pollution Degree | 2 |
| Operating Altitude | <= 9842.52 ft (3000 m) |
| Installation Category | III |
