29349

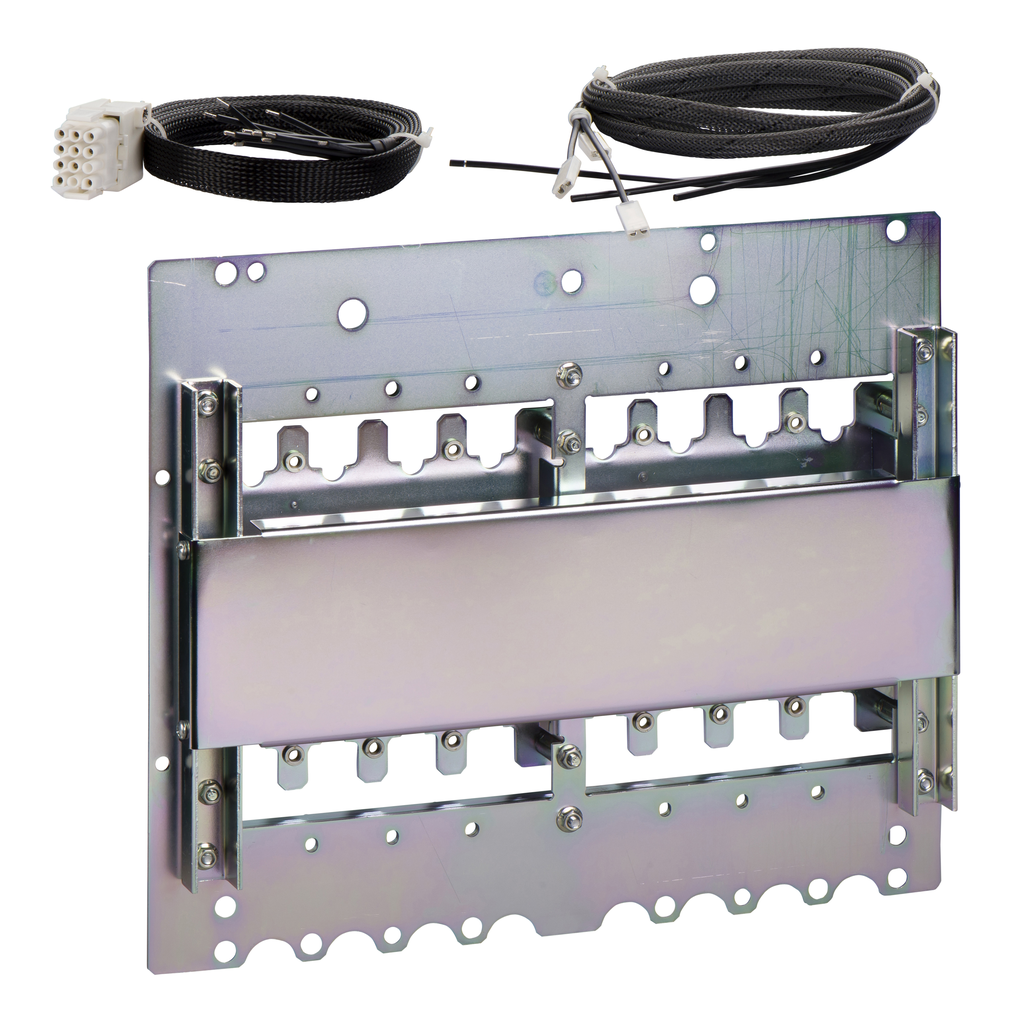

mechanical interlocking, TransferPacT interlock accessory for ComPacT NSX100…250
It is a mechanical interlocking system for two Compact NSX 100/160/250 devices with a base plate. The authorized positions are one device OFF (closed) and the other ON (opened), or the two devices OFF (closed). Interlocking is carried out on the base plate by a mechanism located behind the devices. The base plate can be installed horizontally or vertically on a mounting rail.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Country of Origin | United States |
|---|---|
| Range Of Product | ComPact NSX100...250 |
| Range Compatibility |
|
| Accessory / Separate Part Category | interlocking accessory |
| Product Or Component Type | plate |
| Range | ComPact |
| Device Application | interlocking |
| [Us] Rated Supply Voltage |
|
| Warranty | 18 months |
| Range Compatibility | Compact NSX |
| Product Compatibility | Compact NSX100...250 |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Eu Rohs Directive | Compliant with Exemptions |
Documents
- TransferPacT IVE - Electrical Interlocking Unit - Instruction Sheet - TransferPacT-IVE-Unit-Instruction-Sheet-51201201AA-15 (pdf)
- Remote Transfert Switching (RTSE) - 00999531A-03 (pdf)
- Spare wiring for transfer switching equipement - Instruction Sheet - 00999173A-02 (pdf)
- Spec Sheet
- Catalogue Compact NSX & NSXm circuit breakers and switch disconnectors from 16 to 630A up to 690V - LVPED217032EN (pdf)
- ComPacT NSX & NSXm Circuit Breakers and Switch Disconnectors from 16 to 630A up to 690V - May 2024 - LVPED221001EN (pdf)
- TRANSFERPACT CHANGOVER CATALOG - LVPED216028EN-TransferPact_2024-08-15 (pdf)
