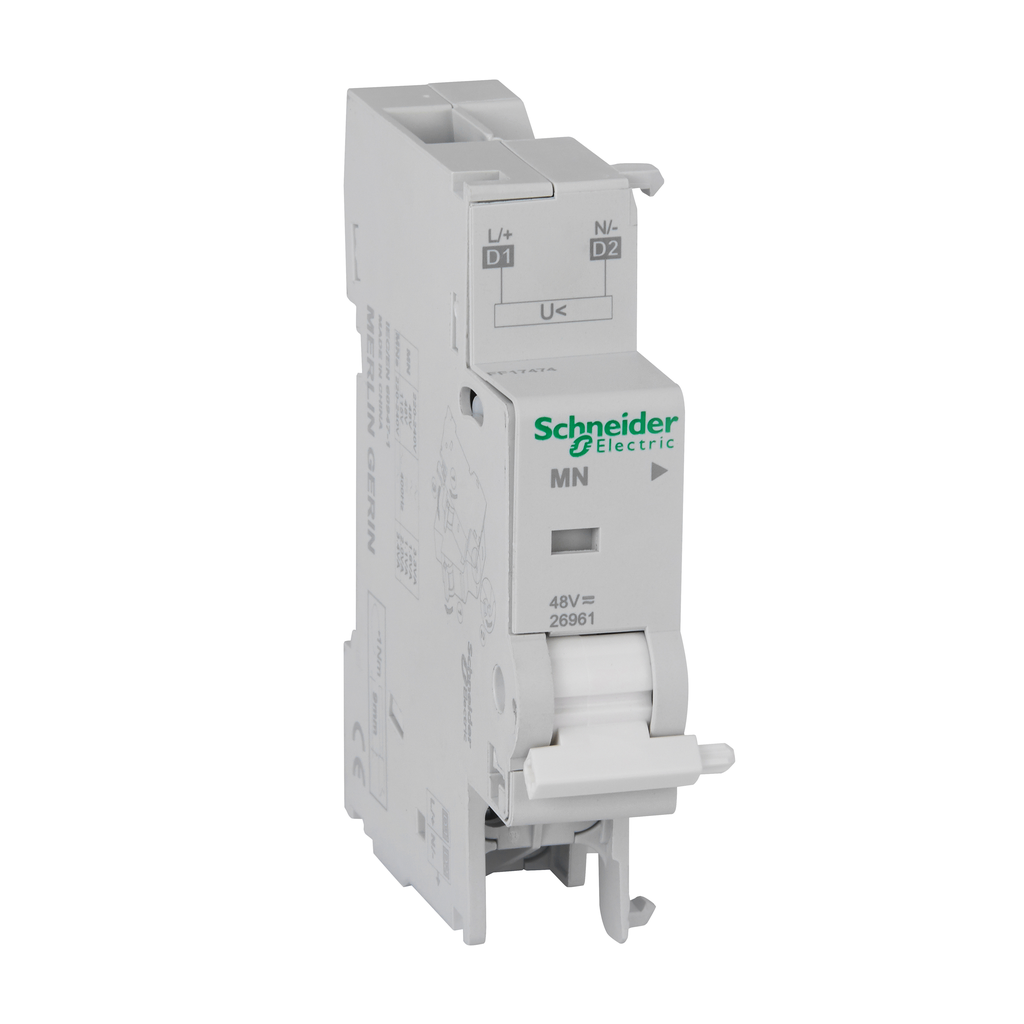

26961 - voltage release - MN - 48 V AC - Royal Wholesale Electric Suppliers

26961

Add to Quote Catalogue

Product Certifications	ASEFA LCIE KEMA ASTA
Ambient Air Temperature For Operation	-25-50 °C
Standards	EN/IEC 60947-1
Tropicalisation	2 EN/IEC 60947-5-1
Ambient Air Temperature For Storage	-40-85 °C
Relative Humidity	95-95 % 55-55 °C
Warranty	18 months
Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP1305023
Sustainable Offer Status	Green Premium product
Weee	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation	Product out of China RoHS scope. Substance declaration for your information.
Circularity Profile	ENVEOLI1305023
Eu Rohs Directive	Compliant
Height	82.5 mm
Mounting Support	35 mm symmetrical DIN rail
Range Compatibility	Multi 9 Multi9 C60 Multi 9 Multi9 N40 Acti 9 Acti9 iDPN
Wire Stripping Length	9 mm
Connections - Terminals	clamp terminal - 1 2.5-2.5 mm² - flexible clamp terminal - 1 2.5-2.5 mm² - rigid clamp terminal - 2 1.5-1.5 mm² - flexible clamp terminal - 2 1.5-1.5 mm² - rigid
Mounting Mode	fixed
Local Signalling	action indicator
Width	18 mm
Depth	68 mm
Tightening Torque	1-1 N.m
Country of Origin	Belgium
Width	18 mm
Height	82.5 mm
[Uc] Control Circuit Voltage	48 V AC 50/60 Hz 48 V DC
9 Mm Pitches	2
Product Or Component Type	undervoltage release
Range	Multi9
Control Type	standard
Device Short Name	MN
