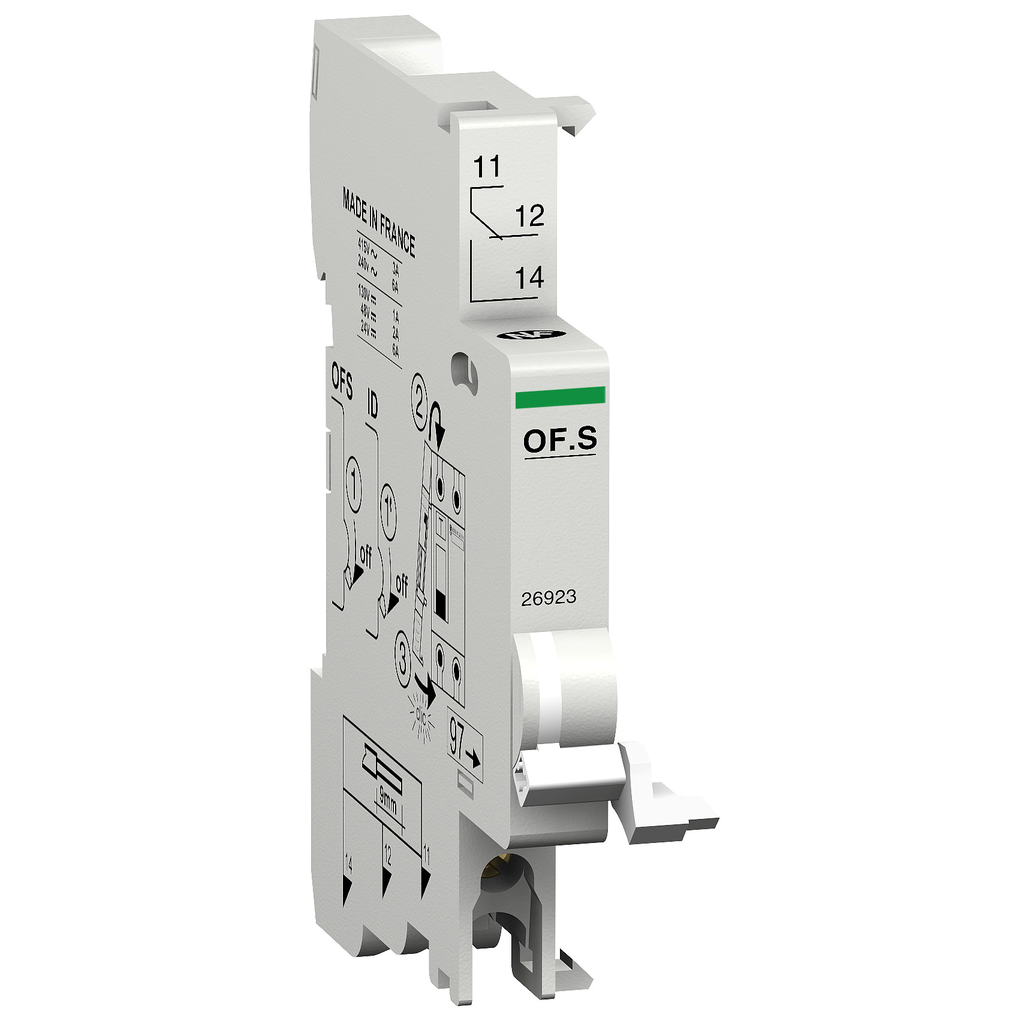

26923 - Auxiliary contact, Multi9, 1C/O, 1A to 6A, 220VAC to 415VAC, 24VDC to 130VDC, top connection, for RCCB only

26923

This Multi9 auxiliary contact is an open/close contact (OC). It is fixed on DIN rail. The In rated current is 6A at 240VAC with a 50/60Hz frequency.

Add to Quote Catalogue

Product Certifications	NEMKO DEMKO SEMKO CEBEC FIMKO
Ambient Air Temperature For Operation	-25-50 °C
Standards	EN/IEC 60947-5-1 EN 62019-2
Tropicalisation	2 EN/IEC 60947-5-1
Ip Degree Of Protection	IP20 conforming to EN/IEC 60947-5-1
Pollution Degree	3 EN/IEC 60947-5-1
Ambient Air Temperature For Storage	-40-85 °C
Relative Humidity	95-95 % 55-55 °C
Warranty	18 months
Rohs Exemption Information	Yes
Mercury Free	Yes
Toxic Heavy Metal Free	Yes
Weee	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation	Pro-active China RoHS declaration (out of China RoHS legal scope)
Circularity Profile	N/A
Eu Rohs Directive	Compliant
Height	84 mm
Mounting Support	DIN rail
Comb Busbar And Distribution Block Compatibility	top YES
Connections - Terminals	clamp terminal2 1.5-1.5 mm² - flexible clamp terminal2 1.5-1.5 mm² - rigid clamp terminal1 0.5-2.5 mm² - flexible clamp terminal1 0.5-2.5 mm² - rigid
Wire Stripping Length	9 mm
Mounting Mode	fixed
Width	9 mm
Depth	73 mm
Tightening Torque	1-1 N.m
Country of Origin	Spain
Width	9 mm
Height	84 mm
9 Mm Pitches	1
Product Or Component Type	OC contact
Range	Multi9
Signal Contacts Composition	1 C/O
Line Rated Current	AC-12 3-3 A at 380...415 V, AC 50/60 Hz AC-12 6-6 A at 220...240 V, AC 50/60 Hz DC-12 1-1 A at 130 V, DC DC-12 1.5-1.5 A at 60 V, DC DC-12 2-2 A at 48 V, DC DC-12 6-6 A at 24 V, DC
Device Short Name	OFS
