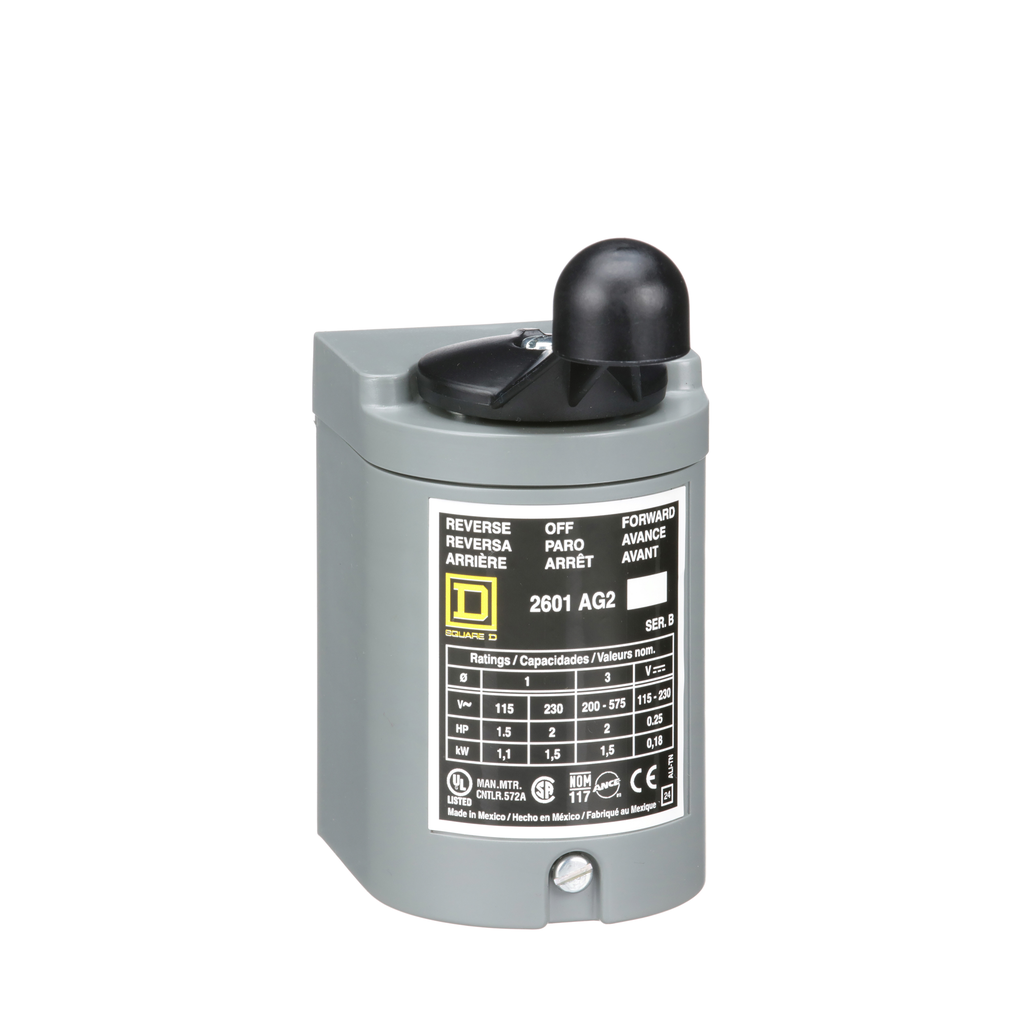

2601AG2
Switch, reversing drum, 2 HP at 230 VAC single phase, 2 HP at 575 VAC polyphase, handle operated, NEMA 1 enclosure
2601 reversing drum switches are designed to start and reverse motors by connecting them directly across the line. The devices can be used with squirrel cage and single phase motors designed for reversing service. Can be used with AC or DC motors. Drum switches are field convertible from maintained to momentary operation. A variety of enclosures are available. This device has a NEMA 1 general purpose enclosure. Drum switches are UL listed and CSA certified for global applications.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Certifications |
|
|---|---|
| Height | 5.38 in |
| Range Of Product | A |
| Net Weight | 0.61 kg |
| Electrical Connection | screw-clamp terminals |
| Width | 2.68 in |
| Depth | 4.61 in |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Eu Rohs Directive | Not compliant |
| Country of Origin | Mexico |
| Width | 2.68 in |
| Height | 5.38 in |
| Weight | 0.61 kg |
| Maximum Horse Power Rating |
|
| Product Or Component Type | Reversing Drum Switch |
| Nema Degree Of Protection | NEMA 1 |
| Poles Description | 3P |
| [Ue] Rated Operational Voltage |
|
| Warranty | 18 months |
