Manual starter, integral horsepower, NEMA M1, 600VAC, 3 pole, 10HP at 380/575VAC, 3 phase, no indicator, NEMA 12

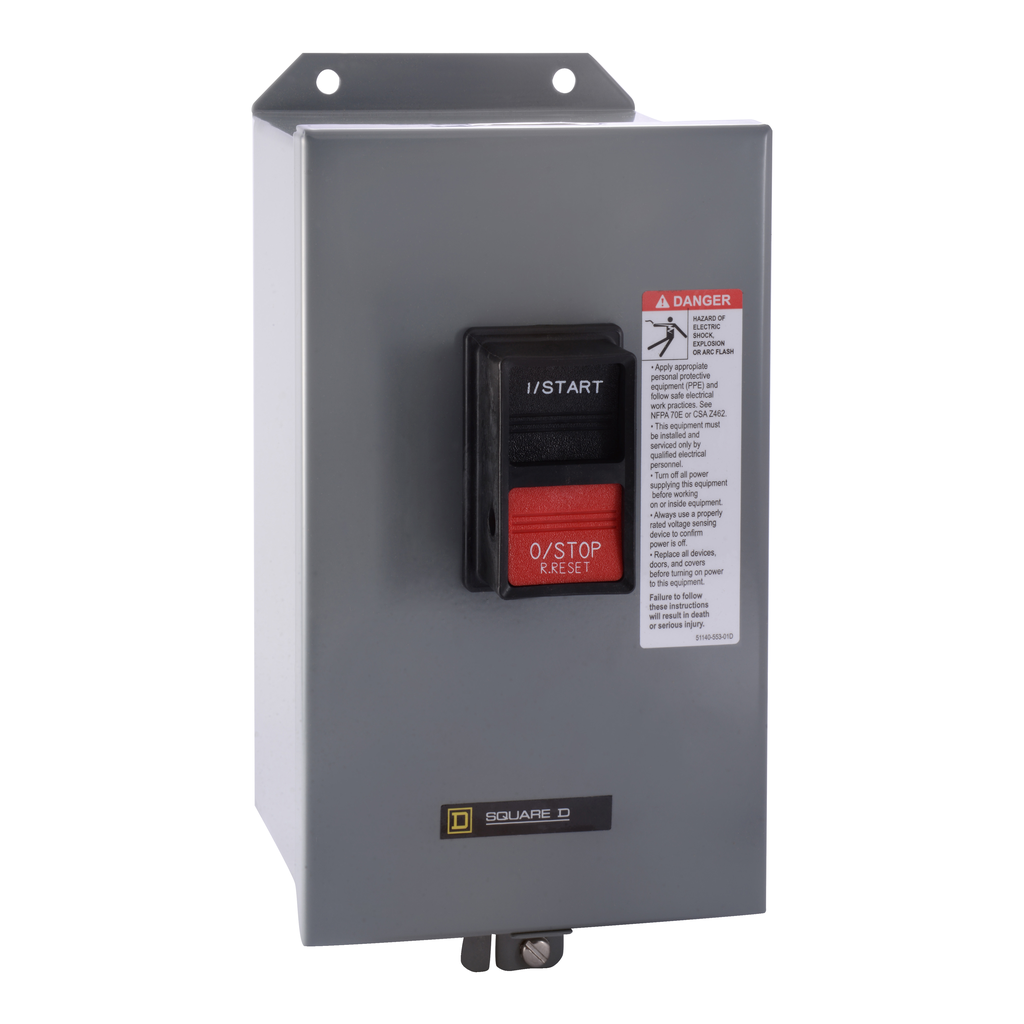

2510M and T integral horsepower manual motor starters provide overload protection and On Off control for small AC motors. These non-reversing integral horsepower manual starters are used in a variety of industrial and commercial installations. Typical applications include fans, conveyors, pumps, and small machine tools. The proper thermal unit must be selected and ordered separately to provide proper overload protection for the motor. This NEMA Size M-1 three pole starter is rated for 7.5 HP at 200-230 VAC and 10 HP at 380-575 VAC three phase. Three melting alloy thermal units are used with this manual starter to sense over current conditions. These thermal units are ordered separately to match motor data. The pressure wire clamp terminals will accept 14 to 8 AWG copper wire. This starter has no pilot light indicator. A NEMA 12 dusttight and driptight industrial use enclosure is used to protect this integral horsepower manual starter. This is a painted sheet steel enclosure. Enclosure is 10.92 inches tall, 5.78 inches wide and 5.76 inches deep. 2510M integral horsepower starters are UL listed and CSA certified.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Certifications |
|
|---|---|
| Nema Degree Of Protection | NEMA 12 painted sheet steel |
| Warranty | 18 months |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Pvc Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Eu Rohs Directive | Compliant with Exemptions |
| Thermal Overload Type | melting alloy |
| Height | 10.92 in |
| Auxiliary Contact Composition | without |
| Maximum Horse Power Rating |
|
| Control Type | push-button |
| Motor Starter Type | non reversing |
| Local Signalling | no indicator |
| Number Of Thermal Units Required | 3 |
| Poles Description | 3P |
| Electrical Connection | pressure wire clamp |
| Awg Gauge | AWG 14...AWG 8 copper |
| Width | 5.78 in |
| Depth | 5.76 in |
| [Ue] Rated Operational Voltage | 600 V AC |
| Country of Origin | Mexico |
| Width | 5.78 in |
| Height | 10.92 in |
| Range Of Product | M |
| Nema Size | M-1 |
| Product Or Component Type | Manual Starter |
