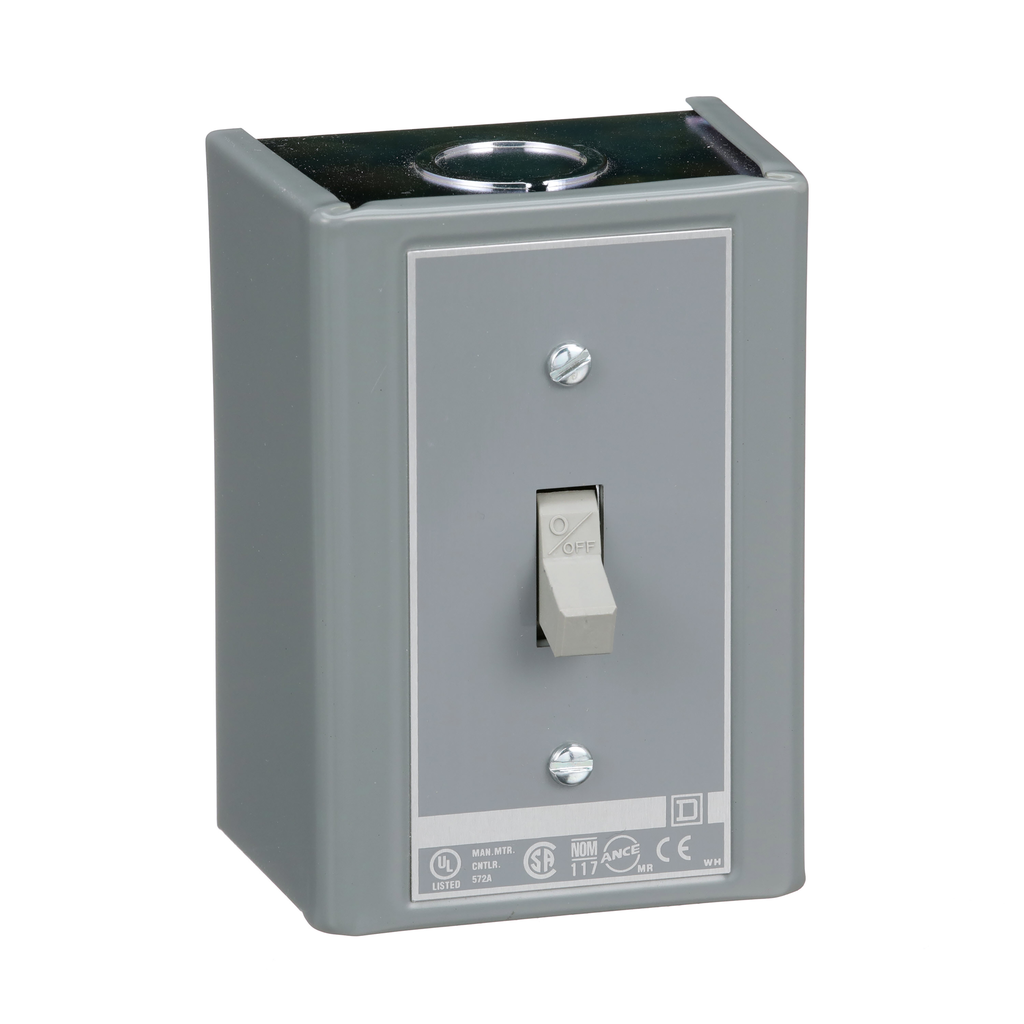

2510KGJ2 - Switch, manual, 30A, 3 pole, 10 HP at 575 VAC, three phase, toggle operated, no indicator, NEMA 1 jumbo enclosure

2510KGJ2

Switch, manual, 30A, 3 pole, 10 HP at 575 VAC, three phase, toggle operated, no indicator, NEMA 1 jumbo enclosure

2510K manual motor switches are Intended for industrial, commercial and residential applications. These switches are for applications where overload protection is not required or is provided separately. Manual motor switches provide manual On Off control of small motors. Units are UL Listed, CSA Certified and CE Marked for global applications. This nonreversing manual switches is toggle operated. The maximum operational voltage is 600 VAC and 250 VDC. This three pole switch is rated for 2 HP at 115VAC, 7.5 HP at 230VAC, 10 HP at 460VAC, 10 HP at 600VAC single phase, 1 HP at 90 VDC, 2 HP at 115 VDC and 1.5 HP at 230 VDC and 30A continuous. The screw clamp terminals will accept 14 to 10 AWG copper wire. This switch has no pilot light indicator. This NEMA 1 oversized general purpose enclosure is a surface mounting enclosure. The enclosure has has a 0.5 and 0.75 knockout on the top and bottom. The enclosure is 4.25 inches tall, 2.88 inches wide and 2.75 inches deep. This device is UL Listed and CSA certified.

Brand: Schneider Electric

Add to Quote Catalogue

Specifications

Product Certifications	UL listed file E42243 CCN NLRV CSA LR25490 class 3211 05
Nema Degree Of Protection	NEMA 1 painted sheet steel oversized
Warranty	18 months
Pvc Free	Yes
California Proposition 65	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
China Rohs Regulation	Product out of China RoHS scope. Substance declaration for your information.
Eu Rohs Directive	Not compliant
Height	4.25 in
Phase	3 phase
Control Type	toggle
Motor Starter Type	non reversing
Local Signalling	no indicator
Poles Description	3P
Electrical Connection	screw clamp terminals
Cable Entry	0.5" and 0.75" knock-outs (top and bottom)
Line Rated Current	30 A
Awg Gauge	AWG 14...AWG 10 copper
Width	2.88 in
Depth	2.75 in
Maximum Horse Power Rating	2 hp 115 V AC 1 hp 90 V DC 2 hp 115 V DC 1.5 hp 230 V DC 7.5 hp 230 V AC 10 hp 460 V AC 10 hp 575 V AC
[Ue] Rated Operational Voltage	600 V AC 230 V DC
Country of Origin	Mexico
Width	2.88 in
Height	4.25 in
Range Of Product	K
Product Or Component Type	Single Unit Manual Switch

Switch, manual, 30A, 3 pole, 10 HP at 575 VAC, three phase, toggle operated, no indicator, NEMA 1 jumbo enclosure
