Manual Starter, fractional horsepower, 16A, 2 poles, 1 HP at 277 VAC, toggle w/guard, no indicator, NEMA 1 enclosure

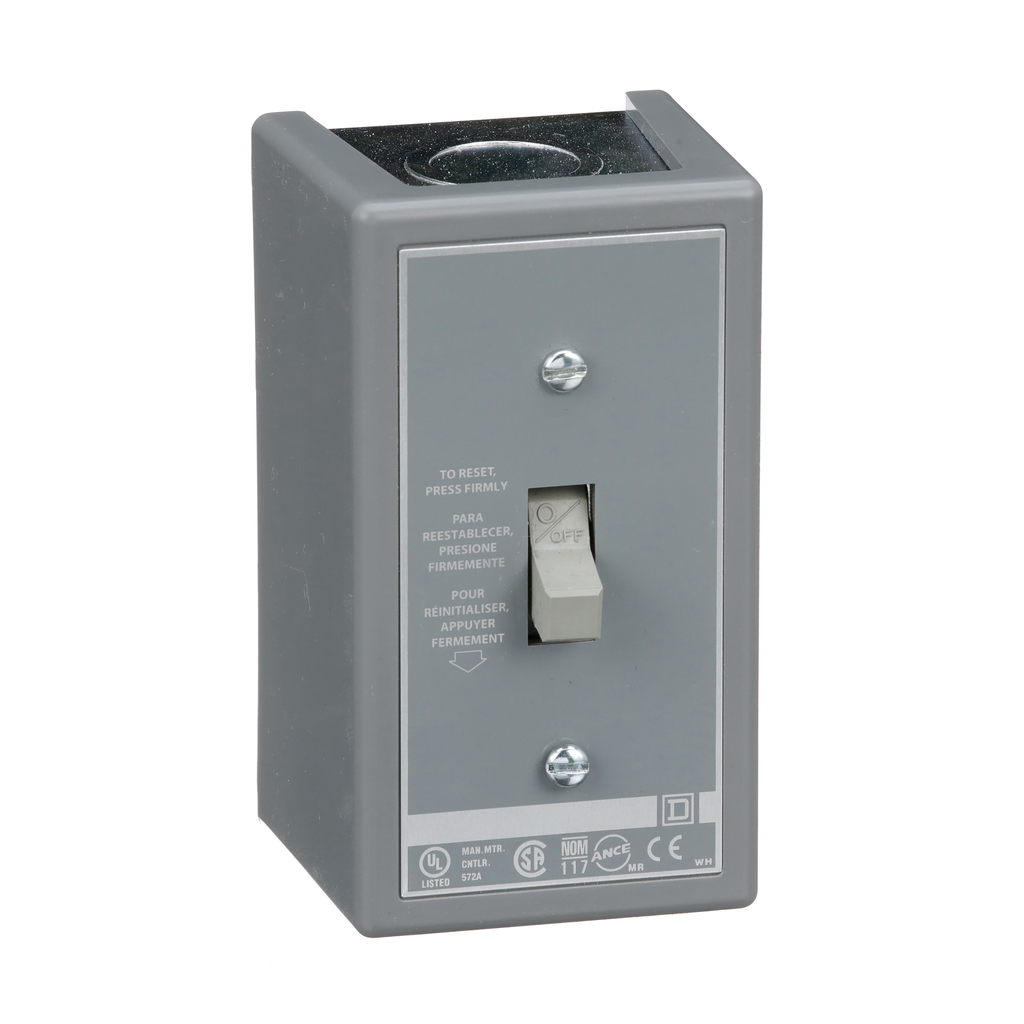

2510F fractional horsepower non-reversing manual starters provides manual On-Off control with overload protection for small motors. Designed for fractional single phase motors up to 1 HP. The toggle operator provides an easy manual On-Off control of small motors. Two-pole starters can also be used with DC motors rated up to 0.75 hp. Melting alloy thermal units are used with this manual starter to sense over current conditions. Overload thermal unit is ordered separately to match motor data. This 2 pole nonreversing manual starter has a 16A current rating. Starter has a 1 HP at 115 VAC, 2 HP at 230 VAC, 1 HP at 277 VAC and 0.75 HP at 115 and 230 VDC ratings. This NEMA 1 general purpose enclosure is a surface mounting enclosure. This manual starter is 4.25 inches tall, 2.44 inches wide and 2.88 inches deep. This device is without a pilot light indicator. Manual starter has a handle guard that can be used for lock off. Manual starter is UL listed and CSA certified.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Certifications |
|
|---|---|
| Nema Degree Of Protection | NEMA 1 Plastic standard size |
| Warranty | 18 months |
| Pvc Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Eu Rohs Directive | Not compliant |
| Reset | manual |
| Height | 4.25 in |
| Phase | 1 phase |
| Control Type | toggle switch (with lock-off) |
| Motor Starter Type | non reversing |
| Poles Description | 2P |
| Electrical Connection | screw clamp terminals |
| Cable Entry | 0.5" and 0.75" knock-outs (top and bottom) |
| Line Rated Current | 16 A |
| Local Signalling | no indicator |
| Awg Gauge | AWG 14...AWG 12 copper |
| Width | 2.44 in |
| Depth | 2.88 in |
| Maximum Horse Power Rating |
|
| [Ue] Rated Operational Voltage |
|
| Country of Origin | United States |
| Width | 2.44 in |
| Height | 4.25 in |
| Thermal Overload Type | melting alloy |
| Range Of Product | F |
| Product Or Component Type | Single Unit Manual Starter |
