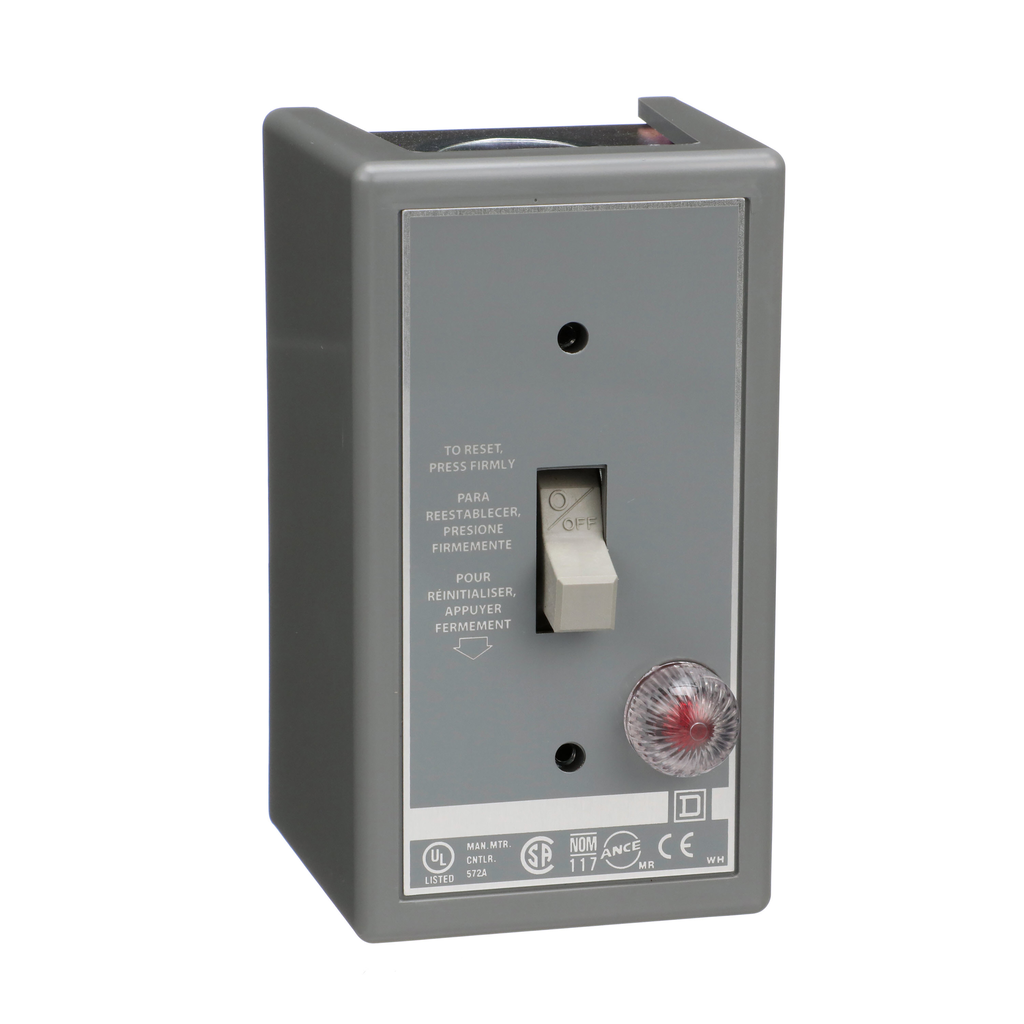

Square D Type F fractional motor manual starter provide overload protection and manual On-Off control for small single phase AC motors. Enclosure is sheet steel with wrap around thermoplastic cover for convenience of wiring. Overload heater element is ordered separately to match motor data. Units are UL Listed, CSA Certified and CE Marked for global applications. Fractional Motor Starters. Designed for fractional single phase motors up to 1 HP. Provides easy manual “On-Off” control of small motors. Provide melting alloy overload protection for motors. Intended for industrial and commercial applications. Enclosed or open versions to suit most application environments. Can be easily installed. UL, CSA and CE approvals.
Brand: Schneider Electric
Add to Quote CatalogueThermal Overload Type | melting alloy |
---|---|
Range Of Product | F |
Product Or Component Type | Single Unit Manual Starter |
Warranty | 18 months |
Motor Starter Type | non reversing |
Reset | manual |
Height | 4.25 in |
Poles Description | 2P |
Electrical Connection | screw clamp terminals |
Cable Entry | 0.5" and 0.75" knock-outs (top and bottom) |
Line Rated Current | 16 A |
Local Signalling | red indicator |
Awg Gauge | AWG 14...AWG 12 copper |
Width | 2.44 in |
Depth | 2.75 in |
Maximum Horse Power Rating |
|
Phase | 1 phase |
[Ue] Rated Operational Voltage |
|
Control Type | toggle switch |
China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
Pvc Free | Yes |
Eu Rohs Directive | Not compliant |
Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
Product Certifications |
|
Nema Degree Of Protection | NEMA 1 Plastic standard size |
