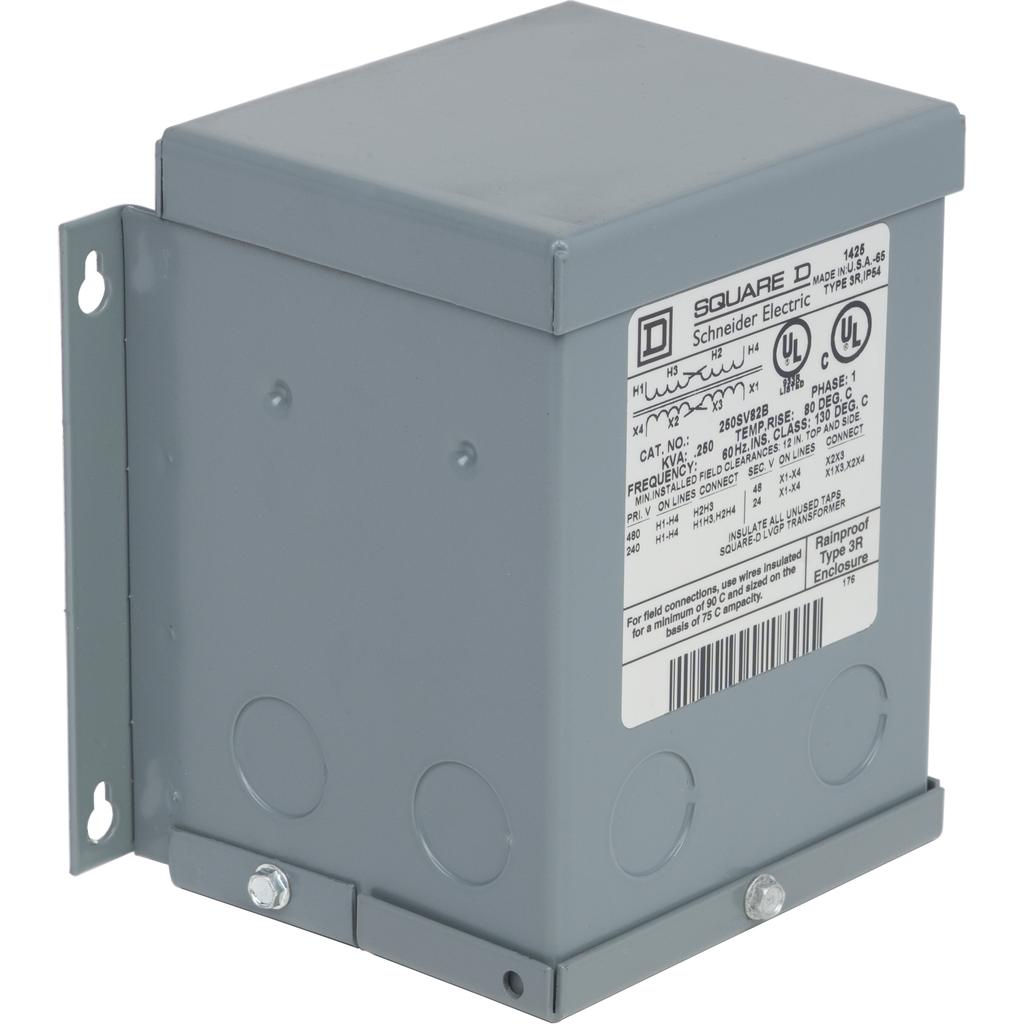

250SV82B
Transformer, buck boost, encapsulated, 0.25kVA, 1 phase, 240x480V primary, 24/48V secondary, NEMA 3R, 80C rise
A Buck and Boost Transformer can be configured into a autotransformer or isolating transformer. The enclosure has no openings, making resin-filled transformers ideal for use indoor or outdoor where airborne particles or contaminants could be detrimental to operation. The core-and-coil assembly is embedded in an epoxy resin compound and wall mounted for increased protection. SE leads the industry in suppling low voltage general purpose transformers and provide an 18 month warranty on their product. Their electrical characteristics have been vetted and verified to adhere to the data sheet by the Underwriters Laboratories (UL).
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Rohs Exemption Information | Yes |
|---|---|
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1407010 |
| Sustainable Offer Status | Green Premium product |
| Pvc Free | Yes |
| Toxic Heavy Metal Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Phenyl glycidyl ether, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Circularity Profile | N/A |
| Eu Rohs Directive | Compliant |
| Country of Origin | United States |
| Primary Voltage | 240 x 480 V |
| Secondary Voltage | 24/48 V |
| Temperature Rise | 80 °C |
| Product Or Component Type | Buck and Boost Transformer |
| Rated Power In Va | 0.25 kVA |
| Nema Degree Of Protection | NEMA 3R |
| Box Number | 4A |
| Insulation Temperature | 130 °C |
| Warranty | 18 months |
