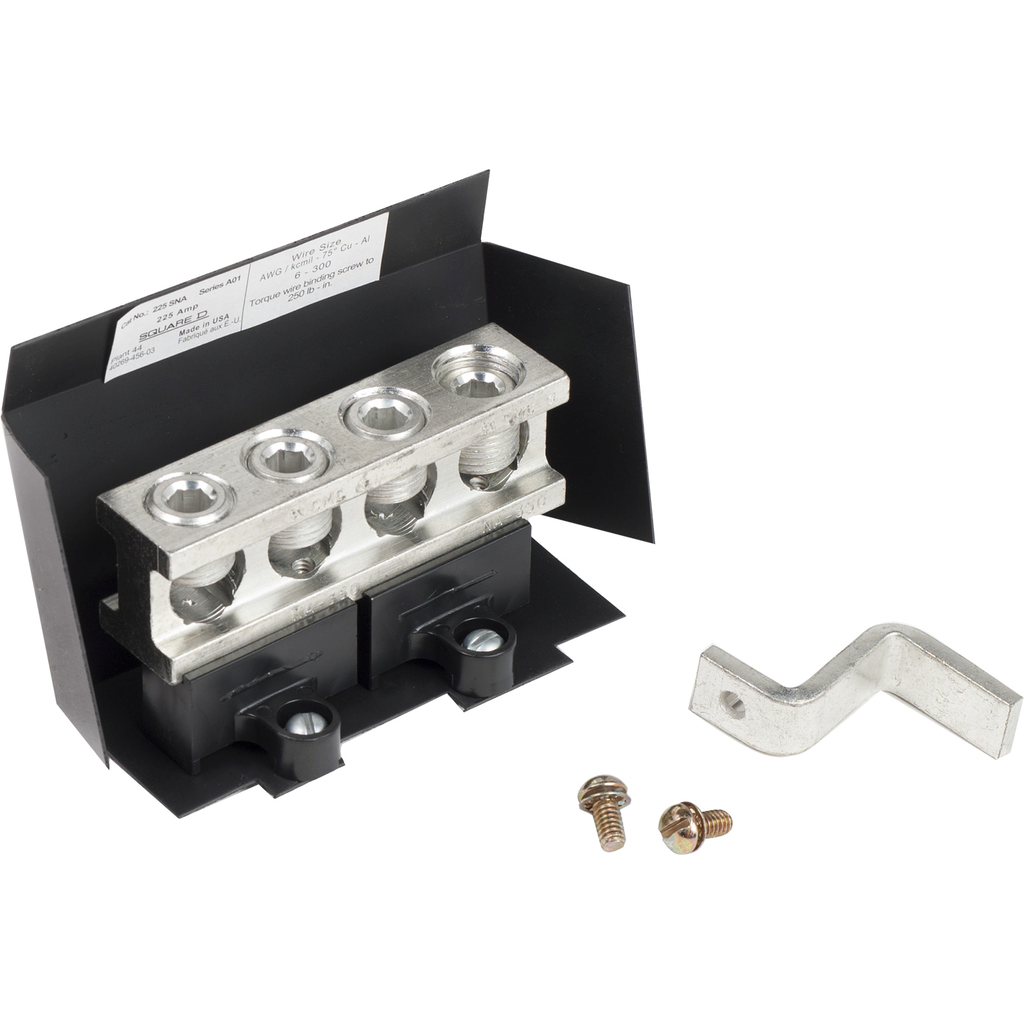

225SNA
Safety switch solid neutral assembly, Square D, copper/aluminium, max 200A E rated, 3 pole
Specifications
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
|---|---|
| Circularity Profile | N/A |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1304031 |
| Sustainable Offer Status | Green Premium product |
| Eu Rohs Directive | Compliant with Exemptions |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Tightening Torque | 250 lbf.in, AWG 6...300 kcmil, copper or aluminium |
| Line Rated Current | 200 A E |
| Awg Gauge | AWG 6...300 kcmil copper or aluminium |
| Number Of Poles | 3 |
| Country of Origin | United States |
| Series Name | heavy duty |
| Range Of Product | Square D |
| Product Or Component Type | safety switch solid neutral assembly |
| Warranty | 18 months |
Documents
- SN03, SN03C, CSN03, and CSN03C Neutral Assembly Installation Instructions - 40272-257-03 (pdf)
- Neutral Assembly Installation and Replacement Instructions - 40273-483-03 (pdf)
- Square D Safety Switches Brochure - 3100BR9801 (pdf)
- Spec Sheet
- Square D Enclosed Safety Switches Catalog - 3100CT1602 (pdf)
- Digest Catalog 03: Safety Switches - 0100CT1901_SEC-03 (pdf)
- Circuit Breakers: Section 7 - Digest 179 (2024) - Circuit-Breakers-Digest-Catalog-0100CT2401-SEC-07 (pdf)
