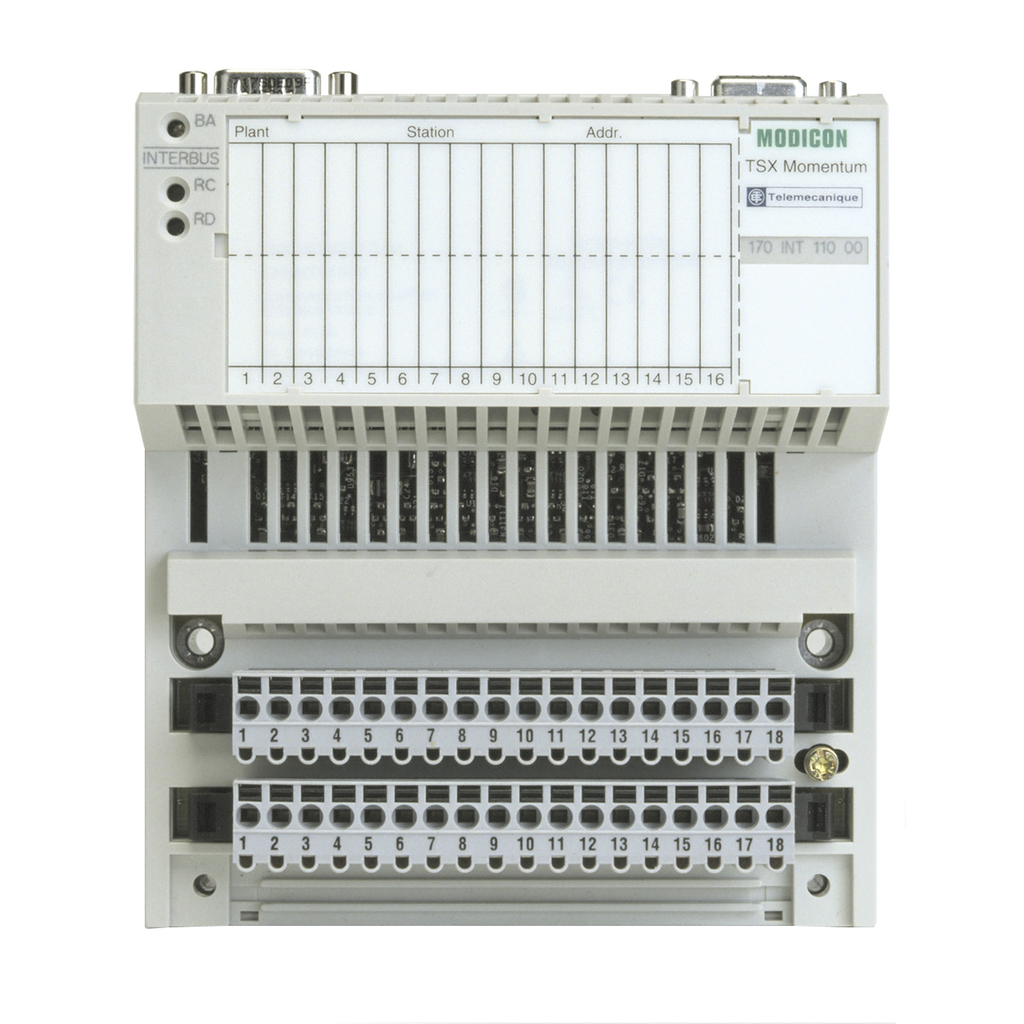

Modicon Momentum - Interbus communication adaptor - twisted pair
This adaptor is part of the Modicon Momentum range, an offer of controller and IP20 monoblock I/Os for distributed control architecture. The Interbus communication adaptor supports ring topology. It offers twisted pair cable transmission support medium and 500kbps data transmission rate. The adaptor is accessible through the continuous shift register and master/slave method. It is furnished with 2 D-sub (DE-09) connectors for connecting Interbus. It is an IP20 rated product. It weighs 0.07kg. The main application of this module is infrastructures and energy, material handling, simple machine control. This product is certified by CE, FM Class 1 Division 2, CSA and UL. Momentum is a flexible, modular family of components that easily snaps together and can be configured for a wide range of distributed I/O and control applications. System with 4 fundamental components that easily snap together in various combinations to form versatile control systems or sub-systems.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Range Of Product | Modicon Momentum automation platform |
|---|---|
| Product Or Component Type | Interbus communication adaptor |
| Transmission Support Medium | twisted pair |
| Communication Port Protocol | Interbus generation SUPI 2 |
| Method Of Access |
|
| Transmission Rate | 500 kbit/s |
| Warranty | 18 months |
| Maximum Cable Distance Between Devices |
|
| Electrical Connection | 2 connectors SUB-D 9 for connecting Interbus |
| Number Of Devices Per Segment | 0-254 |
| Supply | from I/O base |
| Marking | CE |
| Fail State | fail safe |
| Net Weight | 0.07 kg |
| Control Parameter | CRC-16 |
| Topology | ring |
| Local Signalling |
|
| Module Format | standard |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | X |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Product Certifications |
|
| Ambient Air Temperature For Operation | 0-60 °C |
| Resistance To Electromagnetic Fields | 10 V/m 80...1000 MHz IEC 801-3 |
| Ambient Air Temperature For Storage | -40-85 °C |
| Relative Humidity | 95-95 % without condensation |
| Resistance To Electrostatic Discharge |
|
| Protective Treatment | TC |
| Ip Degree Of Protection | IP20 |
| Operating Altitude | <= 16404.2 ft (5000 m) |
